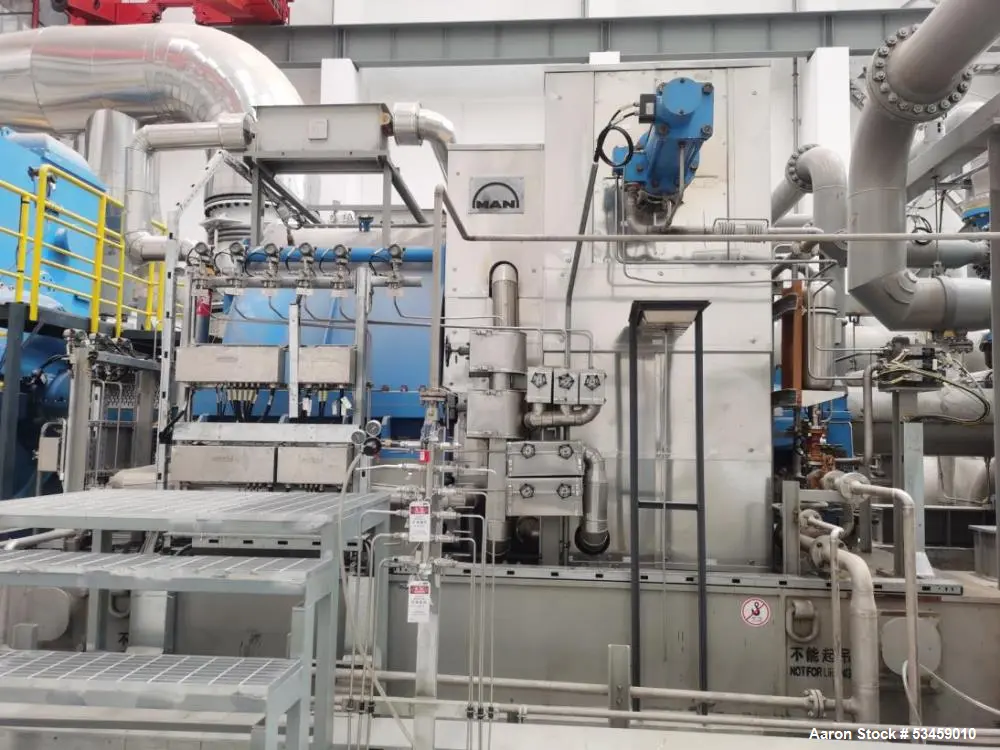

Used MAN Diesel & Turbo SE DK080/250R Diesel Steam Turbine – 40,554 kW

Used MAN Diesel & Turbo SE DK080/250R Diesel Steam Turbine 40,554 kW; speed 4648 rpm; Inlet pressure Normal/Max 97/101 bar, (Normal/Max 1455/1515 PSI). Inlet Temperature Normal/Max 525/535 ?; (Normal/Max 977/995 F). includes HTAC extractor, Sulter Dalian Condensate Pump, and additional infrastructure. New year 2018, installed in 2020, started up in production in October 2020. Was taken out of service in July 2022, 13993 hours in service. Overall dimensions 5900 mm x 5330 mm x 5170 mm high (192" x 173" x 168" high). Weight 100 tonnes (45454 lbs.). Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer Information

Brand: MAN Diesel & Turbo SE

Model: DK080/250R

Manufactured Year: 2018

Installed: 2020

Operational Start: October 2020

Taken Out of Service: July 2022

Total Operating Hours: 13,993

Description
The Used MAN Diesel & Turbo SE DK080/250R Diesel Steam Turbine is a high-capacity industrial power turbine with a 40,554 kW output, designed for high-pressure and high-temperature steam applications.
Operating at a speed of 4,648 RPM, this turbine supports an inlet pressure of 97/101 bar (1,455/1,515 PSI normal/max) and an inlet temperature of 525/535°C (977/995°F normal/max).
The unit includes essential auxiliary equipment:

HTAC Extractor
Sulter Dalian Condensate Pump
Additional Infrastructure

Originally manufactured in 2018, the turbine was installed and commissioned in 2020 and was operational until July 2022, accumulating 13,993 total hours of service.
With overall dimensions of 5,900 mm x 5,330 mm x 5,170 mm (H), this unit is suitable for large-scale industrial applications.
Specifications

Power Output: 40,554 kW

Speed: 4,648 RPM

Inlet Pressure:

Normal: 97 bar (1,455 PSI)

Maximum: 101 bar (1,515 PSI)

Inlet Temperature:

Normal: 525°C (977°F)

Maximum: 535°C (995°F)

Total Operating Hours: 13,993

Auxiliary Equipment Included:

HTAC Extractor
Sulter Dalian Condensate Pump
Additional infrastructure

Overall Dimensions: 5,900 mm x 5,330 mm x 5,170 mm (H)

Applications
This MAN Diesel & Turbo steam turbine is ideal for power generation and industrial steam applications in sectors such as:

Power Plants – Steam-based power generation

Petrochemical & Refining – High-temperature steam processing

Steel & Metallurgy – Energy recovery and industrial steam use

Pulp & Paper Industry – Steam-driven production processes

Sugar & Ethanol Plants – Co-generation and energy optimization

Chemical Processing Plants – Steam turbine-driven operations
