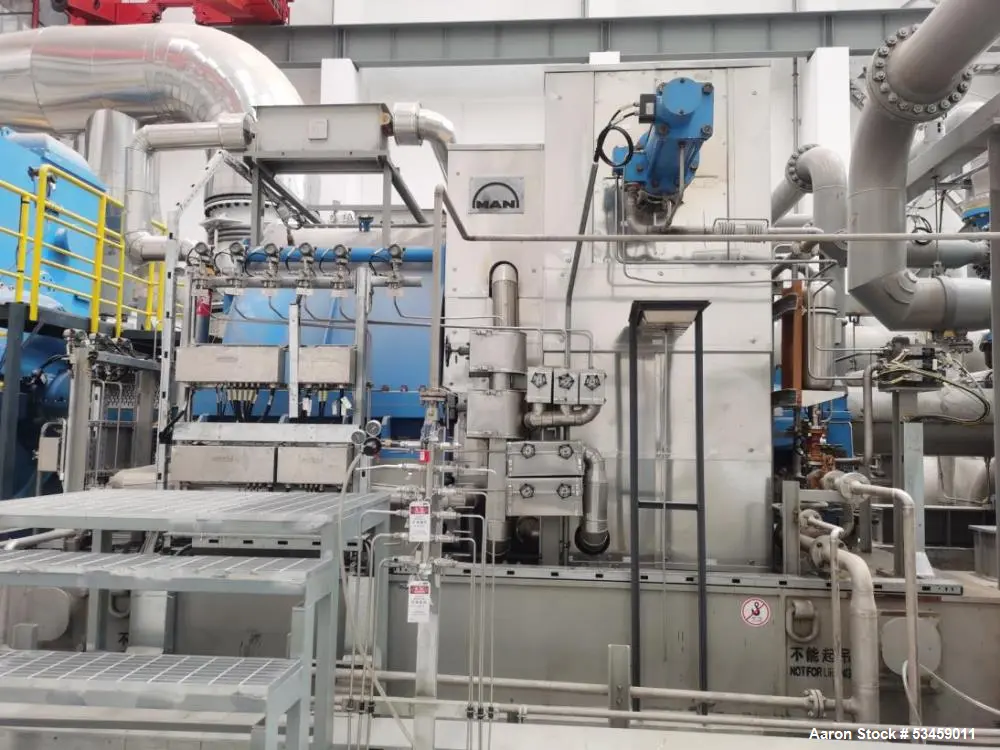

MAN Diesel & Turbo SE Model DK080/250R Diesel Steam Turbine

MAN Diesel & Turbo SE Model DK080/250R Diesel Steam Turbine 40554 KW; speed 4648 rpm; Inlet pressure Normal/Max 97/101 bar, (Normal/Max 1455/1515 PSI). Inlet Temperature Normal/Max 525/535 ?; (Normal/Max 977/995 F). includes HTAC extractor, Sulter Dalian Condensate Pump, and additional infrastructure. New year 2018, installed in 2020, started up in production in October 2020. Was taken out of service in July 2022, 13993 hours in service. Overall dimensions 5900 mm x 5330 mm x 5170 mm high (192" x 173" x 168" high). Weight 100 tonnes (45454 lbs.). Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer Information

Brand: MAN Diesel & Turbo SE

Model: DK080/250R

Manufactured Year: 2018

Installed: 2020

Operational Start: October 2020

Taken Out of Service: July 2022

Total Operating Hours: 13,993

Description
The Used MAN Diesel & Turbo SE DK080/250R Diesel Steam Turbine is a high-power industrial turbine designed for large-scale energy production and steam-driven applications. It features a 40,554 kW power output, operating at 4,648 RPM with high inlet pressure and temperature ratings.
This unit supports normal/max inlet pressure of 97/101 bar (1,455/1,515 PSI) and normal/max inlet temperature of 525/535°C (977/995°F), making it an efficient and durable solution for industrial steam applications.
Includes:

HTAC Extractor
Sulter Dalian Condensate Pump
Additional Infrastructure

With overall dimensions of 5,900 mm x 5,330 mm x 5,170 mm (H), this turbine is suited for heavy-duty industrial applications.
Specifications

Power Output: 40,554 kW

Speed: 4,648 RPM

Inlet Pressure:

Normal: 97 bar (1,455 PSI)

Maximum: 101 bar (1,515 PSI)

Inlet Temperature:

Normal: 525°C (977°F)

Maximum: 535°C (995°F)

Total Operating Hours: 13,993

Auxiliary Equipment Included:

HTAC Extractor
Sulter Dalian Condensate Pump
Additional Infrastructure

Overall Dimensions: 5,900 mm x 5,330 mm x 5,170 mm (H)

Applications
This high-capacity steam turbine is ideal for:

Power Plants – Steam-based electricity generation

Petrochemical & Refining – High-temperature steam processing

Steel & Metallurgy – Industrial power and steam-driven operations

Pulp & Paper Industry – Steam-based energy recovery

Sugar & Ethanol Plants – Co-generation and process steam applications

Chemical Processing Plants – Steam turbine-driven system
PRODUCT DETAILS

Used MAN Diesel & Turbo steam turbine
DK080/250R industrial steam turbine
40,554 kW steam turbine for sale
4,648 RPM diesel steam turbine
High-pressure steam turbine 97/101 bar
525°C/535°C industrial steam turbine
Power generation steam turbine
HTAC extractor and Sulter Dalian pump
Large-scale industrial turbine
Steam turbine with 13,993 hours of service
