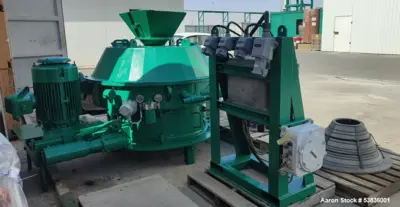

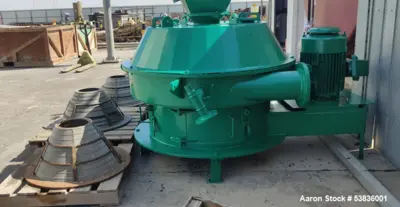

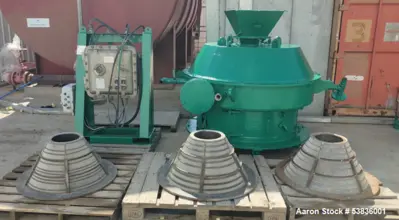

Used Elgin Screening Centrifuge, Model CSI-D3, Stainless Steel Contact Parts. Feed capacity 30 tonnes per/hr. 200-micron screen. 25 HP (18.3 kw) & 5 HP (3.7 KW) Ex motors. Complete with (1) Control panel, (1) 1322 gallon (5m2) slurry tank, (1) AHR 3x2C Slurry pump with a 15 HP Ex motor. Previously used at oil processing facility. Overall dimensions: 84" (2134 mm) L x 62" (1575 mm) W x 56" (1422 mm) H (without stand). Weight 3900 Lbs. (1.8 tonnes). Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
Used Equipment Facts About This Machine
Description
The Elgin CSI-D3 Screening Centrifuge is a high-capacity, industrial-grade solid-liquid separation system designed for efficient slurry processing in oil, chemical, and mineral industries. This centrifuge features stainless steel contact parts, ensuring durability and resistance to corrosion in demanding processing environments.
With a feed capacity of 30 tonnes per hour, a 200-micron screen, and explosion-proof motors (25 HP (18.3 kW) main motor & 5 HP (3.7 kW) auxiliary motor), this unit delivers reliable and precise separation performance. The system includes a control panel, a 1322-gallon (5m²) slurry tank, and an AHR 3x2C slurry pump with a 15 HP explosion-proof motor, making it a fully integrated solution for high-volume processing applications.
Previously used in an oil processing facility, the centrifuge is well-suited for continuous dewatering, separation, and recovery of fine solids from liquids.
Specifications
Material: Stainless Steel (Contact Parts)
Feed Capacity: 30 Tonnes per Hour
Screen Size: 200 Micron
Main Motor: 25 HP (18.3 kW) Explosion-Proof
Auxiliary Motor: 5 HP (3.7 kW) Explosion-Proof

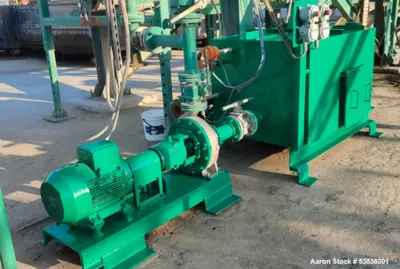

Slurry Pump: AHR 3x2C with 15 HP Explosion-Proof Motor
Slurry Tank Capacity: 1322 Gallons (5m²)
Includes:
(1) Control Panel
(1) Slurry Tank
(1) AHR 3x2C Slurry Pump
Overall Dimensions (Without Stand):
Length: 84” (2134 mm)
Width: 62” (1575 mm)
Height: 56” (1422 mm)
Weight: 3900 lbs. (1.8 Tonnes)
Previous Application: Oil Processing Facility
Applications
Oil & Gas Processing: Solids-liquid separation in oil production
Chemical Processing: Dewatering and solid-liquid separation in chemical plants
Mineral Processing & Mining: Fine particle recovery and slurry treatment
Industrial Wastewater Treatment: Removal of suspended solids
Food & Beverage Processing: Separation of solid residues from liquid products
Compatible Products & Uses
High-Capacity Slurry Processing
Fine Particle Recovery & Solid-Liquid Separation
Industrial Dewatering Applications
Oil & Chemical Industry Centrifuge Processing
Wastewater Treatment & Sludge Separation
