USED ALFA LAVAL FOODEC 209

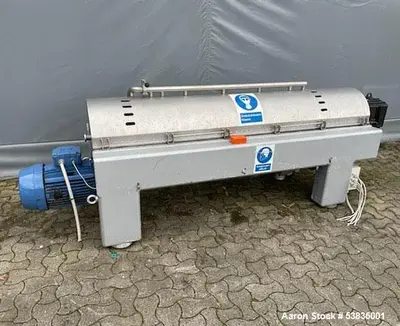

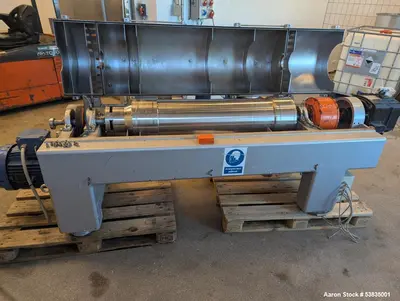

Used Alfa Laval Solid Bowl Decanter Centrifuge, Model Foodec-209, 316 stainless steel construction (product contact areas). Maximum bowl speed 4400 rpm. Maximum G force 3030. Single lead conveyor, 360 degree solids discharge ports with wear inserts, base, casing with CIP spray header, Approx. 15 kW (20hp)main drive motor, feed pipe, safety guards, gearbox. On 4 legs. Includes: Stainless steel control panel. Serial# 5120827-2006, built 2006. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Description
The Alfa Laval Foodec-209 Solid Bowl Decanter Centrifuge is a high-performance industrial separation system, designed for continuous liquid-solid separation in food, beverage, pharmaceutical, and industrial processing applications. Constructed with 316 stainless steel (product contact areas), this centrifuge ensures corrosion resistance and compliance with sanitary processing standards.
With a maximum bowl speed of 4,400 rpm and a maximum G-force of 3,030, this decanter centrifuge efficiently separates solids from liquids, providing high-quality product recovery. It features a single-lead conveyor and 360-degree solids discharge ports with wear inserts, ensuring durability and consistent performance in high-throughput operations.
Equipped with an approx. 15 kW (20 HP) main drive motor, feed pipe, safety guards, and gearbox, this unit is mounted on four legs for stability. Additionally, the centrifuge includes a stainless steel control panel for easy operation and monitoring.
The CIP (Clean-in-Place) spray header allows for efficient internal cleaning, minimizing downtime and ensuring compliance with hygiene requirements.
Specifications

Material: 316 Stainless Steel (product contact areas)

Maximum Bowl Speed: 4,400 rpm

Maximum G-Force: 3,030

Conveyor Type: Single-lead conveyor

Discharge Ports: 360-degree solids discharge with wear inserts

Cleaning System: CIP spray header

Main Drive Motor: Approx. 15 kW (20 HP)

Mounting: On 4 legs for stability

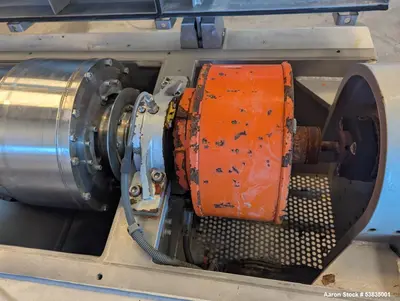

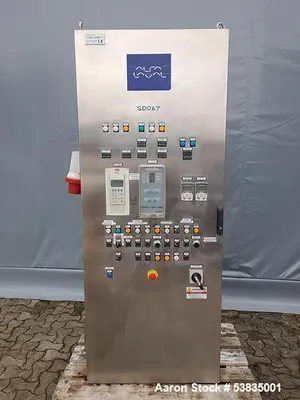

Includes: Stainless steel control panel, feed pipe, safety guards, gearbox

Condition: Used

Applications

Food & Beverage Processing: Juice, dairy, beer, wine, edible oils

Pharmaceutical & Nutraceuticals: Extraction, protein recovery, fermentation processes

Chemical & Industrial Processing: Wastewater treatment, industrial sludge separation

Oil & Fat Processing: Fish oil, palm oil, biofuels, vegetable oil refinement

Biotechnology & Bioprocessing: Biomass separation, cell harvesting

Compatible Products & Uses

Industrial Liquid-Solid Separation
High-Speed Decanting for Food and Beverage Processing
Wastewater Treatment and Sludge Dewatering
Protein and Biomass Separation for Pharmaceutical Applications
Biofuel and Edible Oil Purification
