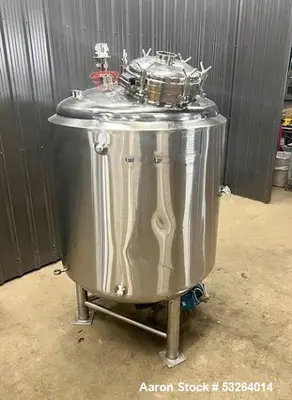

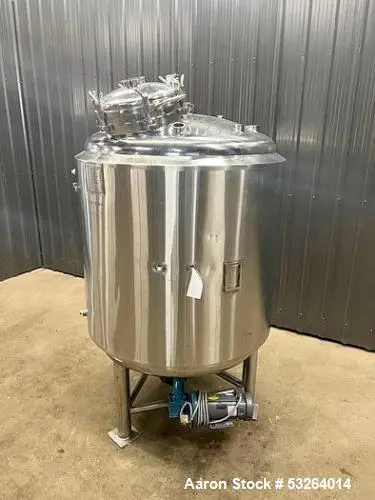

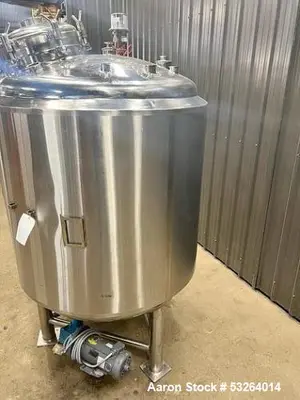

INOX Industries 275 Gallon Jacketed Reactor With Agitator

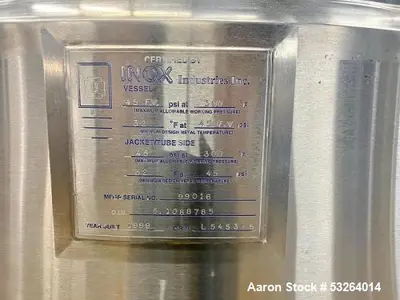

Used INOX Industries 275 Gallon Jacketed Reactor With Agitator. 316 Stainless Steel, Insulated, Full Vacuum. Jacket rated: 45 psi @ 300 deg.f. Vessel mawp: 45. psi @ 300 deg.f Rated full vacuum. Sanitary interior polish. With bottom mount agitator, Motor: 575 volt. Interior dimensions: 42'' diameter x 44'' straight side. Dish top & bottom. Center discharge: 2 tri-clamp with valve. Top inlets: four 1.5'', one 2.5'', two 2'' tri-clamp. 16'' manway, with clamp down lid & gasket, top inlet on lid: 4'. With top cip spray and with temperature probe. Tank is on three stainless steel legs with pads. Serial# 99016. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine

Description
This used INOX Industries 275-gallon jacketed reactor is constructed from 316 stainless steel with insulation for superior heat retention and process control. Designed for full vacuum applications, it features a jacket rated at 45 psi @ 300°F and a vessel MAWP of 45 psi @ 300°F. The sanitary interior polish makes it ideal for pharmaceutical, food, and chemical applications. It includes a bottom-mount agitator powered by a 575V motor, and a variety of inlets, including a 16" manway with a clamp-down lid and gasket. Additional features include a top CIP spray system and a temperature probe for precise monitoring.
Specifications

Capacity: 275 gallons

Material: 316 Stainless Steel

Jacket Rating: 45 psi @ 300°F

Vessel MAWP: 45 psi @ 300°F

Vacuum Rating: Full Vacuum

Insulation: Yes

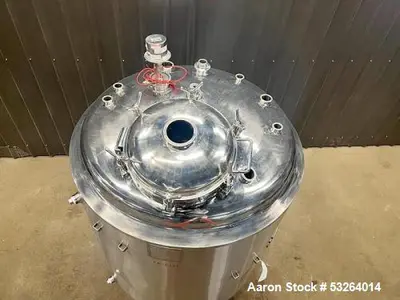

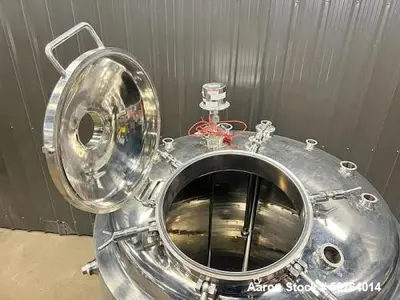

Manway: 16” with clamp-down lid & gasket

Interior Finish: Sanitary polished

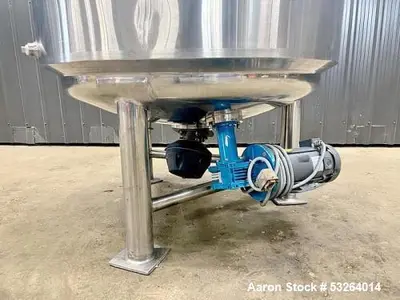

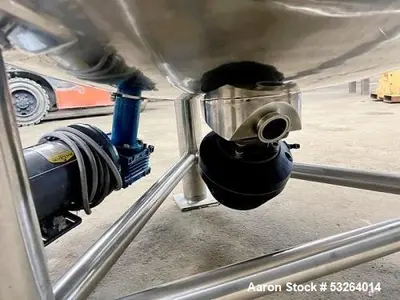

Agitator: Bottom-mounted, Motor: 575V

Interior Dimensions: 42” diameter x 44” straight side

Top Inlets:

(4) 1.5” tri-clamp
(1) 2.5” tri-clamp
(2) 2” tri-clamp
(1) 4” top inlet on lid

Center Discharge: 2” tri-clamp with valve

Dish Top & Bottom: Yes

Additional Features:

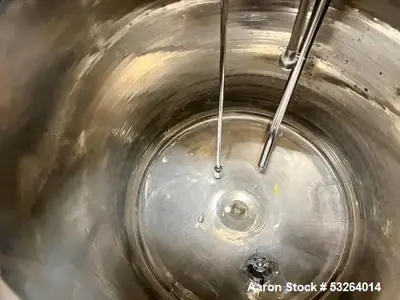

Top CIP Spray System
Temperature Probe

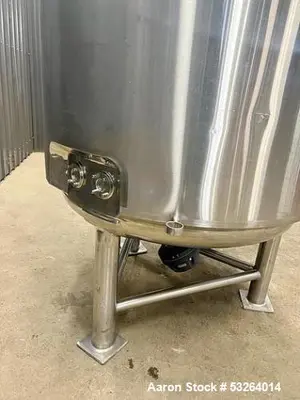

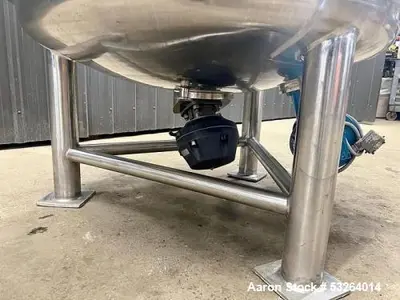

Three Stainless Steel Legs with Pads

Applications
This stainless steel jacketed reactor is suitable for a variety of industrial processing applications, including:

Pharmaceutical Processing – Reaction vessel for drug formulation.

Chemical Manufacturing – Mixing and heating of chemical compounds.

Food & Beverage Production – Sanitary mixing and fermentation applications.

Cosmetic & Personal Care – Processing of creams, gels, and emulsions.

Biotech & Laboratory Use – High-precision reaction environments.

Compatible Products
This jacketed reactor is designed for use with:

Pharmaceutical and biotech processing systems
Chemical reaction and batch processing
Food-grade liquid and paste processing
Vacuum and pressure applications
Sanitary and industrial mixing systems
