USED Igasi IG2002

Description

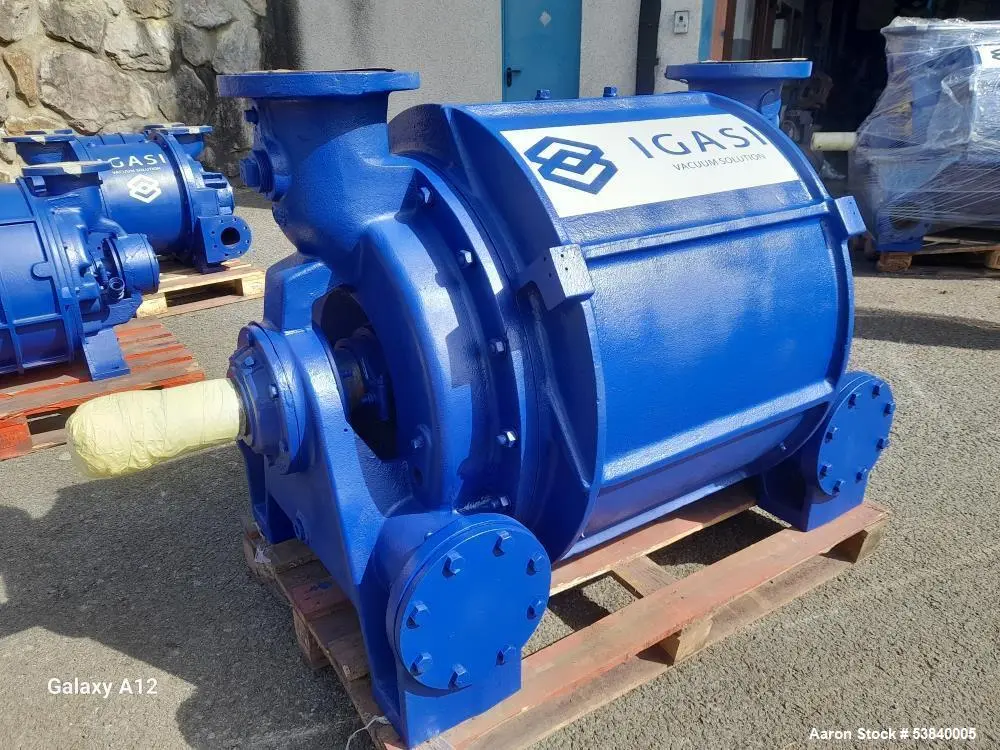

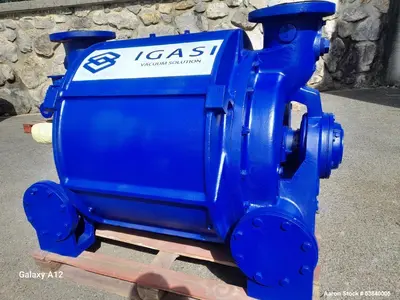

The Used Igasi Liquid Ring Vacuum Pump, Model IG2002, is designed for robust performance in demanding industrial vacuum applications. Featuring advanced Nash CL2000 technology, this pump delivers a suction flow of 2400 to 3900 m³/h while maintaining a vacuum level between 200 and 600 mm Hg. With a maximum power of 90KW (127.6hp) and optimized for a liquid temperature of 20ºC under controlled conditions (pH 6 and TH 18º), this unit is engineered to meet rigorous process demands. It comes equipped with precision connections, including a DN150 suction connection, DN125 supply connection, and a dedicated liquid ring connection, all driven by a 1”G shaft with a 90 mm diameter. Built in 2022, this pump is ideally suited for various industrial applications requiring reliable and efficient vacuum solutions.
Specifications

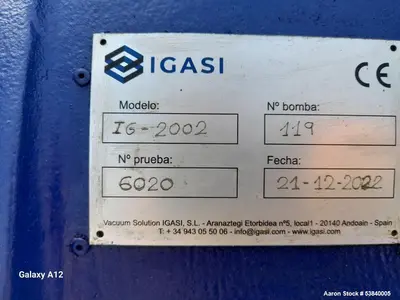

Model: IG2002

Technology: Nash CL2000

Suction Flow: 2400 – 3900 m³/h

Vacuum Range: 200 – 600 mm Hg

Maximum Power: 90KW (127.6hp)

Operating Liquid Temperature: 20ºC

pH: 6

TH: 18º

Suction Connection: DN150

Supply Connection: DN125

Liquid Ring Connection: Included

Shaft: 1”G, Diameter 90 mm

Year Built: 2022

Applications
Ideal for a range of industrial environments, this pump is used in:

Chemical processing
Food and beverage production
Pharmaceutical manufacturing
Process engineering
Other industries requiring efficient vacuum performance

What Products Would This Be Used For

Industrial vacuum systems
Liquid ring vacuum pump installations
Equipment for chemical and process industries
Systems with stringent liquid temperature and pH control
High-capacity vacuum solutions for manufacturing processes
