USED FITZPATRICK D

Manufacturer Information:

Manufacturer: Fitzpatrick Company

Model: D

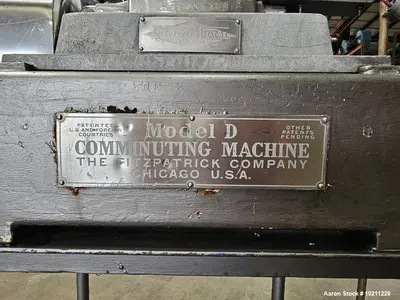

Type: Fitzmill Comminuting Machine

Condition: Used

Drive Motor: 3 HP, TEFC, two-speed, 1750 RPM

Power Supply: 115/230V, 60 Hz, single-phase

Mounting: Portable carbon steel stand (42" x 46" base)

Description:

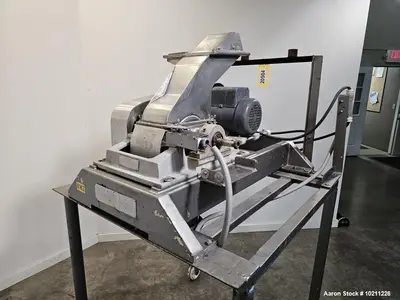

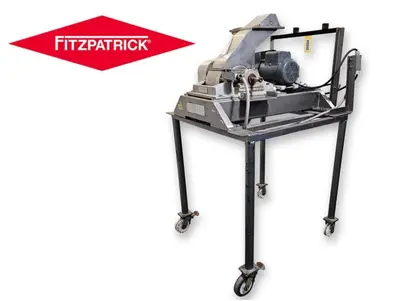

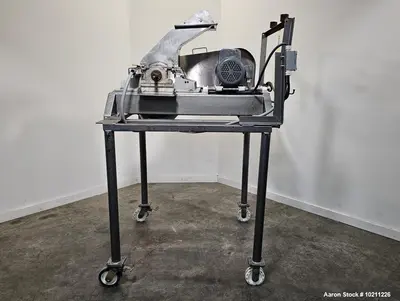

This used Fitzpatrick Fitzmill Model D is a comminuting machine designed for size reduction and granulation of dry or wet materials. Constructed with stainless steel product-contact components, this gravity-fed unit includes a slanted inlet throat and a 6" wide milling chamber with a 10" diameter rotor equipped with 16 pivoting blades. Driven by a 3 HP, two-speed motor through a v-belt drive, it provides efficient cutting, chopping, or granulating action. Unit sits on a portable carbon steel stand for flexible plant placement. Sizing screens are not included.

Specifications:

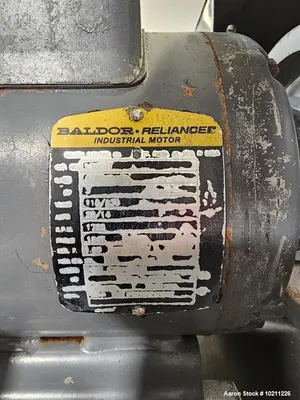

Motor: 3 HP, TEFC, 1750 RPM, two-speed

Power: 115/230V, 60 Hz, single phase

Feed: Gravity-fed with slanted throat

Inlet Opening: 4.75" H x 5.75" W

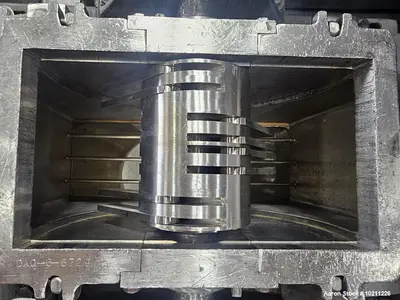

Milling Chamber: 6" wide

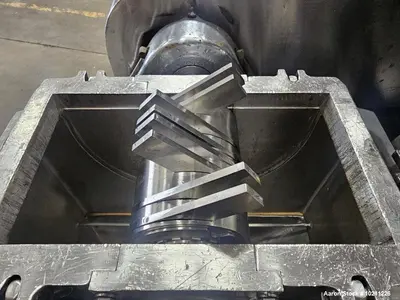

Rotor: 10" diameter with 16 pivoting plain bar blades (1" W x 0.25" thick)

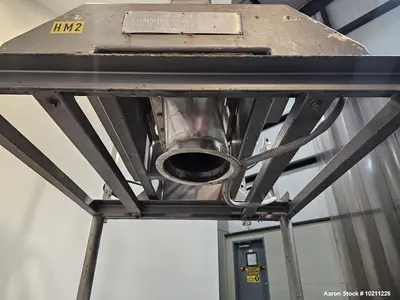

Discharge: Bottom hopper with 7.75" flange, 42.25" above base

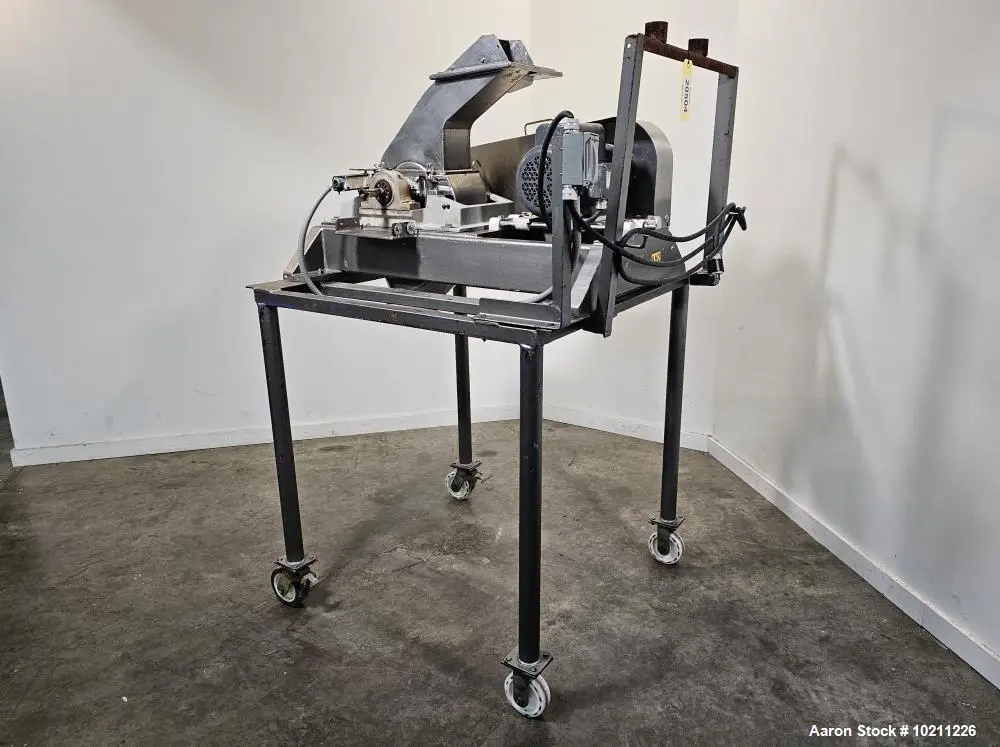

Mounting: Portable carbon steel stand (42" x 46" base area)

Material Contact Parts: Stainless steel

Screens: Not included

Applications:

Nutraceutical granulation

Tablet pre-blending

Food ingredient milling

Cosmetic powders production

Fine grinding of herbs and roots

Chemical chunk reduction

Agricultural product sizing

Spice granulation

Plastic resin cutting

Research and development milling

What might this be used for:

Reducing particle size in bulk powder ingredients

Conditioning dry powders for tableting or encapsulation

Milling herbs, roots, or dried foodstuffs into uniform granules

Producing intermediate blends in nutraceutical processing

Granulating food additives before packaging

Fine-tuning batch consistency in formulation labs

Reclaiming product by reducing waste into usable form

Shaping active ingredients in pharmaceutical blending

Sizing chemical products for downstream processing

Preparing cosmetic bases with consistent texture
