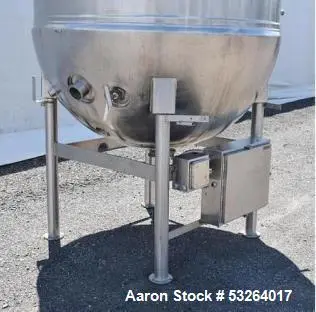

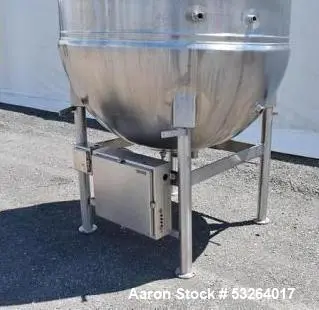

Used Hamilton 500 Gallon Stainless Steel Kettle – Jacketed, 125 PSI, Full Vacuum

Used Hamilton 500 Gallon Kettle. Jacket pressure rated: 125 psi @ 344 deg. F.66" diameter x 48" straight side. Rated for full vacuum: 25/fv. Top inlets: 10" flanged, 4", one 4" & one 2", tri clamp. Top side ports: two 3", sanitary thread. Top lid: 17" diameter with 4" tri clamp. Center discharge: 3" sanitary thread. Bottom side port: 3.5 tri clamp. Comes with spray ball. Kettle is on four stainless legs. Overall height: 148". Missing sightglass. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer Information:

Manufacturer: Hamilton

Model: 500-Gallon Kettle

Serial Numbers: F 4525 & F 4526

Construction Material: Stainless Steel

Mounting: Four stainless steel legs

Description:
This used Hamilton 500-gallon jacketed kettle is rated for 125 PSI at 344°F and full vacuum (25/fv), making it ideal for food processing, pharmaceutical, and chemical applications. The kettle features multiple inlets and outlets, including a 10" flanged inlet, 4" and 2" tri-clamp inlets, two 3" sanitary thread top-side ports, and a 3" sanitary thread center discharge. It also comes with a spray ball for cleaning. The kettle stands on four stainless steel legs and has an overall height of 148 inches. The sight glass is missing.
Specifications:

Capacity: 500 gallons

Jacket Rating: 125 PSI @ 344°F

Vacuum Rating: Full vacuum (25/fv)

Top Inlets:

10" flanged
4" tri-clamp
One 4" & one 2" tri-clamp

Top Side Ports: (2) 3" sanitary thread

Top Lid: 17" diameter with 4" tri-clamp

Discharge Outlet: 3" sanitary thread (center)

Bottom Side Port: 3.5" tri-clamp

Accessories: Spray ball included

Legs: Four stainless steel legs

Overall Height: 148"

Sight Glass: Missing

Applications:

Food Processing – Cooking, mixing, and heating food products

Pharmaceutical Production – Sterile mixing and processing of medical products

Chemical Processing – Safe handling of chemical reactions under pressure/vacuum

Dairy & Beverage Industry – Pasteurization and blending of liquids

Cosmetic Manufacturing – Mixing of creams, lotions, and gels

Brewing & Distilling – Fermentation and heating of liquids

Petroleum & Lubricant Processing – Heating and refining applications

Soap & Detergent Production – Mixing and processing of liquid formulations

Nutritional Supplement Production – Processing of vitamins and health products

Industrial Laboratory Use – Research and development in controlled conditions
