| Swing | 34" | 863.6 mm |
| Machining Length | 177.17" | 4,500.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 31.5" | 800.1 mm |
| Bar Capacity | 6.5" | 165.1 mm |
| Power | 48 hp | 35.8 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 20" | 508 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Siemens Sinumerik) | CNC (Siemens Sinumerik) |
Specifications (subject to buyer verification):
Swing: 34”
Swing Over Cross Slide: 20”
Center Distance: 177.17”
Motor Size: 48 HP
Speeds, Stepless: 1 – 1,800 RPM
Feeds, Stepless, Inch: 1/64 – 112 TPI
Feeds, Stepless, Metric: 0.1 – 50mm
Spindle Bore: 6.5”
Tailstock: #6 MT
Equipped With (subject to buyer verification):

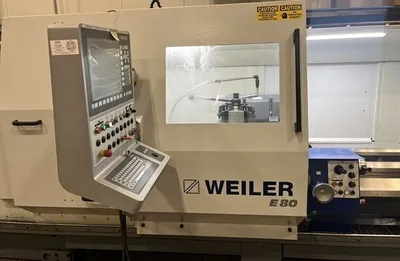

Weiler 2-Axis Siemens Sinumrik E-Series Cycle Controller
15” Screen
31.5” 4-Jaw Chuck
Two (2) Roller Steady Rests
One (10) Follow Rest
Live Center in Tailstock
Chip Conveyor
Parat Quick Change Tool Holder
Weiler Boring Bar Holder
Coolant System
Chip Conveyor
