| Swing | 22.44" | 569.98 mm |
| Machining Length | 78.74" | 2,000 mm |
| # Axis | 2 | 2 |
| Chuck Size | 20" | 508 mm |
| Bar Capacity | 6.5" | 165.1 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 22.44" | 569.98 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

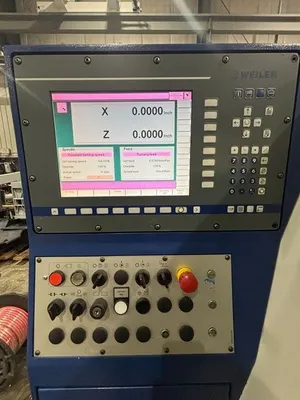

| Control | CNC | CNC |
| Dimensions | 173″ x 91″ x 75″ | 173″ x 91″ x 75″ |
| Weight | 9370 lbs | 9370 lbs |
Specifications (subject top buyer verification):
Chuck size: 20”
Turning length / Center distance: 78.74″
Swing over bed: 22.44″
Swing over cross slide: 13.39″
Travel of cross slide: 13.39″
Width of bed: 13.78″
Spindle bore: 6.5″
Max. torque at the main spindle: 900 Nm
Metric threads: 0.001″ – 78″
Inch threads: 112-1/64 TPI
Modular threads: 0.001 – 2.20″
Diametral threads: 448 – 0.05 DP
Number of thread courses max: 360
Quill diameter: 3.15″
Quill travel: 7.87″
Inside taper of quill: 5 MT
Dimensions: 173″ x 91″ x 75″
Weight: 9,370 lbs
Equipped With (subject to buyer verification):

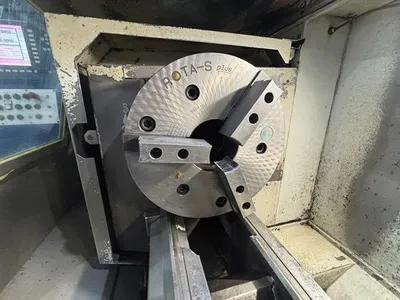

Schunk 500-162 ROTA-Plus quick-change chuck
Chip Conveyor
Electromechanical spindle break
4-way turret tool post
Six (6) tool holders
