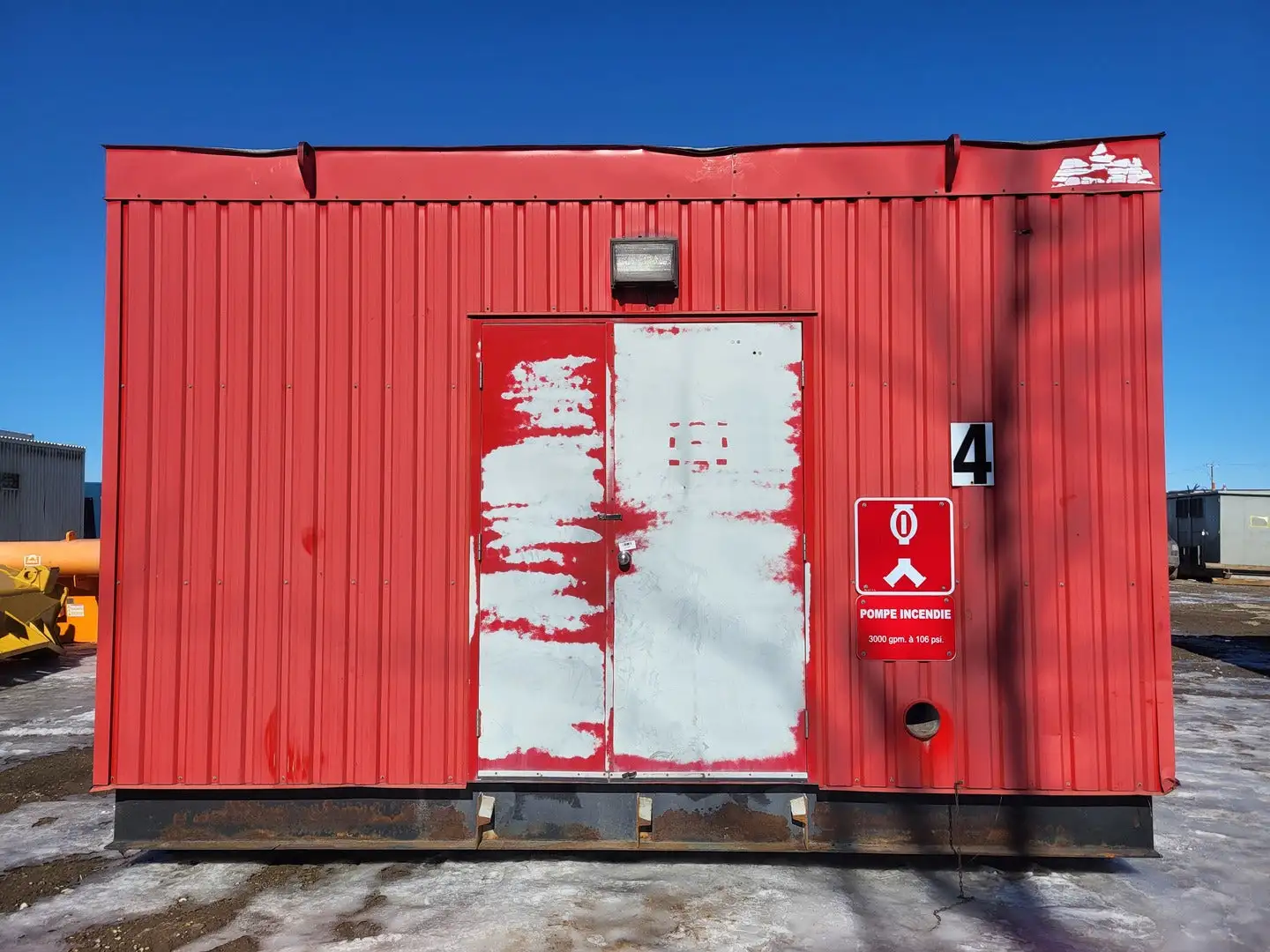

Containerized Foam Fire Suppression System w/ Deluge Valve, Potter Controls & Piping Manifold

Manufacturer: Viking
Model: E-1
Size: 2.5 in
Pressure Rating: 175 PSI
This is a deluge valve, which instantly releases water or foam when triggered.
Nibco Fire Valve / Control Valve
Brand: NIBCO
Type: Fire protection control valve
Used to isolate and regulate system flow.
Potter Electric Fire Monitoring Module
Manufacturer: Potter Electric Signal Company
Potter equipment monitors:
water flow
pressure
supervisory alarms
valve position
These integrate with a fire alarm panel.
Foam Proportioning Equipment
The system includes:
foam proportioning piping
foam concentrate injection
mixing manifold
hese systems typically mix 1%, 3%, or 6% foam concentrate into the water supply.
Instrumentation
The skid includes:
pressure gauges
supervisory switches
relief valves
manual activation valves
fire system piping manifold

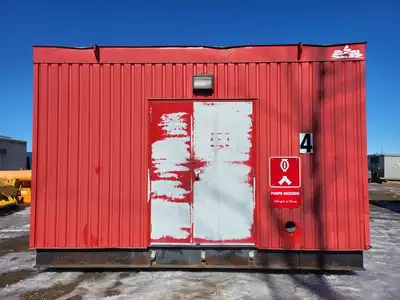

Containerized Skid
Everything is mounted inside a weatherproof container which allows the system to be installed outdoors in harsh environments (common in mining and oil facilities).
