Containerized Foam Fire Suppression System w/ Deluge Valve, Potter Controls & Piping Manifold

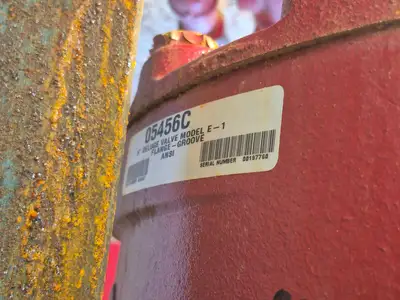

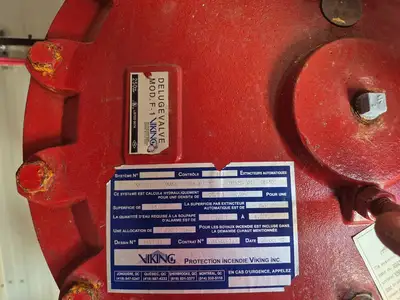

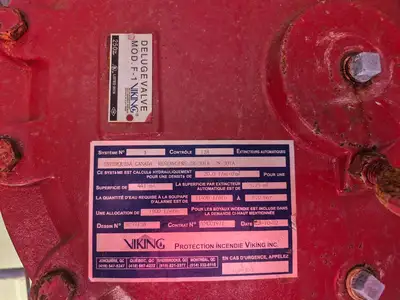

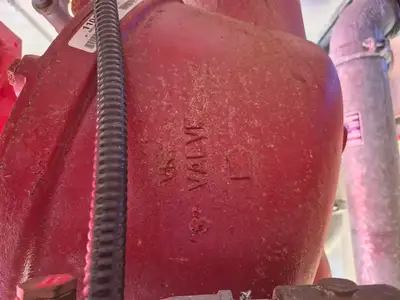

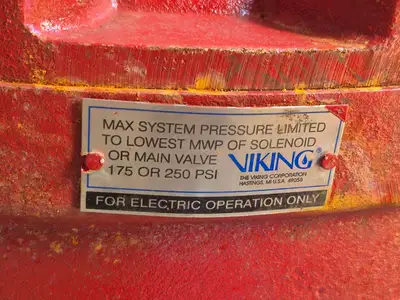

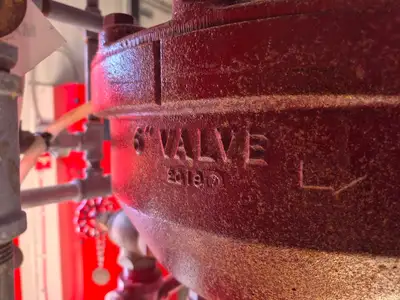

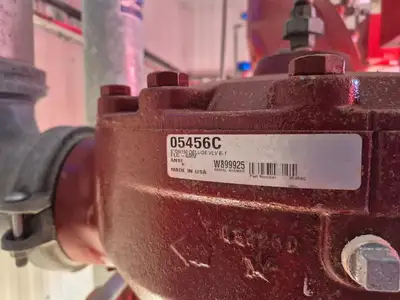

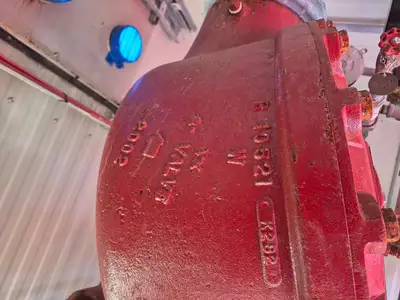

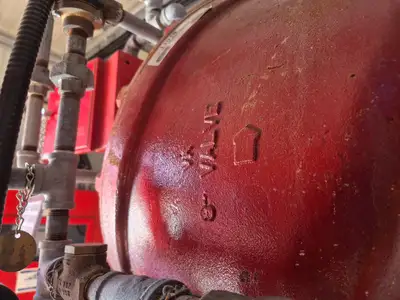

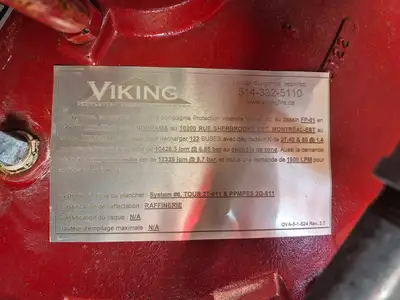

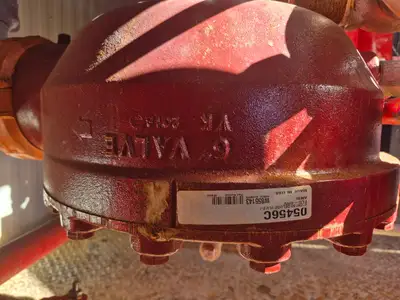

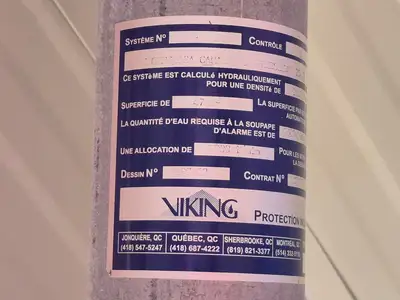

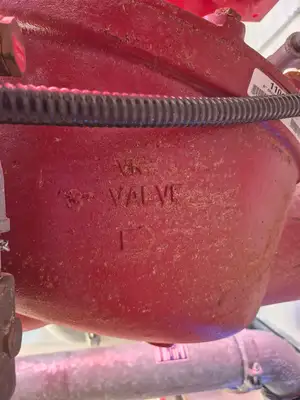

Viking Deluge Valve
Manufacturer: Viking Group
Model: E-1
Size: 2.5 in
Pressure Rating: 175 PSI
This is a deluge valve, which instantly releases water or foam when the fire detection system is triggered.

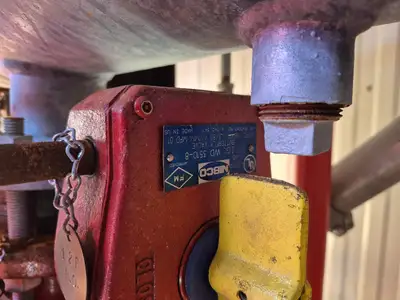

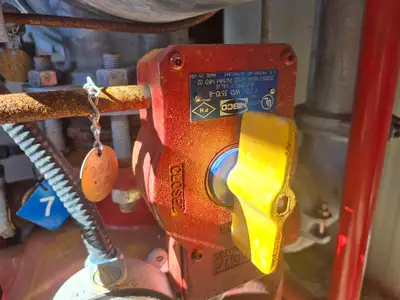

NIBCO Fire Valve / Control Valve
Brand: NIBCO
Type: Fire protection control valve
Used to isolate and regulate system flow within the fire suppression piping.

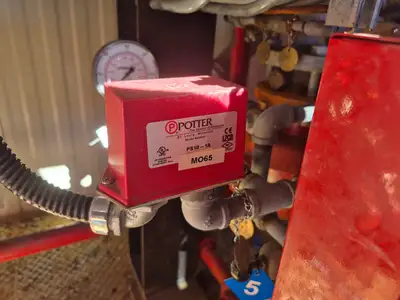

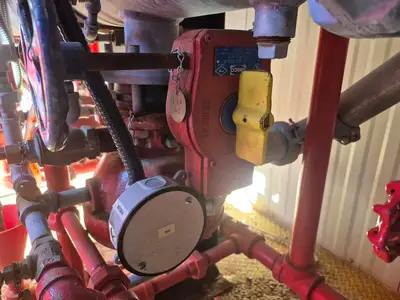

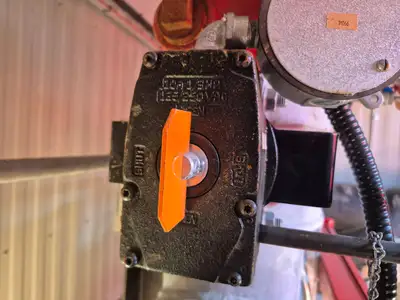

Potter Electric Fire Monitoring Module
Manufacturer: Potter Electric Signal Company
Potter equipment monitors:
water flow
pressure
supervisory alarms
valve position
These components connect to a fire alarm panel and notify operators when the system activates or when valves are tampered with.
Foam Proportioning Equipment
The system includes:
foam proportioning piping
foam concentrate injection connection
foam mixing manifold
These systems mix foam concentrate with the water supply to produce firefighting foam.
Typical foam ratios:
1%
3%
6%

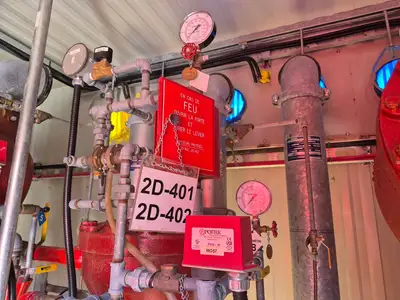

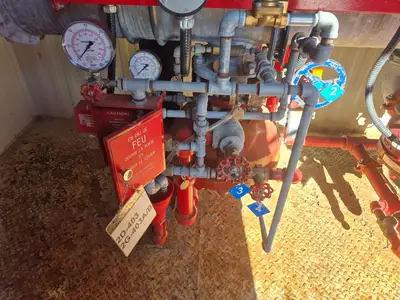

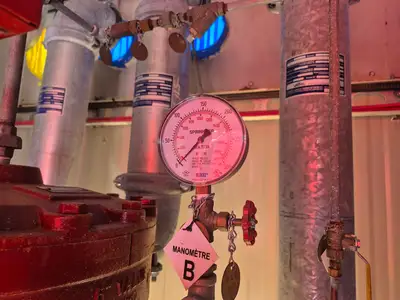

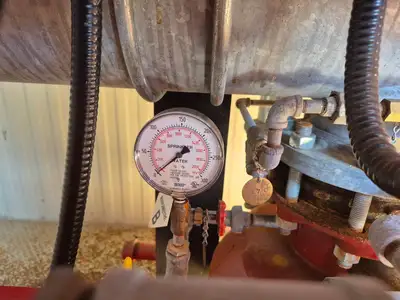

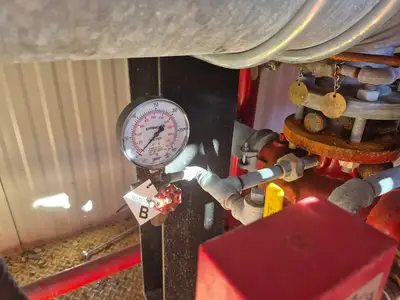

Fire System Instrumentation
The skid includes:

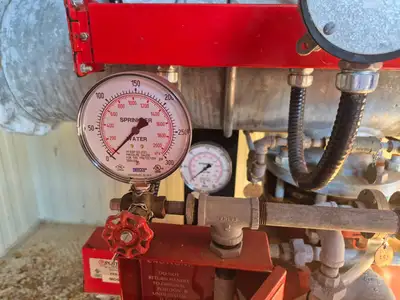

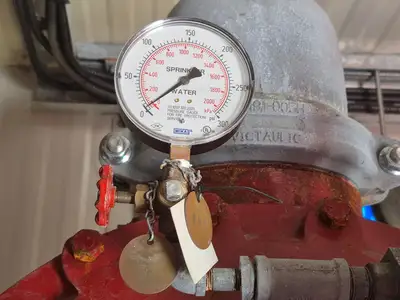

pressure gauges
supervisory switches
test valves
relief valves
manual activation valves
These allow the system to be tested, monitored, and manually activated if required.

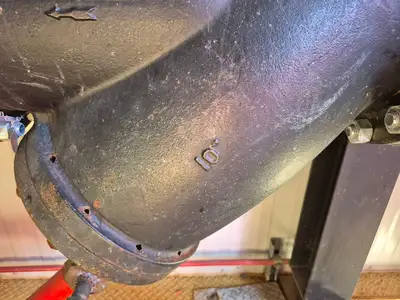

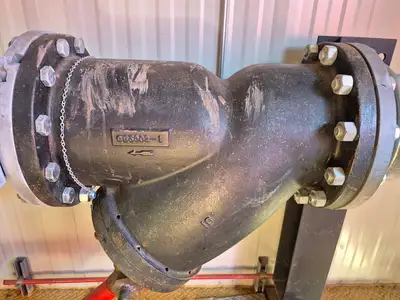

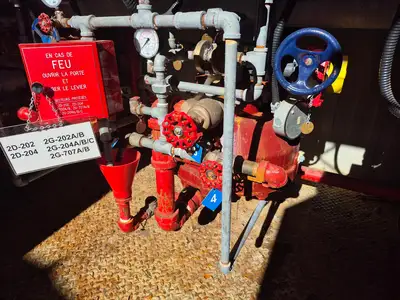

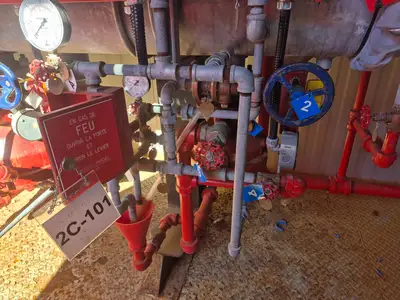

Fire Suppression Distribution Manifold
The red fire piping manifold distributes the water / foam mixture to multiple suppression zones or discharge points.
This includes:
flanged piping connections
branch outlets
isolation valves
drain connections

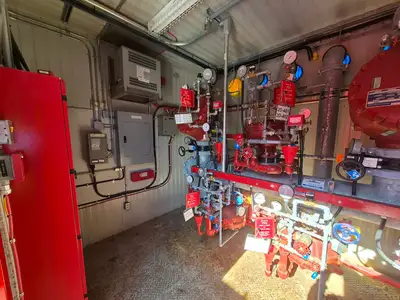

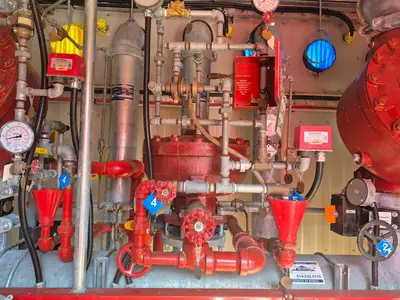

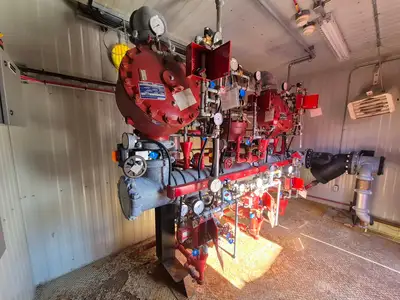

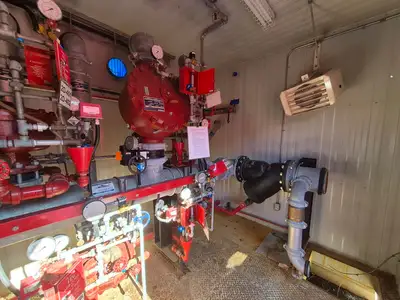

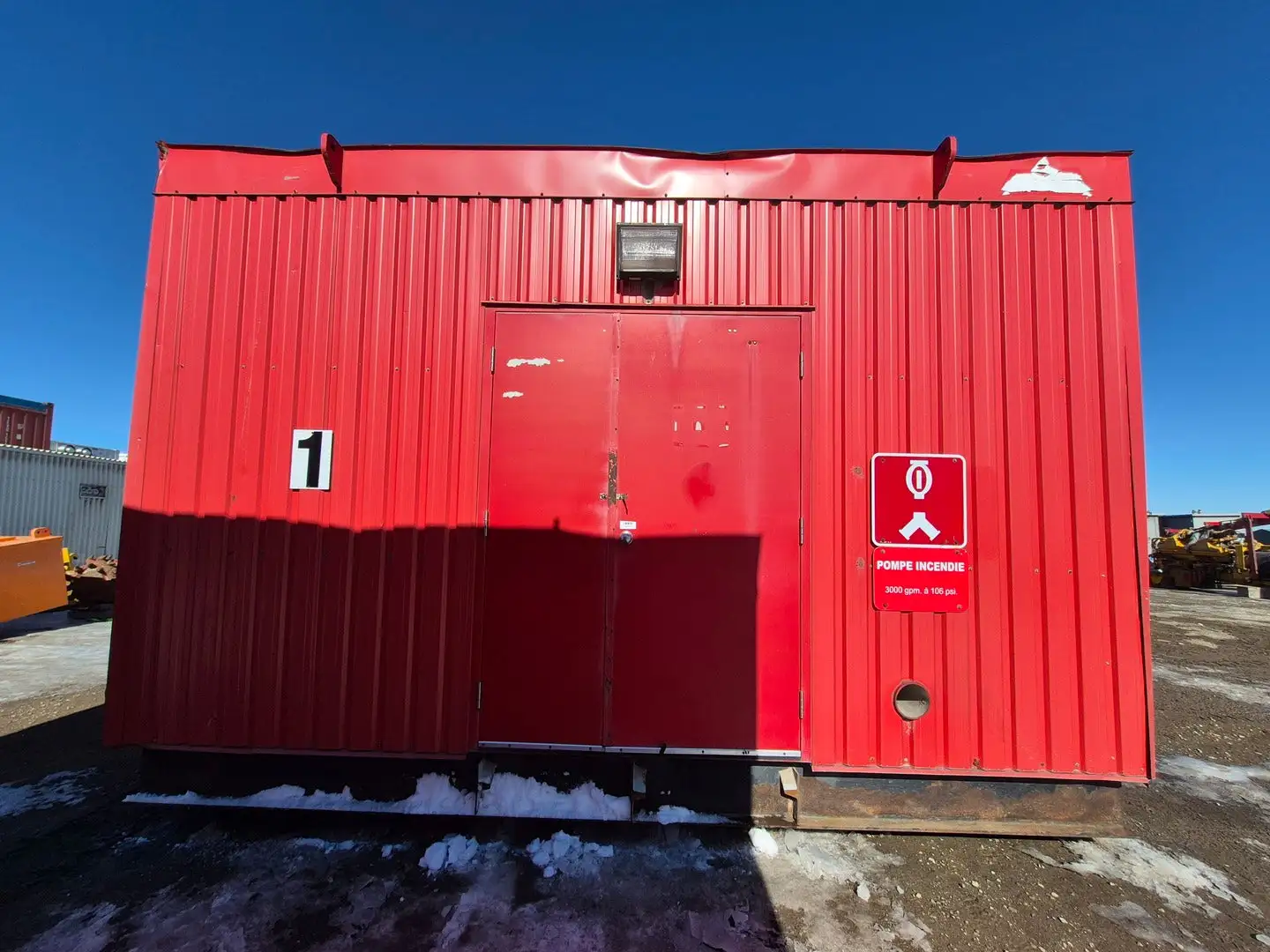

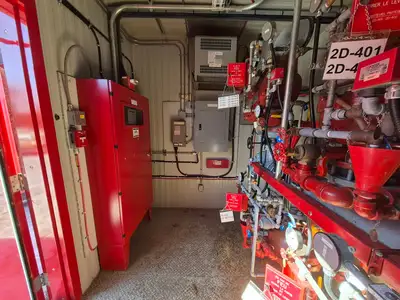

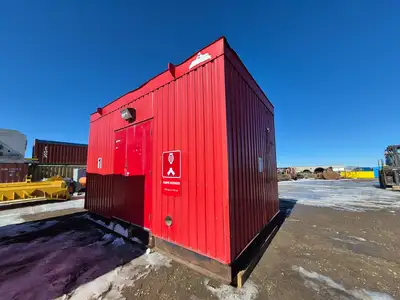

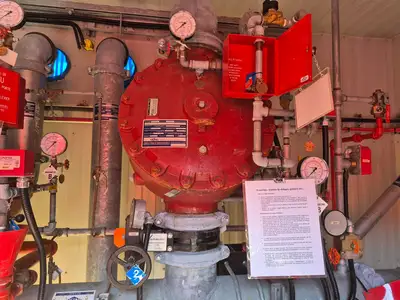

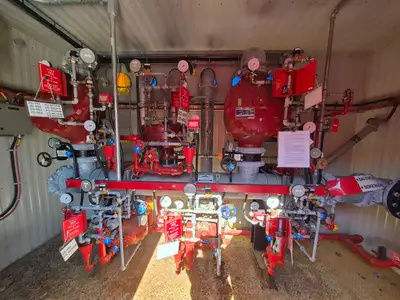

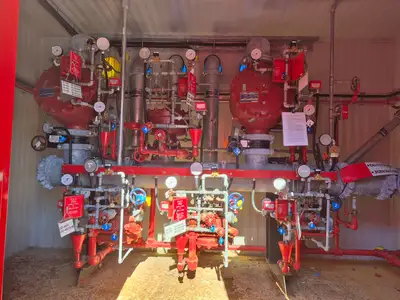

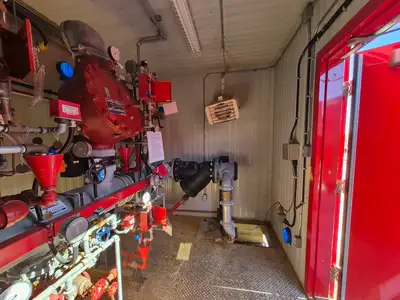

Containerized Skid

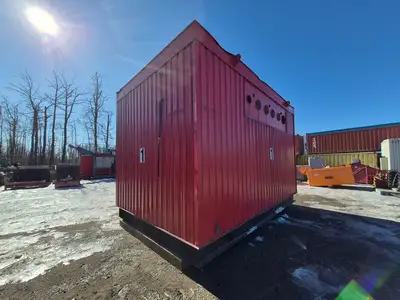

All equipment is mounted on a steel skid inside a weatherproof container.
This configuration allows the fire suppression system to be installed outdoors in harsh industrial environments such as:
mining operations
fuel storage terminals
oil & gas facilities
pulp and paper mills
power plants.
