Containerized Foam Fire Suppression System w/ Deluge Valve, Potter Controls & Piping Manifold

This unit is a containerized industrial foam fire suppression system designed for high-hazard fire protection applications. It uses a deluge valve and foam proportioning equipment to mix foam concentrate with water and distribute it through a fire protection manifold to extinguish flammable liquid or industrial fires.
Manufacturer: Viking Group
Model: E-1
Size: 2.5 in
Pressure Rating: 175 PSI

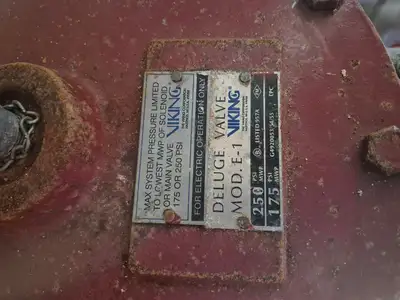

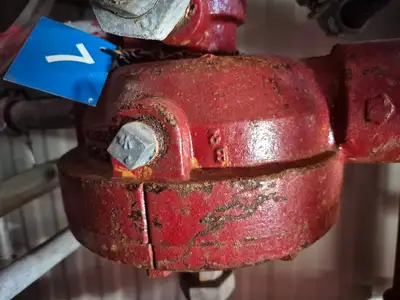

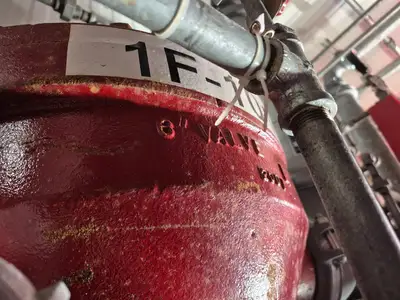

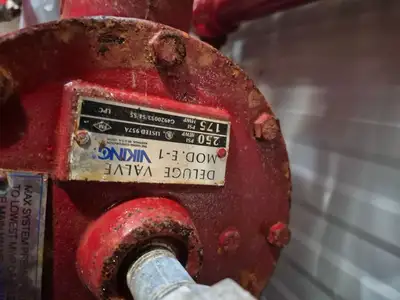

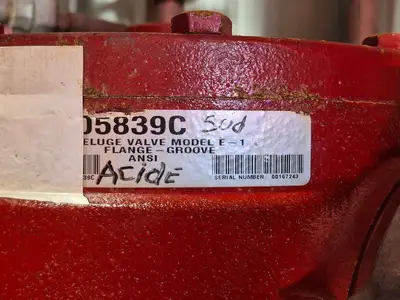

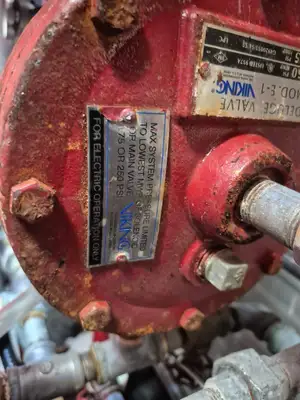

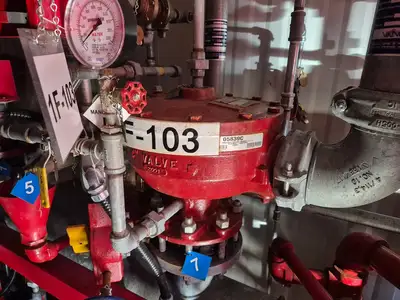

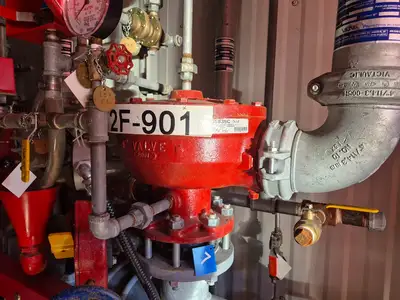

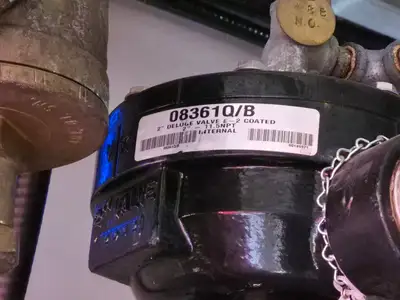

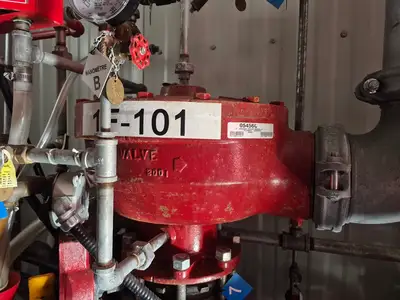

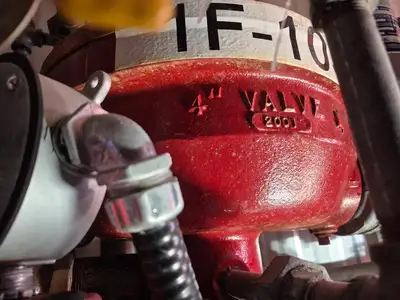

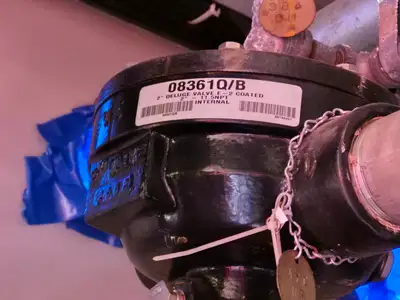

This is a deluge valve, which instantly releases water or foam when the fire detection system is triggered.
Brand: NIBCO
Type: Fire protection control valve

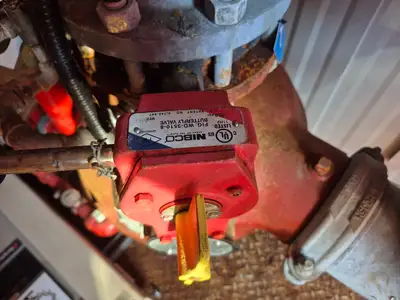

Used to isolate and regulate system flow within the fire suppression piping.

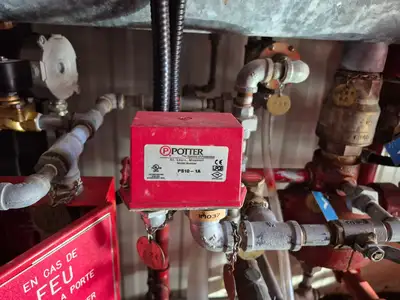

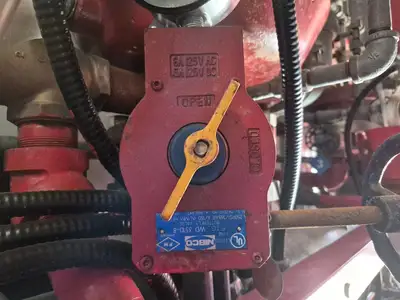

Manufacturer: Potter Electric Signal Company

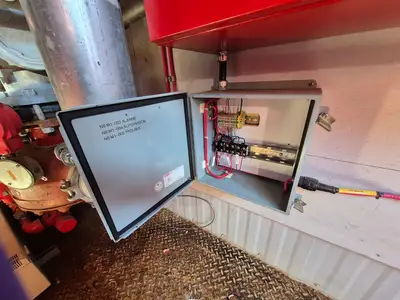

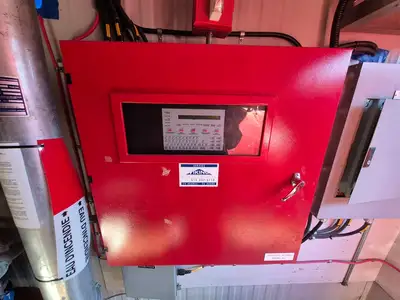

Potter equipment monitors:
water flow
pressure
supervisory alarms

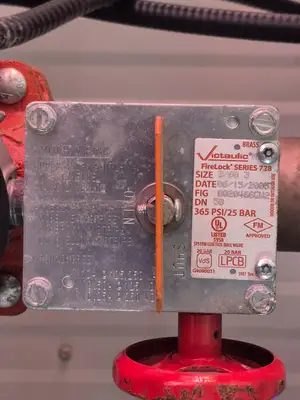

valve position

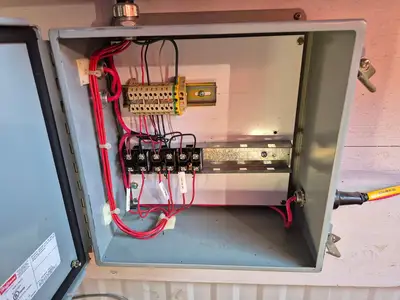

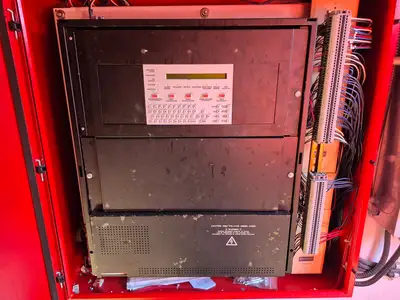

These components connect to a fire alarm panel and notify operators when the system activates or when valves are tampered with.

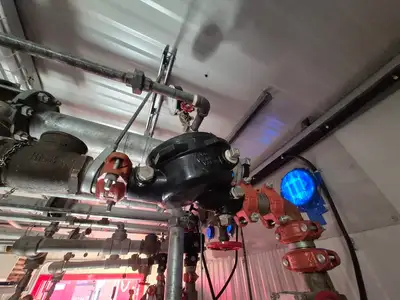

The system includes:

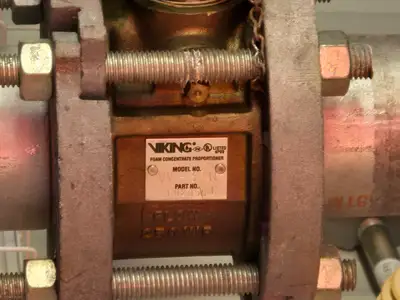

foam proportioning piping
foam concentrate injection connection
foam mixing manifold
These systems mix foam concentrate with the water supply to produce firefighting foam.
Typical foam ratios:
1%
3%
6%

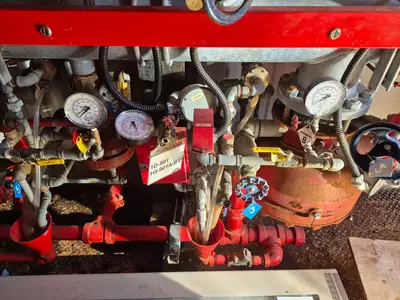

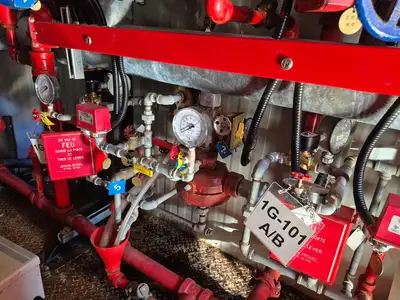

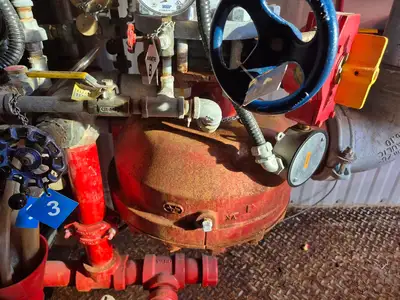

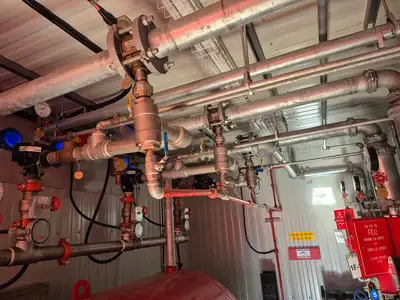

The skid includes:
pressure gauges
supervisory switches
test valves
relief valves
manual activation valves
These allow the system to be tested, monitored, and manually activated if required

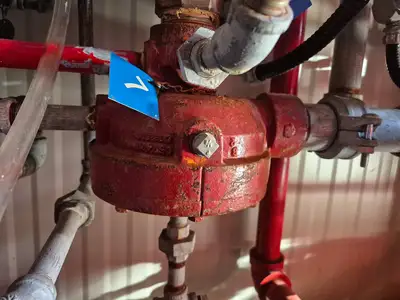

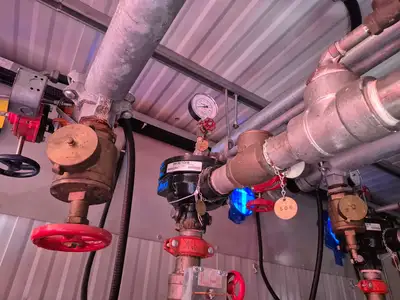

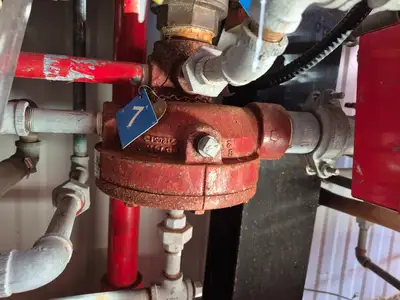

The red fire piping manifold distributes the water / foam mixture to multiple suppression zones or discharge points.
This includes:
flanged piping connections
branch outlets
isolation valves
drain connections

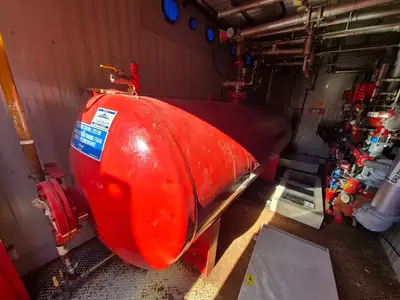

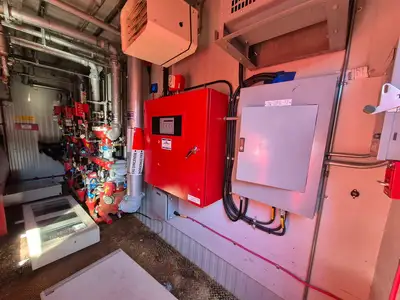

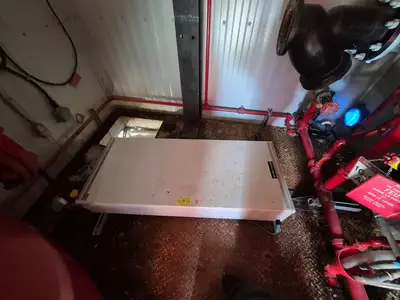

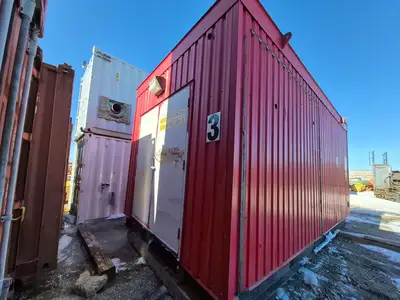

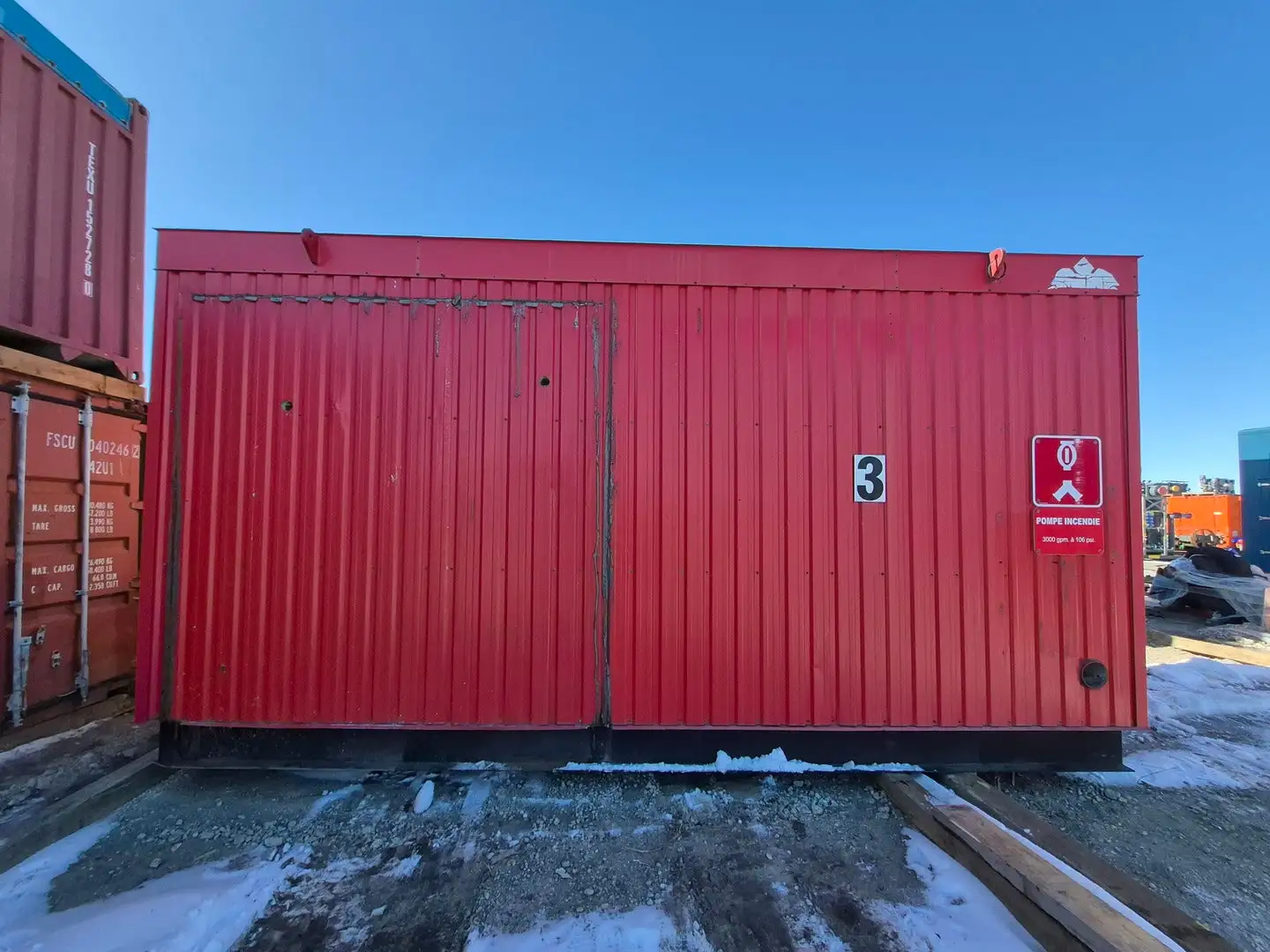

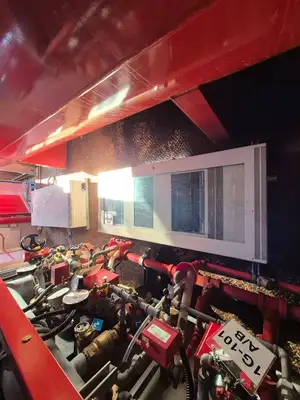

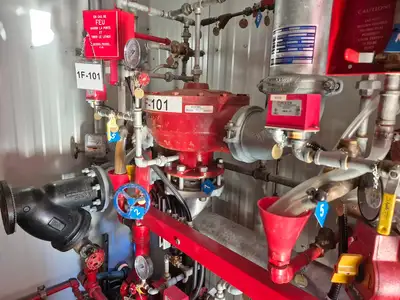

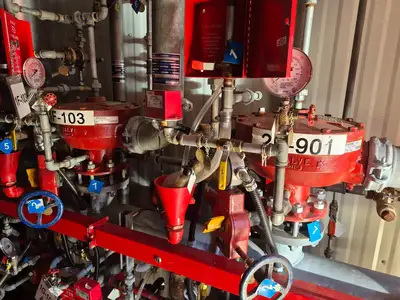

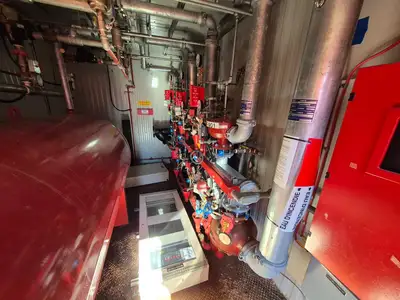

All equipment is mounted on a steel skid inside a weatherproof container.
This configuration allows the fire suppression system to be installed outdoors in harsh industrial environments such as:
mining operations
fuel storage terminals
oil & gas facilities
pulp and paper mills
power plants.
