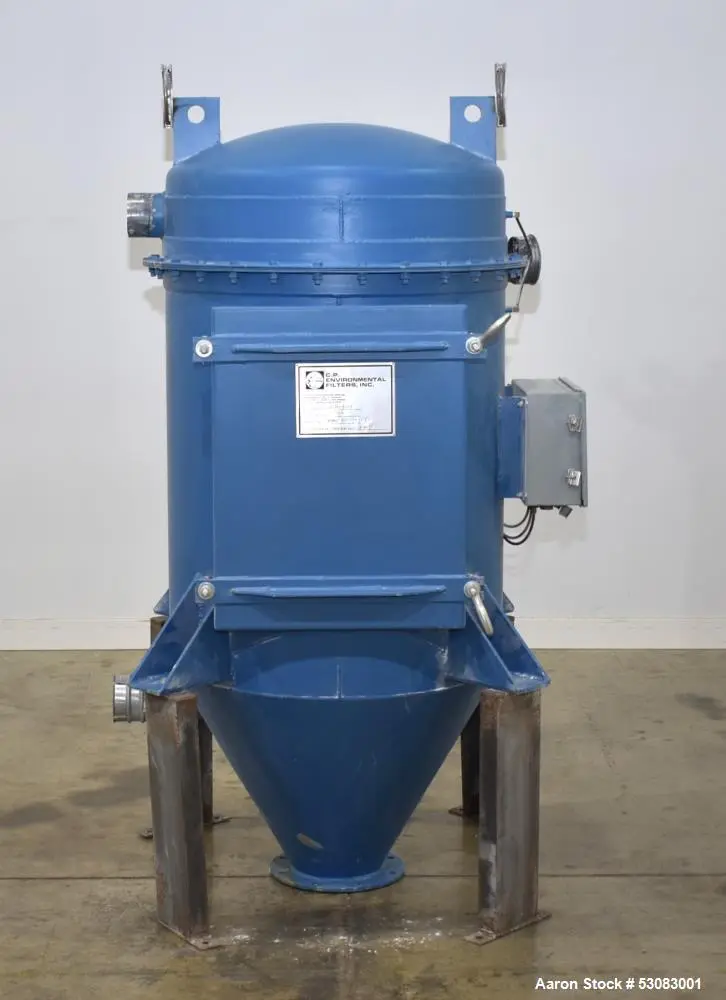

USED CPE 24-CFR-009-C

Manufacturer Information:

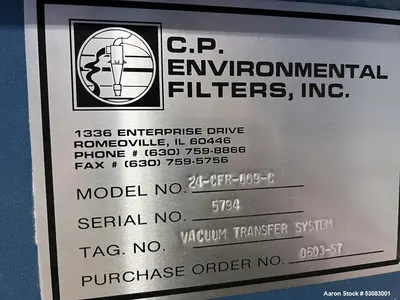

Manufacturer: CPE Filters Inc.

Model: 24-CFR-009-C

Type: Cartridge Filter Receiver / Dust Collector (Vertical)

Condition: Used

Serial Number: 5794

Manufacturing Data:
Dust Collector Specifications:

Material: Carbon Steel

Orientation: Vertical

Airflow Capacity: 400 ACFM

Filtering Area: 142 Square Feet

Dust Density Capacity: 50 lbs/Cubic Foot

Temperature Rating: 200°F Max

Structural Details:

Housing Dimensions: 28" Diameter x 36" Straight Side

Top Configuration: Dished Top

Bottom Configuration: Coned Bottom

Filtration System:

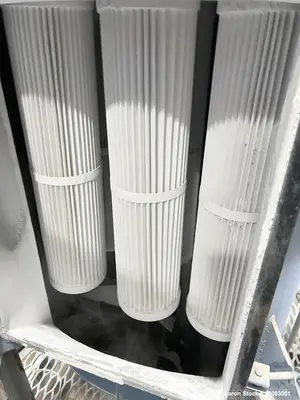

Filter Cartridges: (9) Filters

Cartridge Dimensions: 6" Diameter x 24" Long Each

Airflow & Access Points:

Clean Air Outlet: 4" Diameter

Dusty Air Inlet: 4" Tube Inlet with Internal Baffle

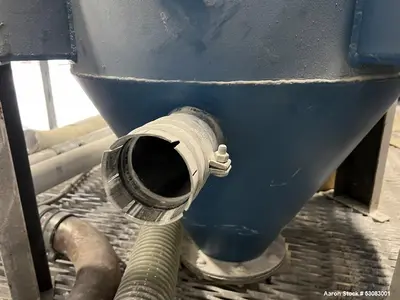

Dust Collection Outlet: Approx. 8" Center Bottom Outlet

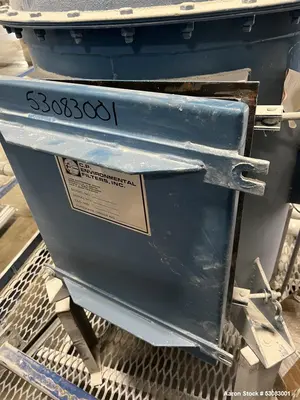

Side Access Door: 18" x 24" for Maintenance & Filter Replacement

Mounting & Support:

Side Lug Mounted
Supported by (4) Carbon Steel Legs

Additional Components:

(3) Valves for Airflow & Dust Control
Blower Not Included

Description:
The Used CPE Filters Inc. Model 24-CFR-009-C Cartridge Filter Receiver is a high-efficiency dust collection and air filtration system, designed for industrial and manufacturing dust control applications.
With an airflow capacity of 400 ACFM and 142 square feet of filtering area, this system efficiently removes dust, particulates, and airborne contaminants from food processing, pharmaceutical, chemical, and manufacturing environments.
Equipped with nine 6" x 24" filter cartridges, a 4" clean air outlet, and a 4" dusty air inlet with an internal baffle, this unit provides optimal filtration with minimal pressure drop. The coned bottom and 8" center bottom outlet allow for efficient dust discharge and collection.
The 18" x 24" side access door ensures easy filter maintenance and replacement, while the carbon steel construction and side lug-mounted design with four sturdy legs provide stability and durability.
This unit does not include a blower, allowing users to integrate it into existing dust collection systems or customize airflow control.

Specifications:

Airflow Capacity: 400 ACFM

Filtering Area: 142 Square Feet

Dust Density Capacity: 50 lbs/Cubic Foot

Material: Carbon Steel

Housing Dimensions: 28" Diameter x 36" Straight Side

Top Design: Dished Top

Bottom Design: Coned Bottom

Temperature Rating: 200°F Max

Filter Cartridges: (9) Filters (6" Dia. x 24" Long Each)

Clean Air Outlet: 4" Diameter

Dusty Air Inlet: 4" Tube with Internal Baffle

Dust Collection Outlet: 8" Center Bottom Outlet

Side Access Door: 18" x 24"

Mounting: Side Lug Mounted, Supported by (4) Carbon Steel Legs

Valves: (3) Airflow & Dust Control Valves

Blower: Not Included

Serial Number: 5794

Condition: Used, Good Working Order

Applications:

Industrial dust collection & air filtration
Pharmaceutical powder & airborne particulate control
Food processing & flour dust collection
Chemical plant air purification
Metalworking & welding fume extraction
Woodworking shop sawdust collection
Paint booth & coating process air filtration
Manufacturing plant dust control & environmental compliance

What Products Would This Be Used For?

Fine particulate filtration in industrial environments
Dust collection for food & pharmaceutical processing plants
Powder coating & finishing air filtration
Chemical & solvent-based fume extraction
Metalworking and welding smoke & dust control
Plastic & composite manufacturing dust collection
HVAC & cleanroom air purification
Sawdust & wood debris extraction in woodworking applications
