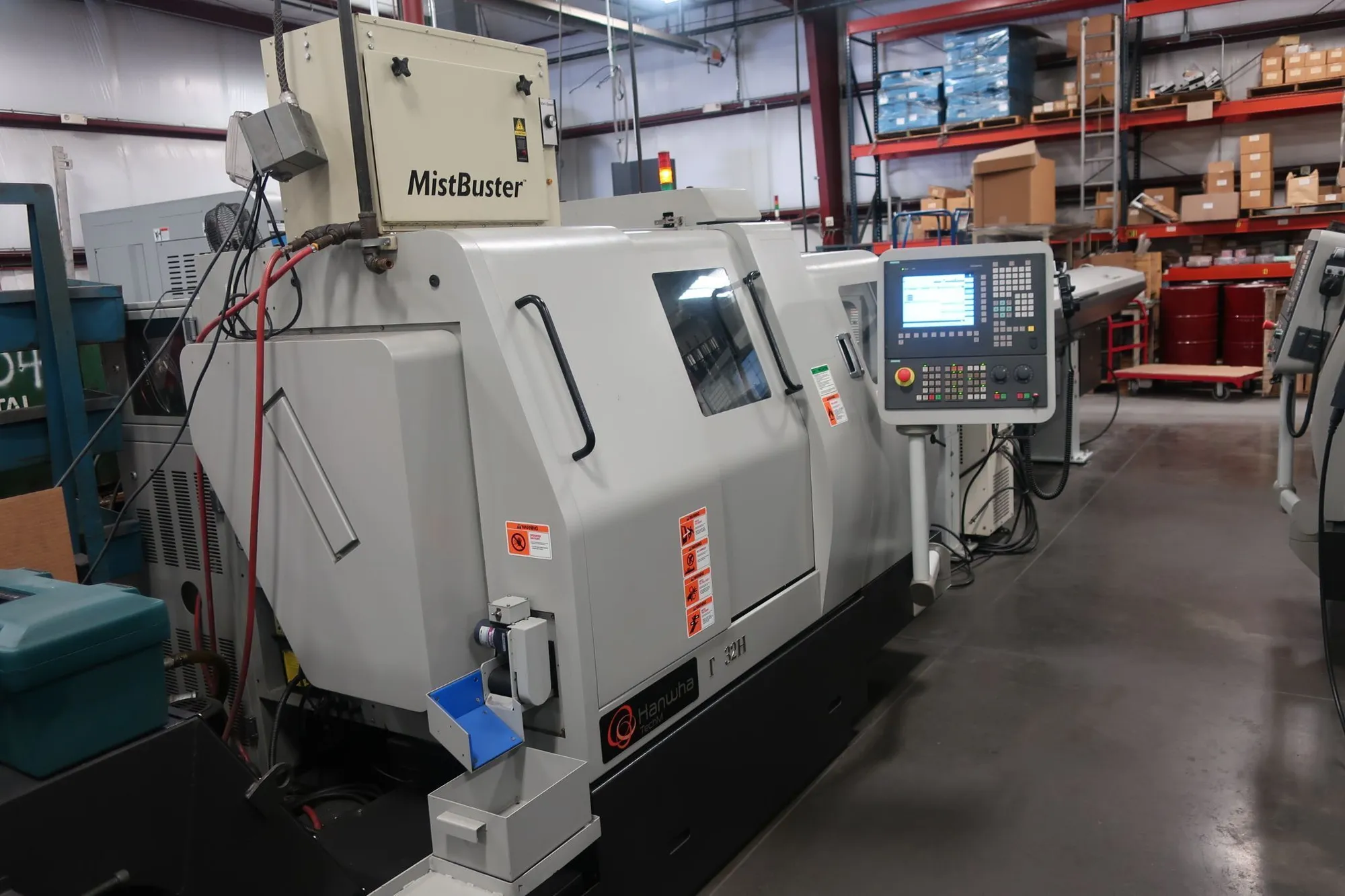

Hanwha STL32H CNC Swiss Lathe, New in 2013
| Capacity | 1.25" | 31.75 mm |
| Power | 30.8 hp | 23 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 8 | 8 |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Main Spindle Indexing | Full C | Full C |
| Sub-Spindle Indexing | Full C | Full C |
| Control | CNC (Siemens 840D) | CNC (Siemens 840D) |
| Dimensions | 123" x 73" x 70" | 123" x 73" x 70" |
| Weight | 9,900 lbs | 9,900 lbs |
General Specifications:
Axes: X1, X2, X3, Y1, Y2, Z1, Z2, Z3
Machining Diameter: 1.25" (32mm)
Z1 Stroke: 12.59" (320mm)
Main/Sub Spindle Speed: 8,000 RPM
Main/Sub Spindle Motor: 30 HP
Number of Tools
OD: 5 (16mm) / 4 (ER20M)
Cross Drill (Tools/Speed/Motor): 10 Station / 6,000 RPM / 3.7 HP
Turret: 30 Tools (ER20) (VDI 30)
Back Tools: 4 (Fixed, ER20M)
Voltage: 3 Phase 220-240 / 380-415 VAC
Machine Dimensions: 123" x 73" x 70"
Machine Weight: 9,900 lbs
Machine Hours
Cutting Hours: 3093
Siemens 840D CNC Control
LNS Express 332 S2 12' Magazine Barfeed
Mist Buster Mist Collector
Nanocon CIL751 Cooler
Power Pump 2,000 PSI High Pressure Coolant System (8 Port)
Chip Conveyor
Parts Catcher
Parts Conveyor
