| Swing | 34" | 863.6 mm |
| Machining Length | 177.17" | 4,500.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 31.5" | 800.1 mm |
| Bar Capacity | 6.5" | 165.1 mm |
| Power | 48 hp | 35.8 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 20" | 508 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Weiler CNC Control) | CNC (Weiler CNC Control) |
| Weight | 20,000 lbs. Approx. | 20,000 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

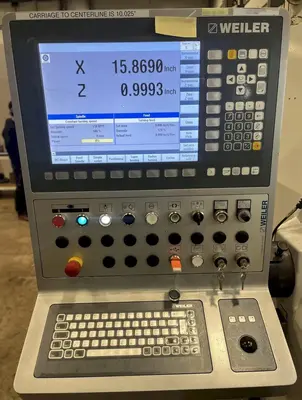

Weiler CNC Control
Coolant Tank
Capacity:
Max Swing Over Bed : 34.0″
Max Swing Over Cross Slide: 20.0″
Bed Width: 18.90″
Distance Between Centers : 177.17″
Travels:
X Axis Travel (Cross Slide): 16.14″
Z Axis Travel (Longitudinal) : 177″
Feedrate:
Rapid Traverse X Axis: 197 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle:
Spindle Bore: 6.5″
Spindle Speed: 1 – 1800 RPM
Spindle Motor: 48 HP
Tailstock:
Taper: MT-6
Quill Diameter: 5.51″
General:
Power Requirement: 480v / 3 phase / 60 Hz
Machine Weight: 20,000 lbs. Approx.

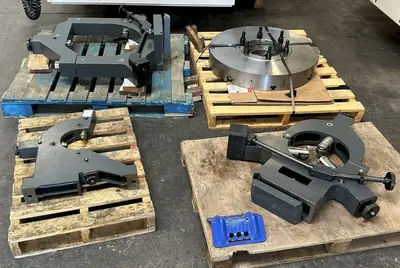

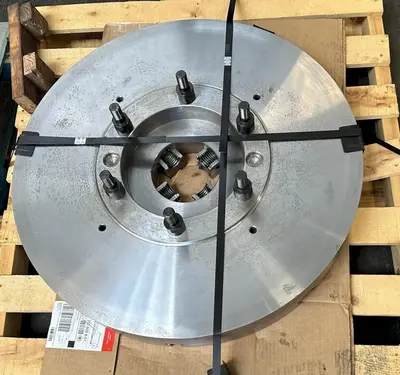

31.5″ 4-Jaw Chuck

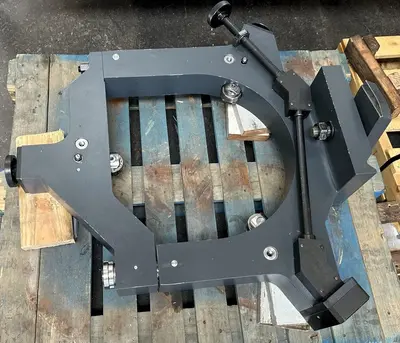

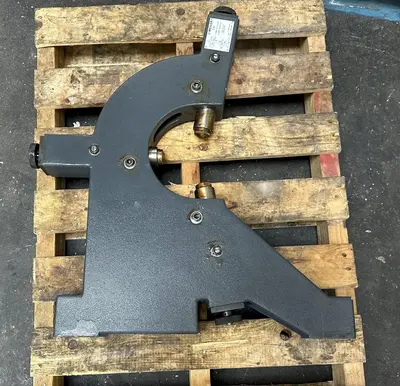

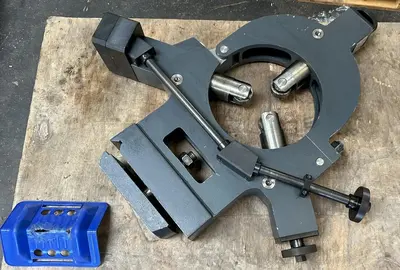

(2) Roller Steady Rest & (1) Follow Rest
Tailstock With Live Center
Parat Quick Change Tool Post With 2 Holders
Weiler Boring Bar Holder
Chip Conveyor
