USED REMCO SD-GEKKO 1530-304-14

Equipment Included

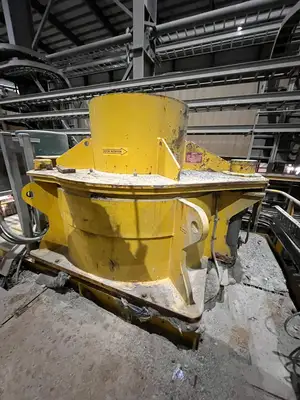

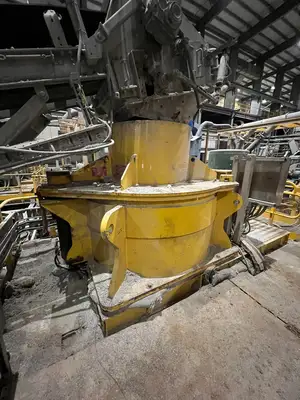

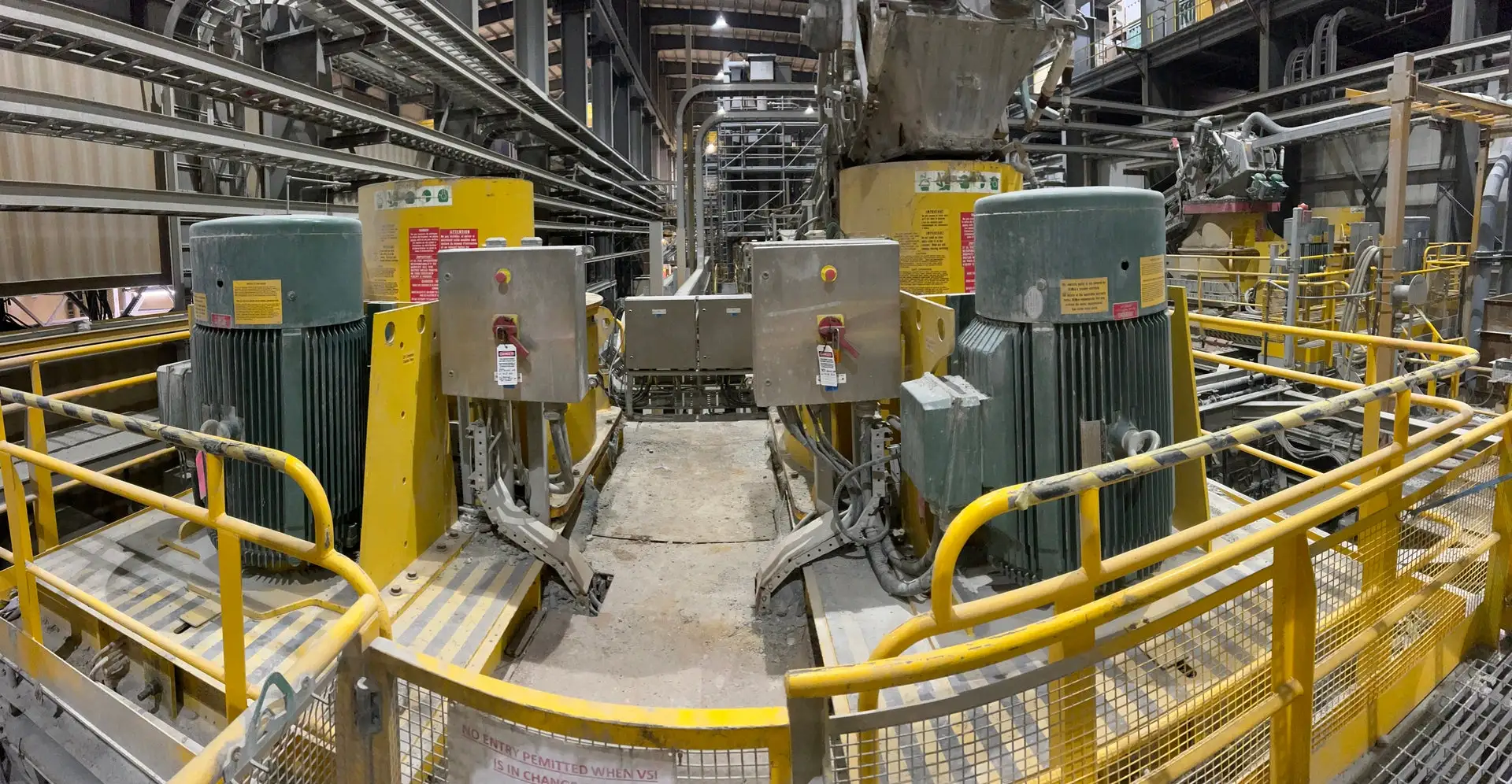

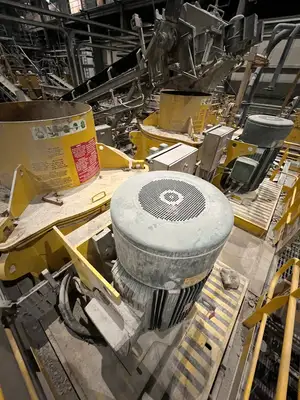

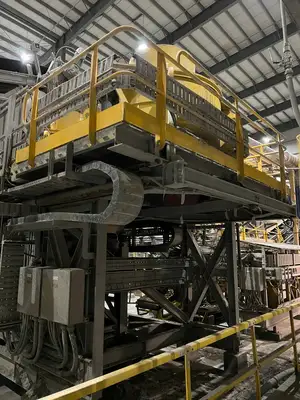

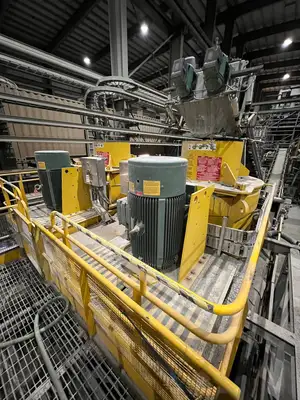

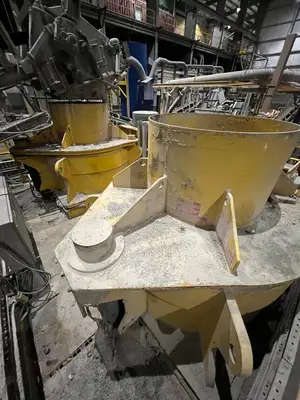

This product consists of 2 x 1530 OreMax VSI Crushers and 2 x 350HP Motors
Crusher Fabrication
All steel, HD fabricated construction with one motor mount
Crusher Base is 2" A36 steel plate
Four corner base-reinforcing gussets with lifting eyes, 2" thick
44" circular receiving hopper with feed diverter plate and two hopper wedge locks
Cast steel heavy-duty feed tube assembly with feed diverter

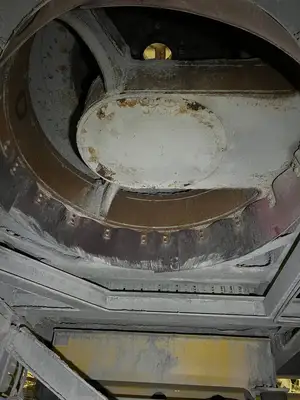

Two-piece autogenetic crushing chamber with 16 deep well pockets & AR gusset protectors
One 30" 4- port, 14" open-sided rotor with all wear parts and taper lock
Oil lubricated main shaft assembly with radial bearings and oil lines
Oil lubrication system complete with oil tank, oil pump and safety devices

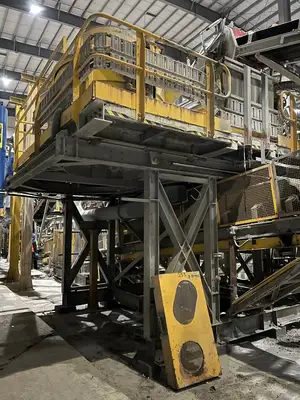

Fabricated support frame with four self-centering laminated rubber isolation mounts
ACME thread, single-shaft v-belt adjustment rod and tensioner
Hydraulically lifted feed hopper assembly with lift cylinder and hydraulic ram
Specifications
Capacity: Rated up to 235 metric TPH of minus 2" feed (when powered by 225 kW)

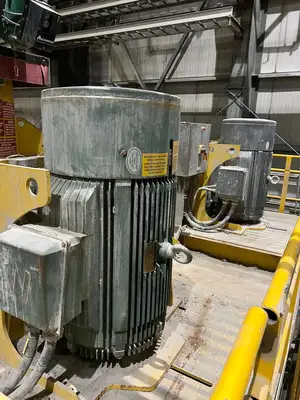

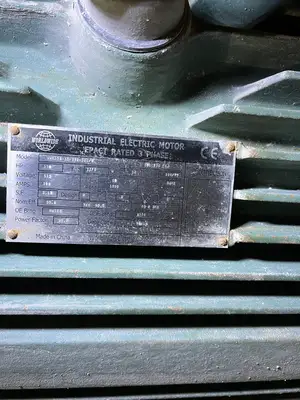

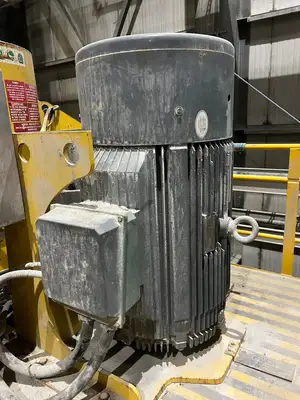

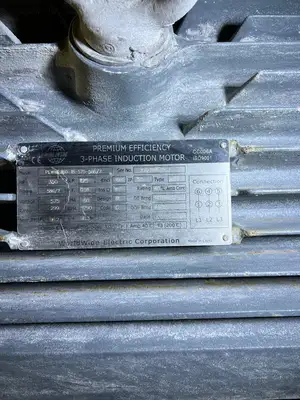

Horsepower: 350 hp
Motor Speed: 1790 rpm
Volts: 575 V, 3-ph
Current: 301 A
Rated Torque: 1157.29 lb.-ft.
Locked Rotor Torque: 212%
Breakdown Torque: 287%
