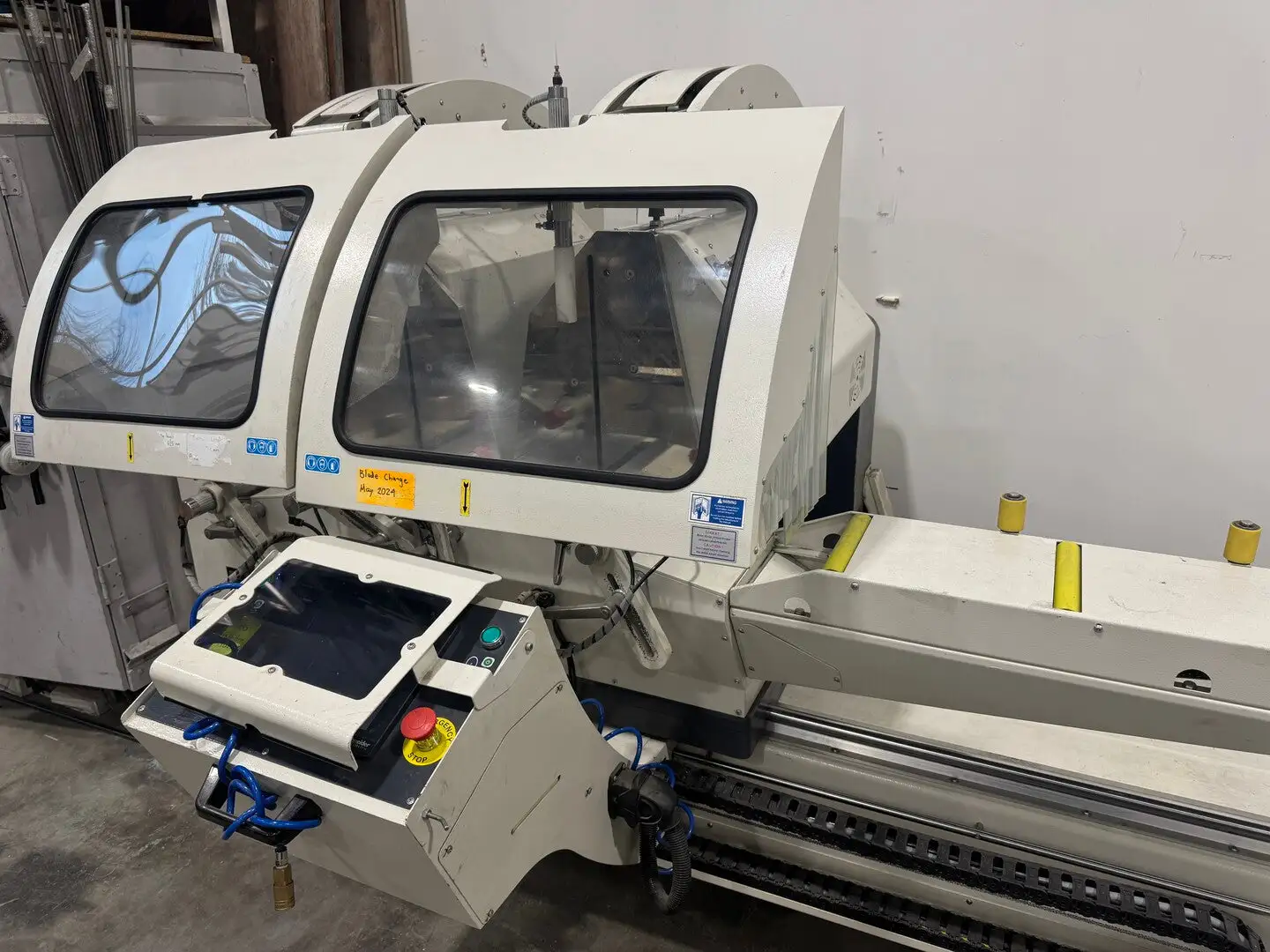

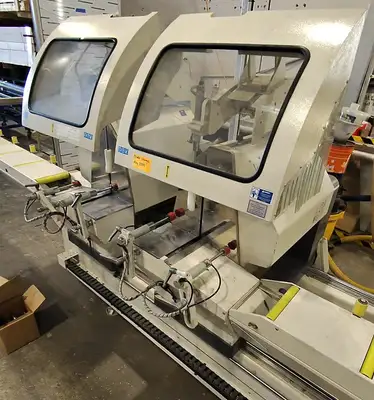

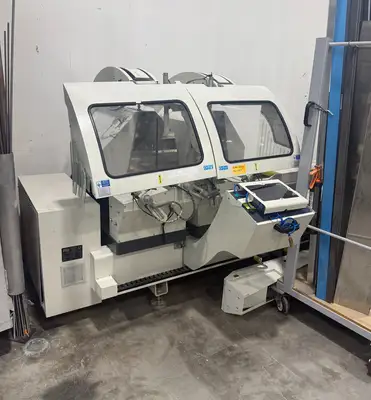

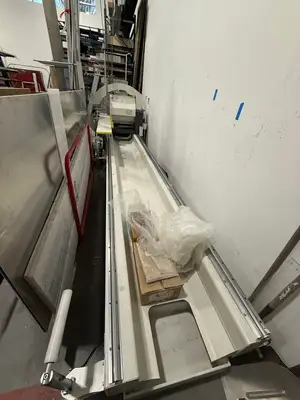

USED 2020 OZ MACHINE GEMINI VI

Horsepower: 12 hp
Voltage: 220 volts
Phase: 3-phase
3 axis servo controlled double head cutting machine with 24" saw blades, is ideal for cutting aluminum and PVC profiles in various angles and thickness.
Min. cutting length with double head 90° & 45°: 18 7/8" (480mm) / 28 3/8" (720mm)
Max. cutting length with double head 90° & 45°: 198 13/16" / 198 13/16" (5050mm)
X axis positioning speed 1575" (40000mm)/min
Maximum internal rotation angle 45°
Maximum external rotation angle -22.5°
Saw blade diameter 24" (600mm)
Saw blade motor power 3 kW
Profile height measurement
Cutting zone protection covers

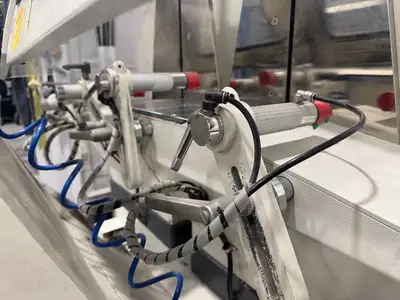

Horizontal and Vertical pneumatic clamps
Automatic intermediate profile support (2 pcs)
Cooling lubrication system
Manual adjustment saw blade stroke distance
Saw blade stroke speed adjustment
Slicing mode
Remote access
Data transfer via remote network connection, Ethernet and USB

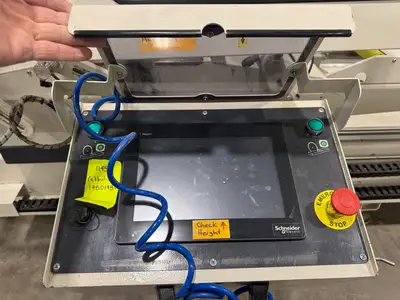

Smart Touchscreen Panel PC
Maximum profile loading length 314" (8000mm)
Standard Equipment
Hydro-pneumatic cutting feed adjustment
Electro control X axis
Carbide saw blade (2 pcs)

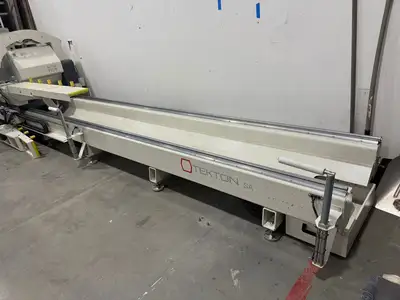

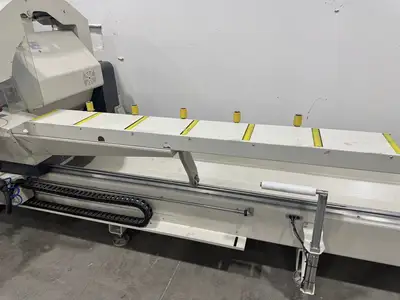

Roller conveyor on moving head
Optional Equipment
Vacuum Cleaner for chips
Roller conveyor on fixed head
