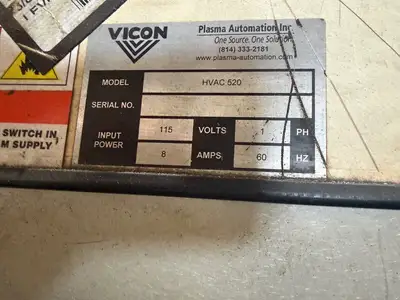

USED VICON HVAC 520

Table Size: 5' x 20'
CNC: Yes
Amps: 8 amps
Voltage: 115 volts
Phase: Single-phase

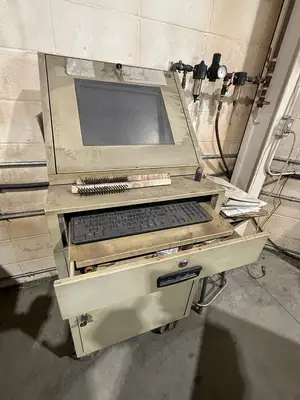

Come with Hypertherm PowerMax 85A power supply and has Vicon's Revision2 V 3.4 Vicon cutting system controller

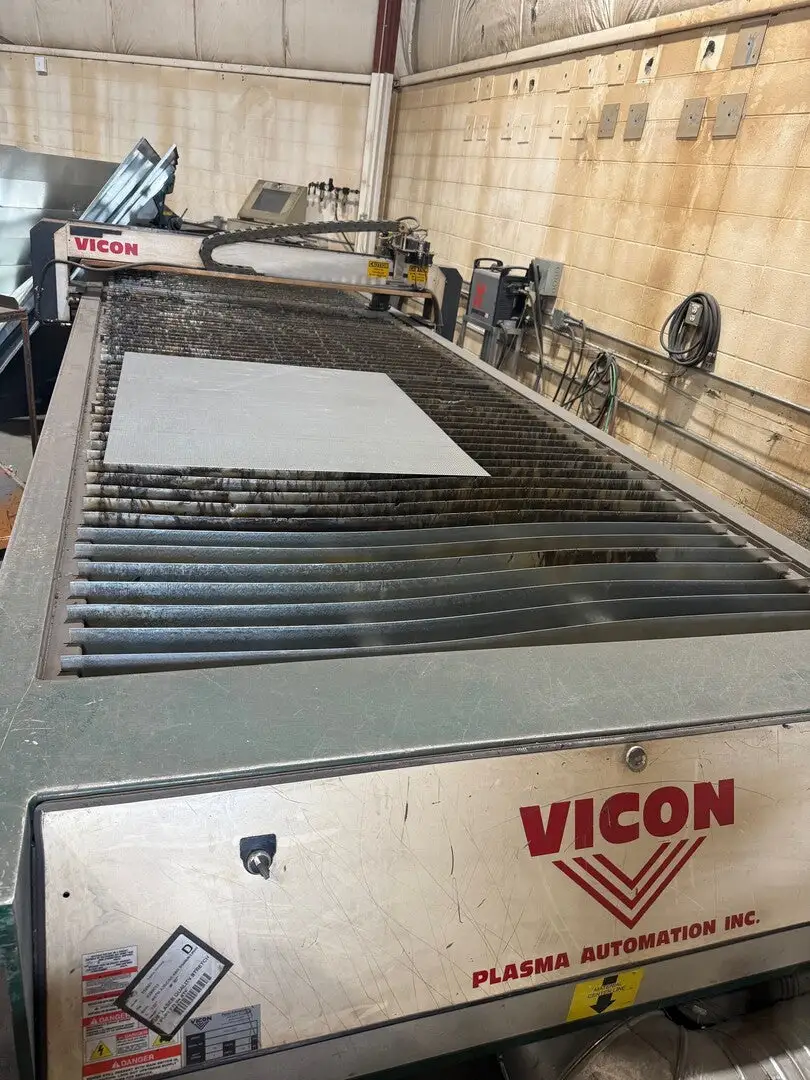

A Complete System Consisting of the Cutting Table, PC Controller, Cutting Software, Plasma Power Supply, and Liner Router Cutting System

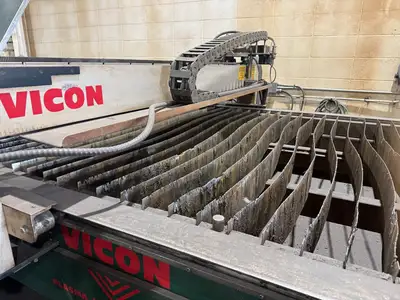

A Unique One Piece Cutting Table - No assembly is required, no rails

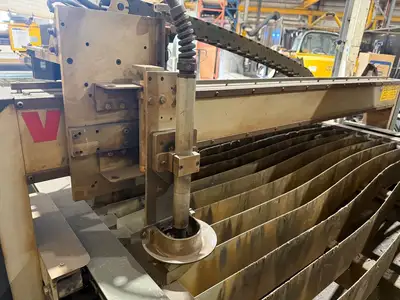

Dual Rack & Pinion Drive
Automatic Exhaust Signal for customer supplied ventilation system
Effective Cutting Area: 5' x 20' (standard)
Material Capacity: 28-gauge to 1/2" thick plate

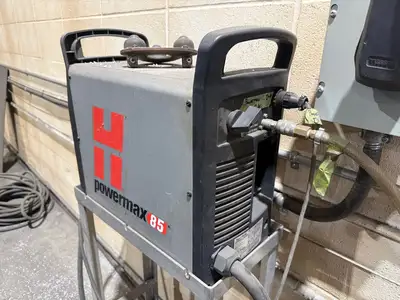

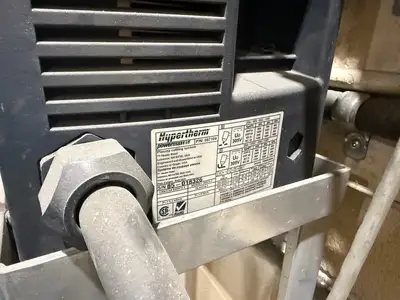

Hypertherm PowerMax 85:
Input voltages:
200-480 V, 1-PH, 50/60 Hz
200-600 V, 3-PH, 50/60 Hz
Input current @12.2 kW:
200/208/240/480 V, 1-PH, 70/68/58/29 A
200/208/240/480/600 V, 3-PH, 42/40/35/18/17 A
Output current: 25-85 A
Rated output voltage: 143 VDC
Duty cycle @ 40°C (104°F):
60% @ 85 A, 230-600 V, 3-PH
60% @ 85 A, 480 V, 1-PH
50% @ 85 A, 240 V, 1-PH
50% @ 85 A, 200-208 V, 3-PH
40% @ 85 A, 200-208 V, 1-PH
100% @ 66 A, 230-600 V, 1/3-PH
Open circuit voltage (OCV): 305 VDC
