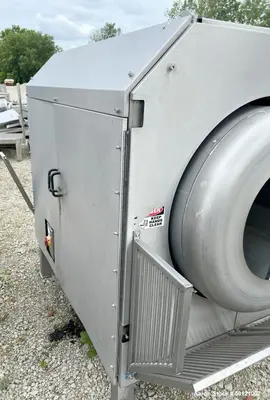

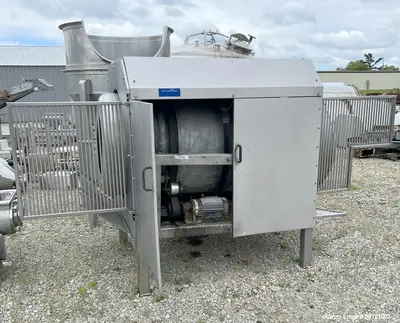

Used Stainless Steel Drum Tumbler / Mixer – 36" x 48", Belt-Driven

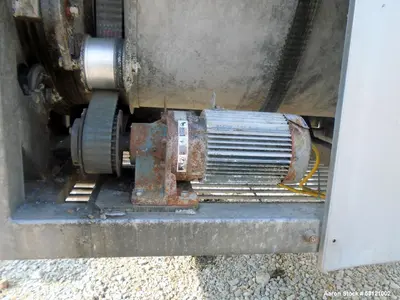

Used Drum Tumbler / Mixer, Stainless Steel. 6 Sidewall baffles. Spiral flight discharge. Belt driven. 36" Diameter x 48" long. Flight length approximate 56", flight height 3" tall, distance between each flight 3". Infeed diameter approximately 19". Outfeed diameter approximately 19". Drum belt driven by 2hp, 3/60/230/460 volt, 1740 rpm gear motor. Includes hopper, approximately 50" diameter, outlet 12" long x 3" wide. Mounted on stainless steel frame.

Used Equipment Facts About This Machine
Manufacturer Information:

Type: Drum Tumbler / Mixer

Condition: Used

Material: Stainless Steel

Description:
The Used Stainless Steel Drum Tumbler / Mixer is a high-performance industrial mixing system designed for efficient blending, tumbling, and mixing of powders, granules, and bulk materials. Featuring a 36-inch diameter drum with a 48-inch length, this unit is belt-driven by a 2 HP gear motor operating at 1740 RPM (3-phase, 60 Hz, 230/460V) for reliable and consistent mixing performance.

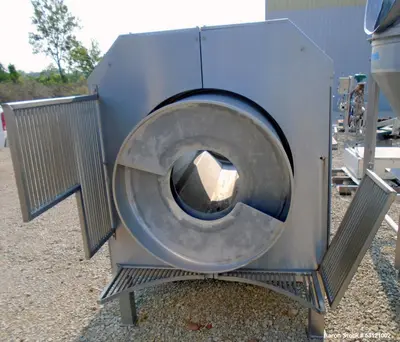

The drum is equipped with 6 sidewall baffles and a spiral flight discharge system, ensuring thorough mixing and controlled material flow. The flights measure approximately 56 inches in length, 3 inches tall, and 3 inches apart, optimizing mixing efficiency.

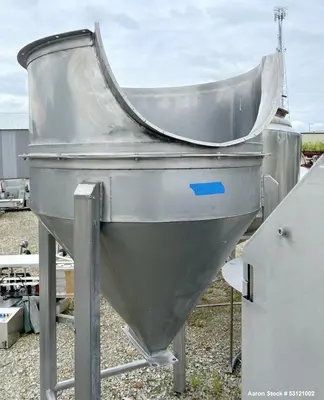

This unit includes a stainless steel hopper with an approximate 50-inch diameter and a 12" long x 3" wide outlet, allowing for smooth material transfer. The entire system is mounted on a durable stainless steel frame, making it ideal for food, pharmaceutical, chemical, and industrial mixing applications.
Specifications:

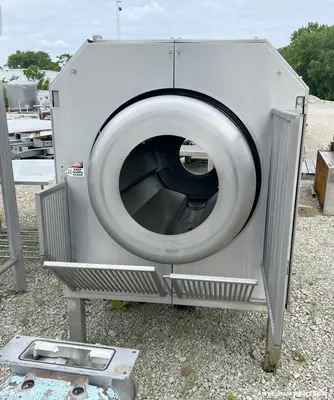

Drum Dimensions: 36" Diameter x 48" Long

Flight System:

Flight Length: Approx. 56"

Flight Height: 3" Tall

Distance Between Flights: 3"

Sidewall Baffles: 6

Infeed Diameter: Approx. 19"

Outfeed Diameter: Approx. 19"

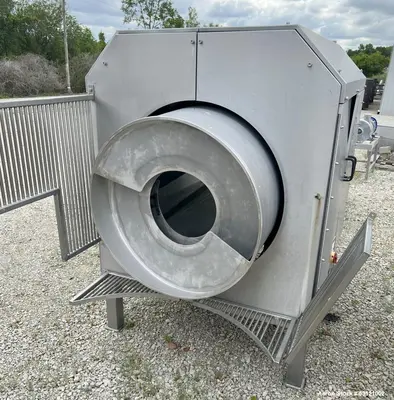

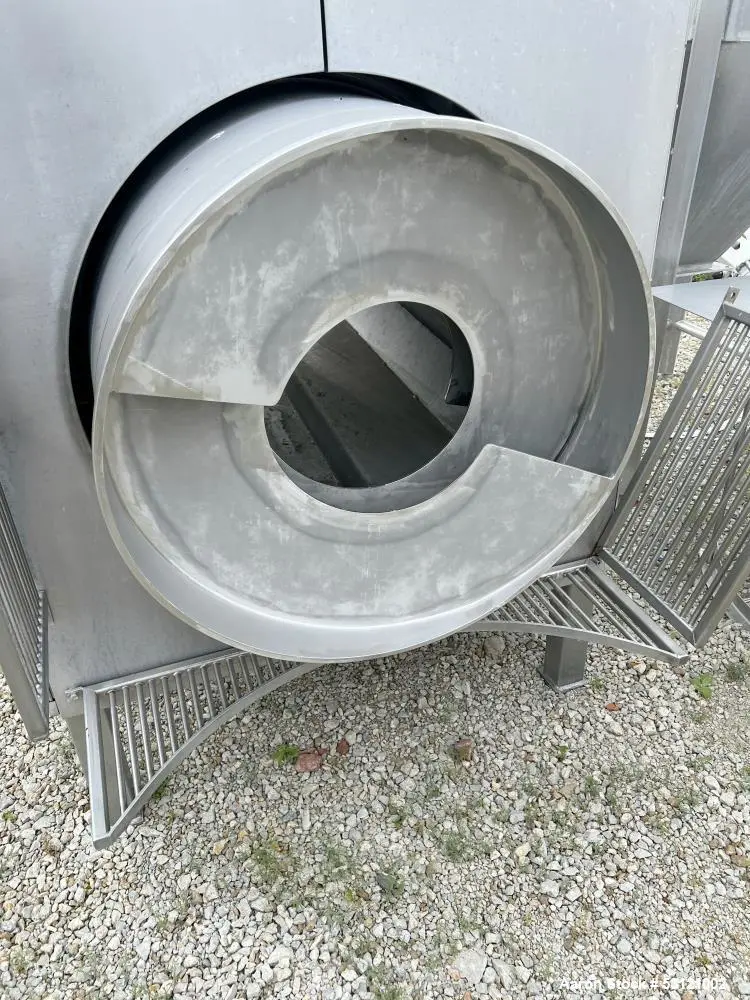

Discharge System: Spiral Flight Discharge

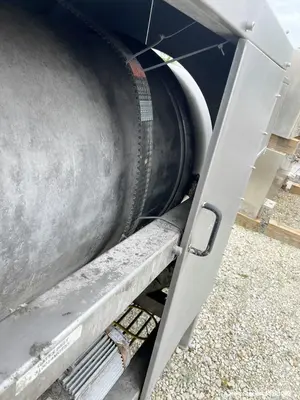

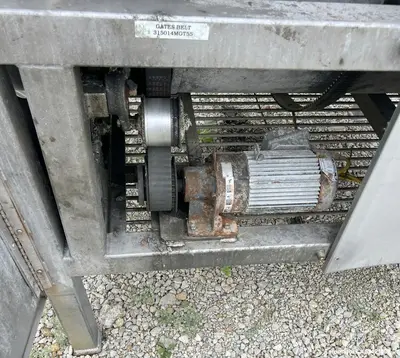

Drive System: Belt-driven

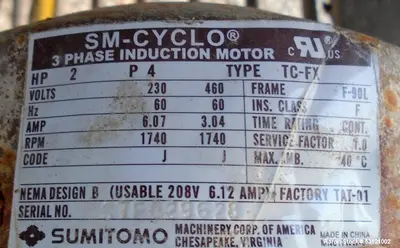

Motor:

Power: 2 HP Gear Motor

Voltage: 230/460V, 3-phase, 60 Hz

Speed: 1740 RPM

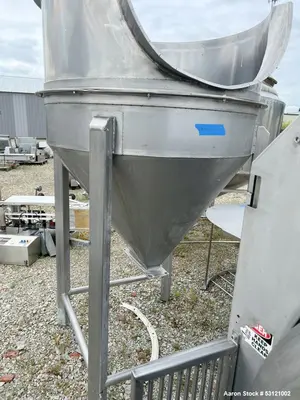

Hopper Dimensions: Approx. 50" Diameter

Hopper Outlet: 12" Long x 3" Wide

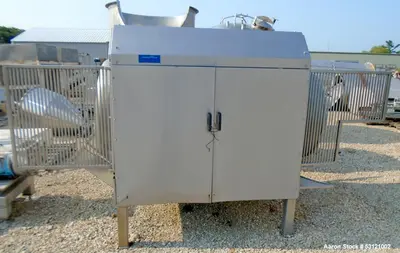

Mounting: Stainless Steel Frame

Condition: Used, Good Working Order

Applications:

Powder and granule mixing
Food processing and ingredient blending
Pharmaceutical dry material mixing
Chemical and industrial material processing
Bulk solids blending and tumbling
Recycling and material conditioning

Compatible Uses (Industries & Facilities):

Food & Beverage Processing (spices, flour, sugar, cocoa, etc.)

Pharmaceutical Manufacturing (tablet granules, API blending)

Chemical & Industrial Processing (powders, plastics, granules)

Nutraceuticals & Dietary Supplements (protein powders, vitamins)
Recycling & Bulk Material Handling
