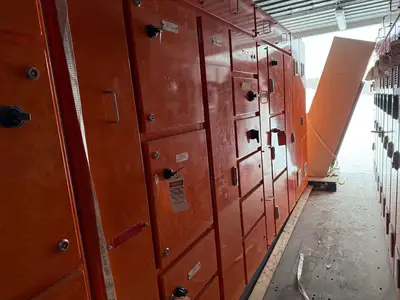

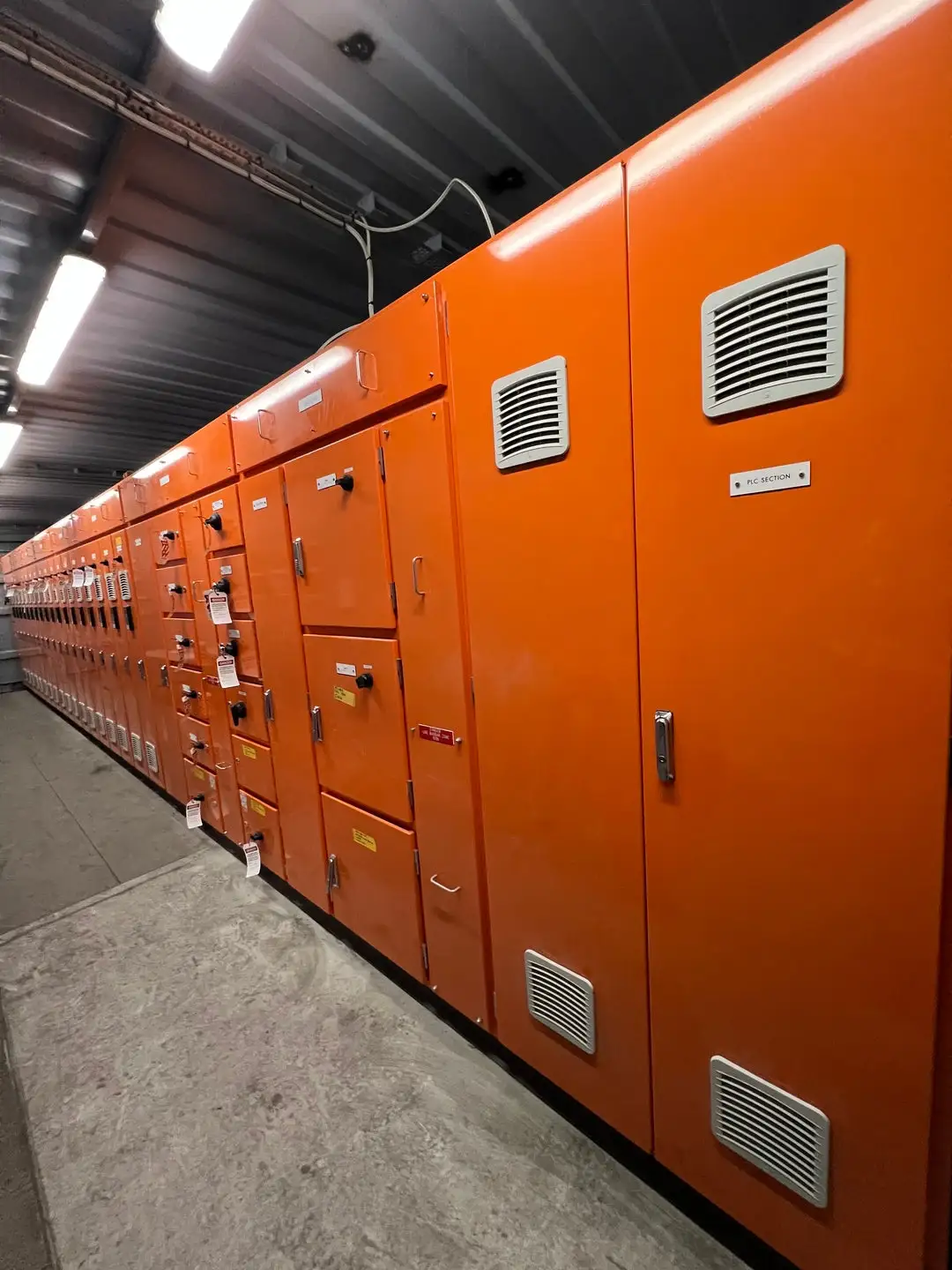

800A Motor Control Center MCC, 575V, 800A Bus, Form 4A, IP42 Enclosure

Original Designation: MCC-C Tertiary Crushing & Screens area
Bus Voltage: 575 V
Short Circuit Rating: 25 kA rms Sym
Board Rated: 800 A
Horizontal Busbar Rated: 800 A
Vertical Busbar Rated: 800 A
Form: 4A
Enclosure: IP42 custom built
Main Equipment Summary
Main Switch: (1) 800 A switch
Motor Control Assemblies:
(1) 250 kW, free standing VSD, external to MCC sections
(2) 0.18 kW
(6) 7.5 kW
(2) 37 kW
(4) 1.5 kW
(2) 0.75 kW
(2) 0.12 kW
(2) 6 kW
(1) 5.5 kW
(1) 2.4 kW
(1) 3 kW
Supply Sections:
(1) 4 kVA, 575 VAC to 110 VAC Control Transformer
(1) 575 VAC to 24 VDC Control Power Supply
