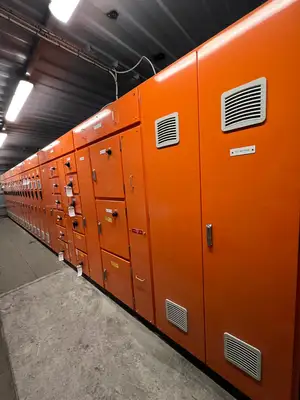

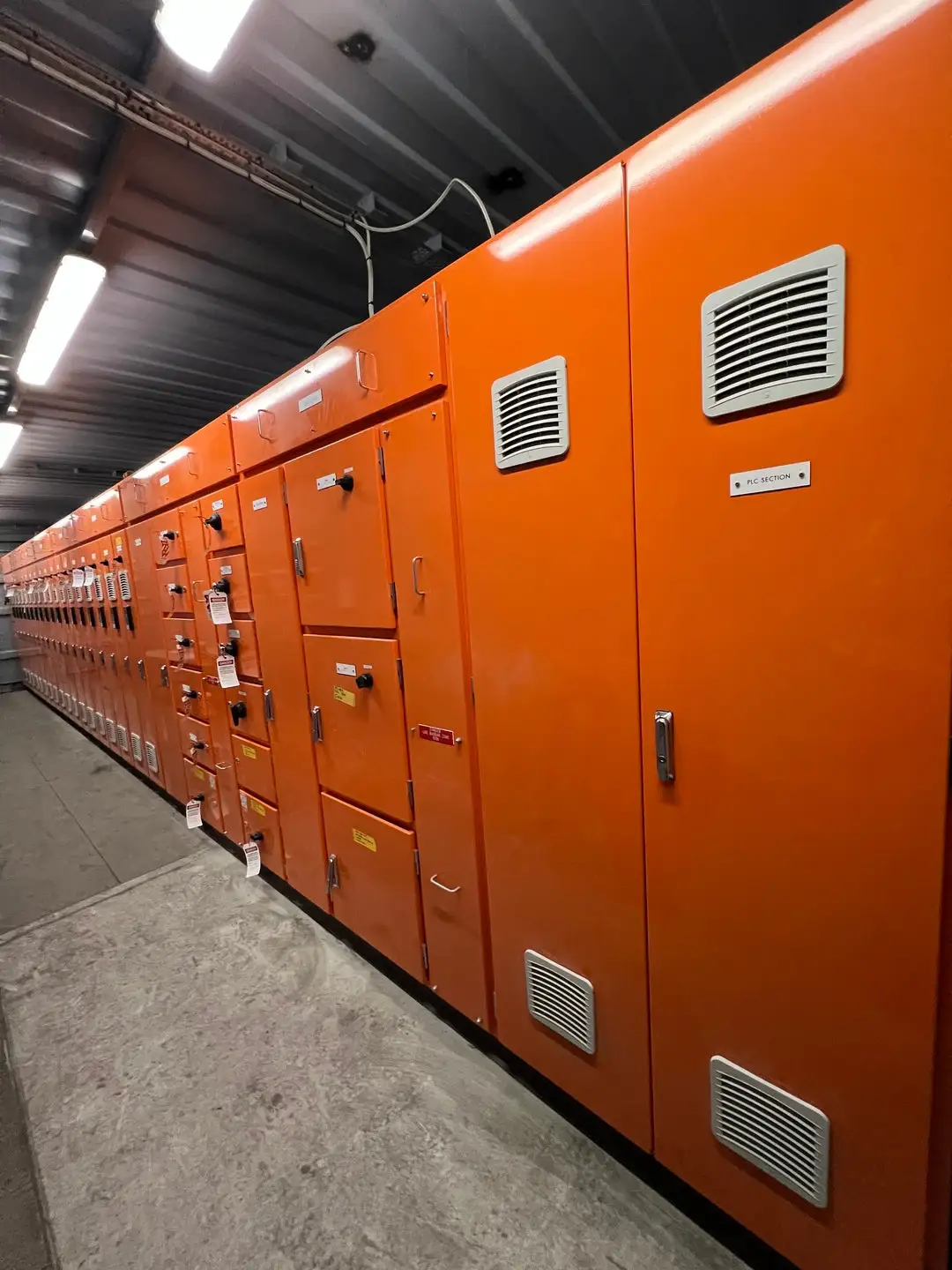

800A Motor Control Center MCC, 575V, 800A Bus, Form 4A, IP42 Enclosure

Original Designation: MCC-P Flotation area
Bus Voltage: 575 V
Short Circuit Rating: 25 kA rms Sym
Board Rated: 800 A
Horizontal Busbar Rated: 800 A
Vertical Busbar Rated: 800 A
Form: 4A

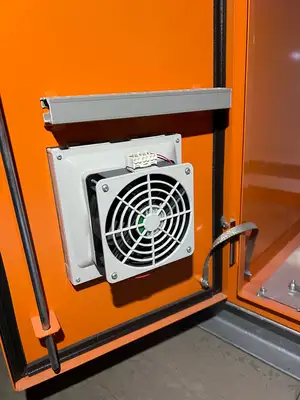

Enclosure: IP42 custom built
Main Equipment Summary

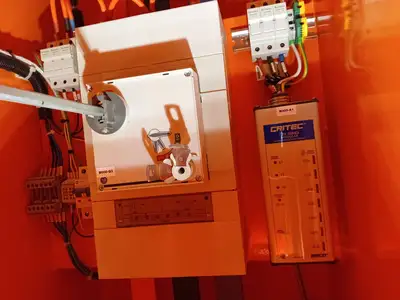

Main Switch: (1) 600 A switch

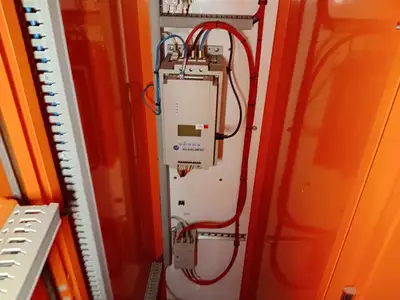

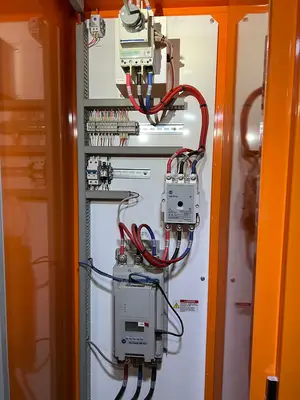

Motor Control Assemblies:
(1) 30 kW
(4) 0.4 kW
(3) 7.5 kW
(9) 15 kW
(1) 1.1 kW
Supply Sections:

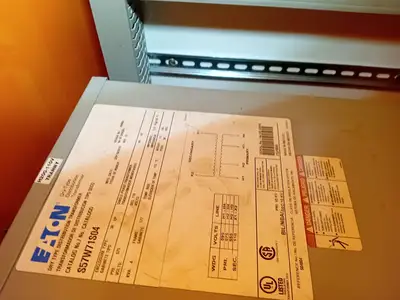

(1) 4 kVA, 575 VAC to 110 VAC Control Transformer
(2) 575 VAC to 24 VDC Control Power Supply
