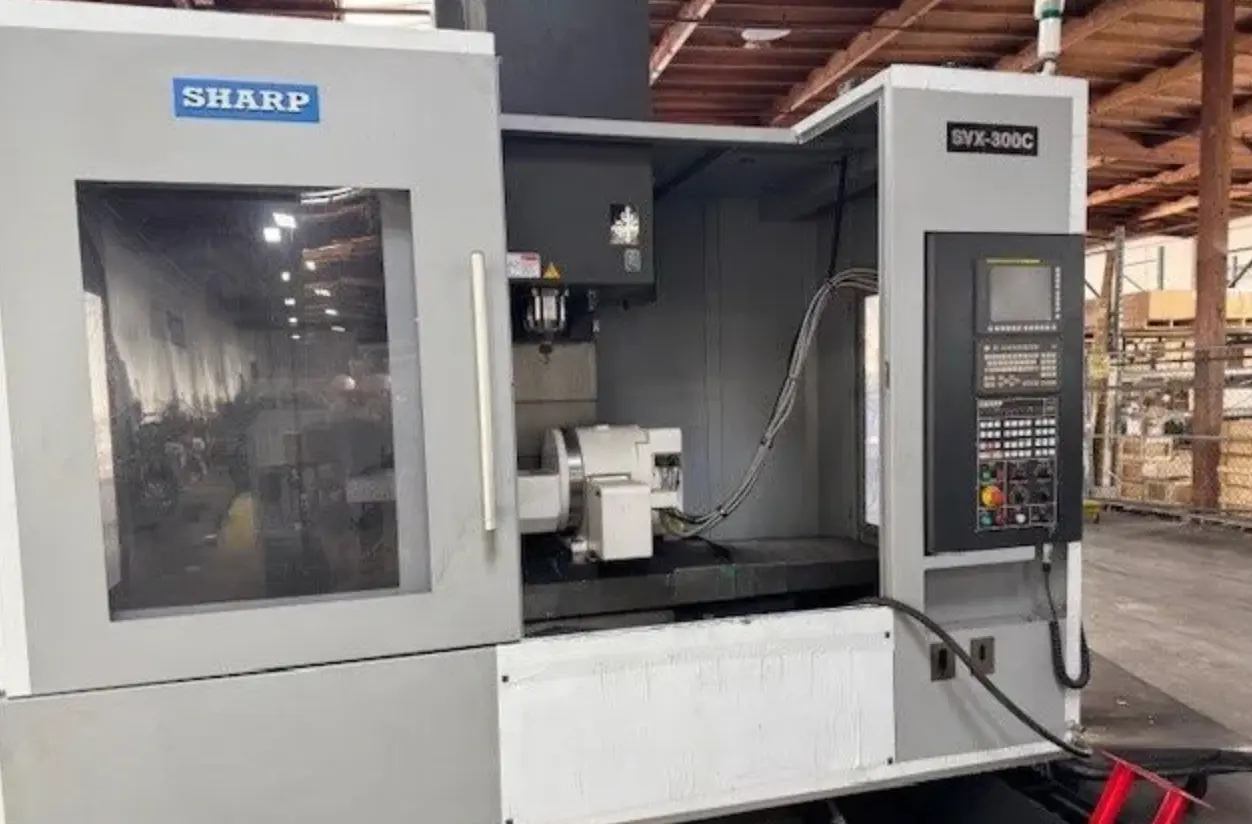

Used Vertical Machining Center with 30" X, 23.6" Y, 19.7" Z. Features a 15 hp motor, 12,000 RPM, 24 ATC, 5 Axis Trunnion Rotary Table, Fanuc CNC Control, and CT-40 Taper. Includes chip conveyor, USB port, and spindle chiller.
| X | 30" | 762 mm |
| Y | 23.6" | 599.44 mm |
| Z | 19.7" | 500.38 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| # Axis | 5 | 5 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
5 Axis Trunnion Rotary Table
24 Position Side Mount Toolchanger
Chip Conveyor
Fanuc CNC Control
CT-40 "Big Plus" Spindle Taper
Coolant Through Spindle Prepped
USB Port
Rigid Tap
Spindle Chiller
