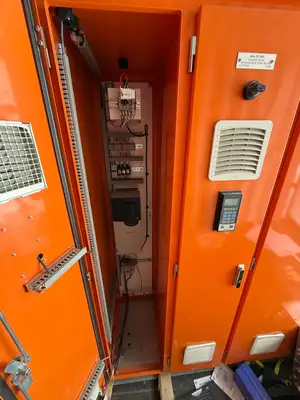

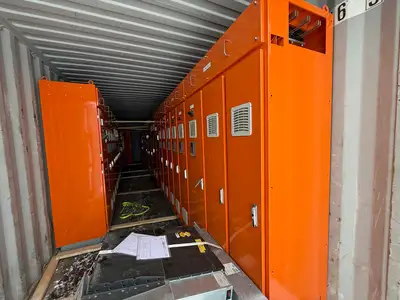

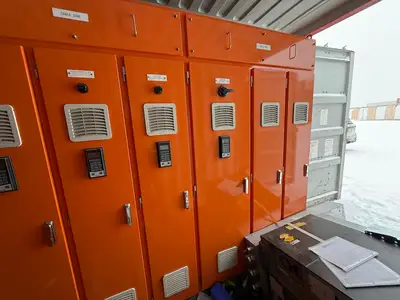

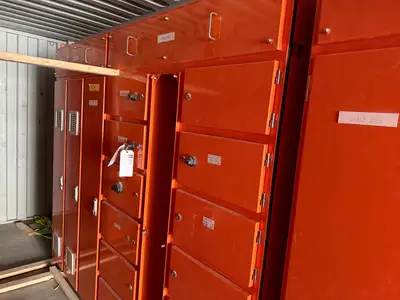

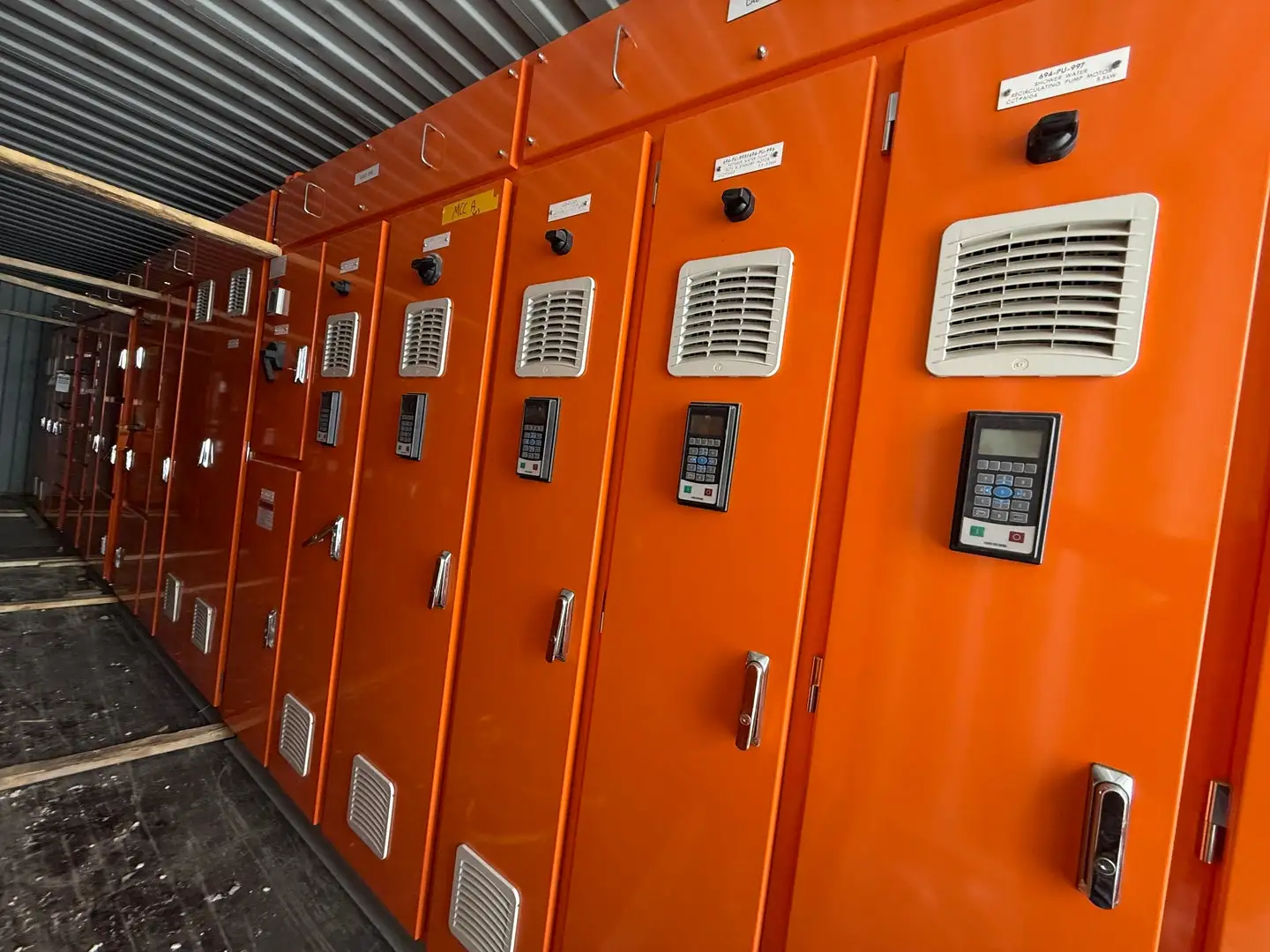

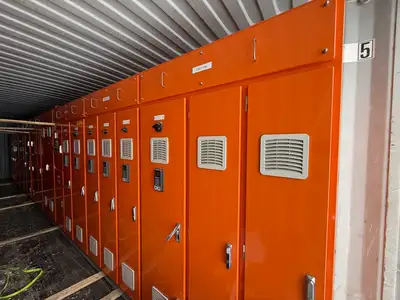

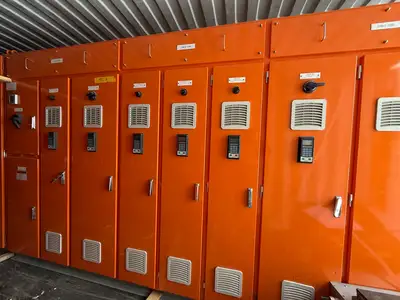

600A Motor Control Center MCC, 575V, 800A Bus, Form 4A, IP42 Enclosure

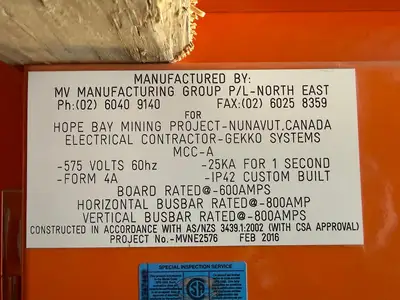

Original Designation: MCC-A Primary Crushing area
Bus Voltage: 575 V
Short Circuit Rating: 25 kA rms Sym
Board Rated: 600 A
Horizontal Busbar Rated: 800 A
Vertical Busbar Rated: 800 A
Form: 4A
Enclosure: IP42 custom built
Main Equipment Summary

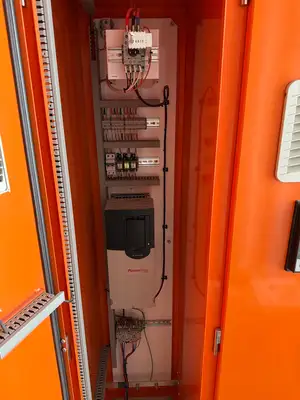

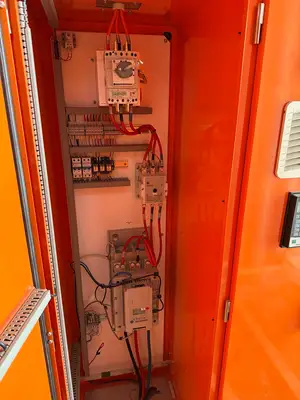

Motor Control Assemblies:
(2) 30 kW
(2) 5.5 kW
(1) 110 kW
(1) 0.18 kW
(1) 22 kW

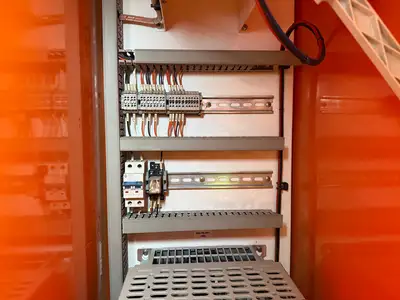

Supply Sections:
4 kVA, 575 VAC to 110 VAC Control Transformer
575 VAC to 24 VDC Control Power Supply
