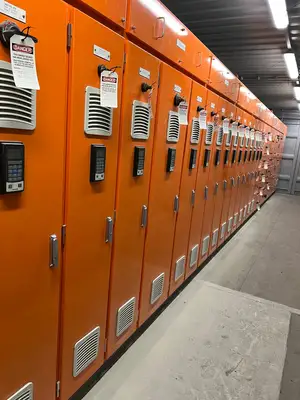

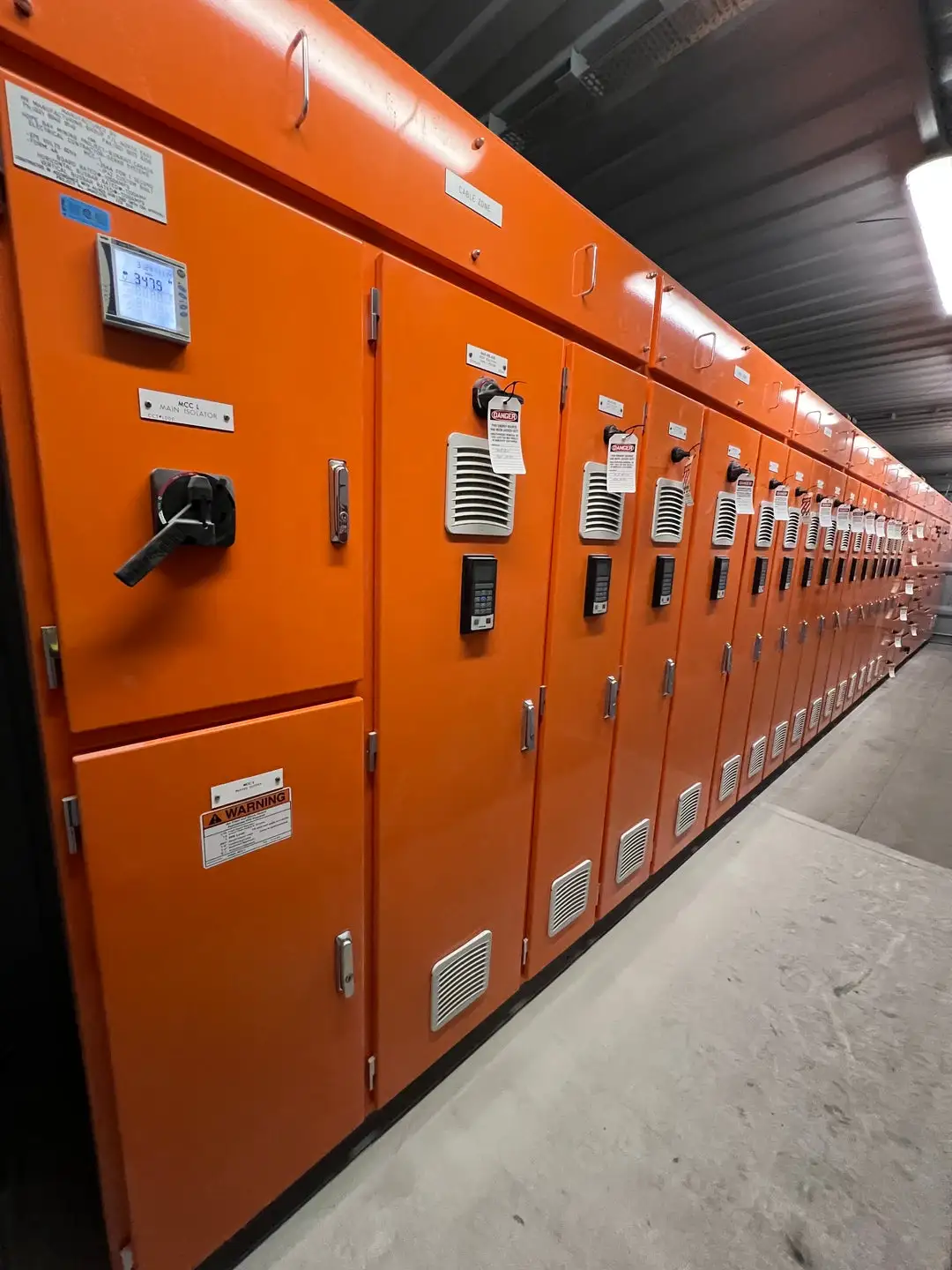

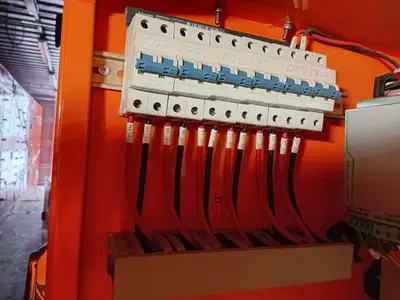

1200A Motor Control Center MCC, 575V, 1200A Bus, Form 4A, IP42 Enclosure

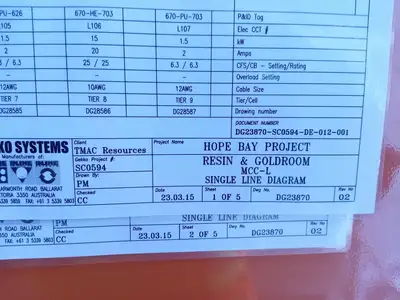

Original Designation: MCC-L Resin & Goldroom area
Bus Voltage: 575 V
Short Circuit Rating: 25 kA rms Sym
Board Rated: 1200 A
Horizontal Busbar Rated: 1200 A
Vertical Busbar Rated: 1200 A
Form: 4A
Enclosure: IP42 custom built
**Optional Add-On**: Electrical Container for this MCC can be purchased separately
Main Equipment Summary
Main Switch: (1) 1200 A switch

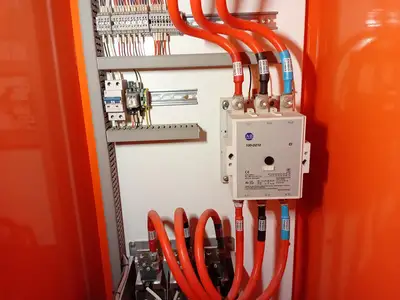

Motor Control Assemblies:
(2) 150 kW
(6) 1.5 kW
(1) 15 kW
(1) 3.7 kW
(1) 37 kW
(1) 18 kW

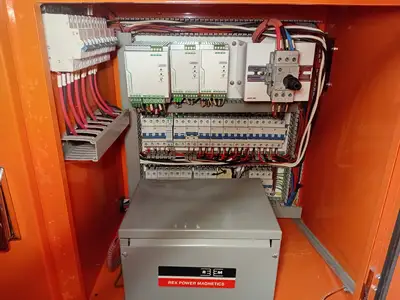

Supply Sections:

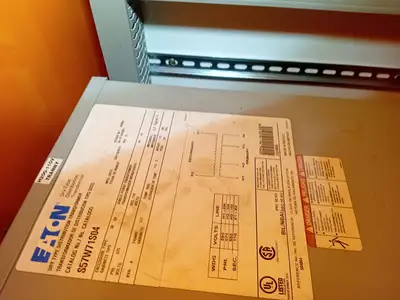

(1) 4 kVA, 575 VAC to 110 VAC Control Transformer
(1) 575 VAC to 24 VDC Control Power Supply
