USED 2001 3C FRANCE HFA

Overview
Manufacturer:
3C France
Model:
HFA
Year:
2001
Stock #:
H4504
Description

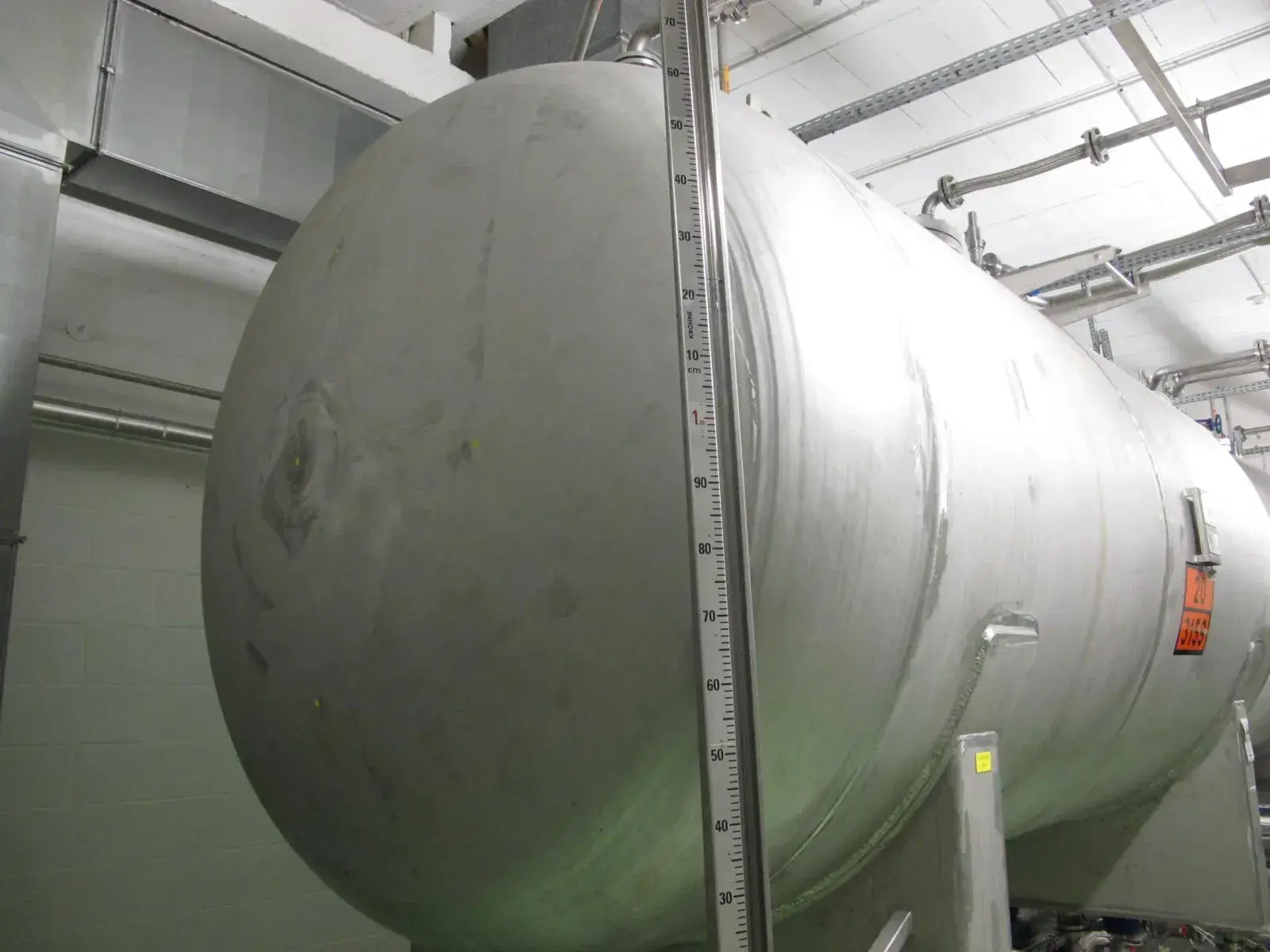

Used 3C France model HFA stainless steel horizontal 14 bar pressure vacuum tank.

- Manufacturer: 3C France, Sas, France (https://www.3c-france.com)
- Model: HSA vertical
- Capacity: approx. 17,000 litres
- Pressures: -1 bar/14 bar pressure, 21 bar tested pressure, calculated according CODAP 95, cat. B
- Construction material: stainless steel AISI 304
- Construction type: welded dished sides
- Dimensions: 2200 mm diameter × approx. 2875 mm height × 5000 mm length, wall thickness 15,0 mm, weight: approx. 6000 kg
- Mounted on: stainless steel saddles plus included stainless steel frame with (4) strain gauge scales
- Others: Comprehensive technical documentation available

Specifications
Capacity17,000 L4,490.9 gal
