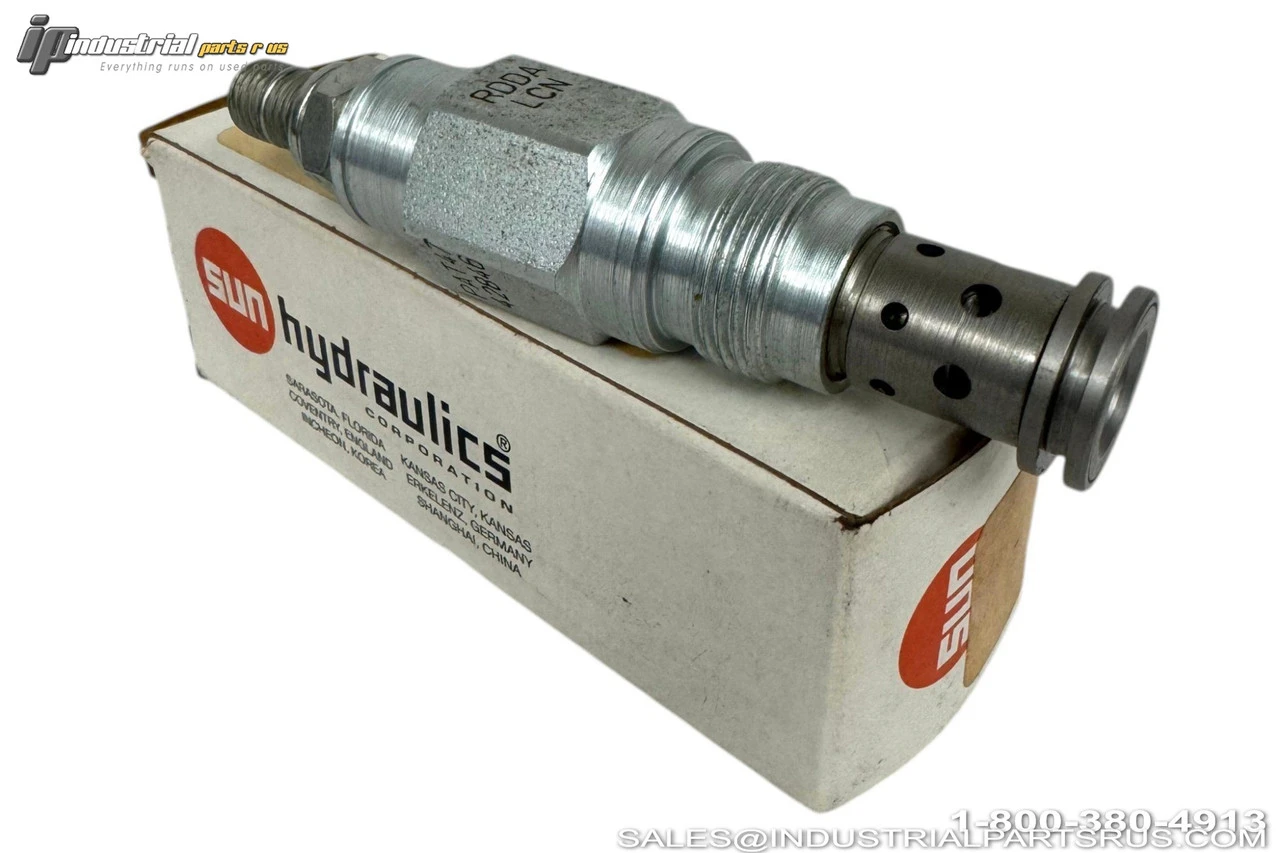

NEW SUN HYDRAULICS RDDA-LCN

The Sun Hydraulics Rdda-lcn is a direct-acting relief cartridge valve designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve throttles flow to limit pressure rise when inlet pressure reaches the valve setting, providing smooth and quiet operation with essentially zero leakage.
Specification
Value
Brand
Sun Hydraulics
Model/Part Number
Rdda-lcn
Equipment Type
Hydraulic Valve
Valve Type
Direct-Acting Relief
Capacity
25 GPM (95 L/min)
Cavity
T-10A
Series
1
Adjustment Type
Standard Screw Adjustment
Pressure Range
1000-6000 PSI (70-420 bar)
Standard Setting
1000 PSI (70 bar)
Max Operating Pressure
5000 PSI (350 bar)
Seal Material
Buna-N (NBR)
Body Material
Steel
Response Time
2 ms (typical)
Max Valve Leakage
10 drops/min (0.7 cc/min)
Oil Viscosity Range
2.8-380 cSt
Contamination Level Max
19/17/14 ISO 4406
Installation Torque
30-35 lbf-ft (41-47 Nm)
Weight
0.37 lbs (190 g)
We warranty all items for 30 days from date of purchase.
