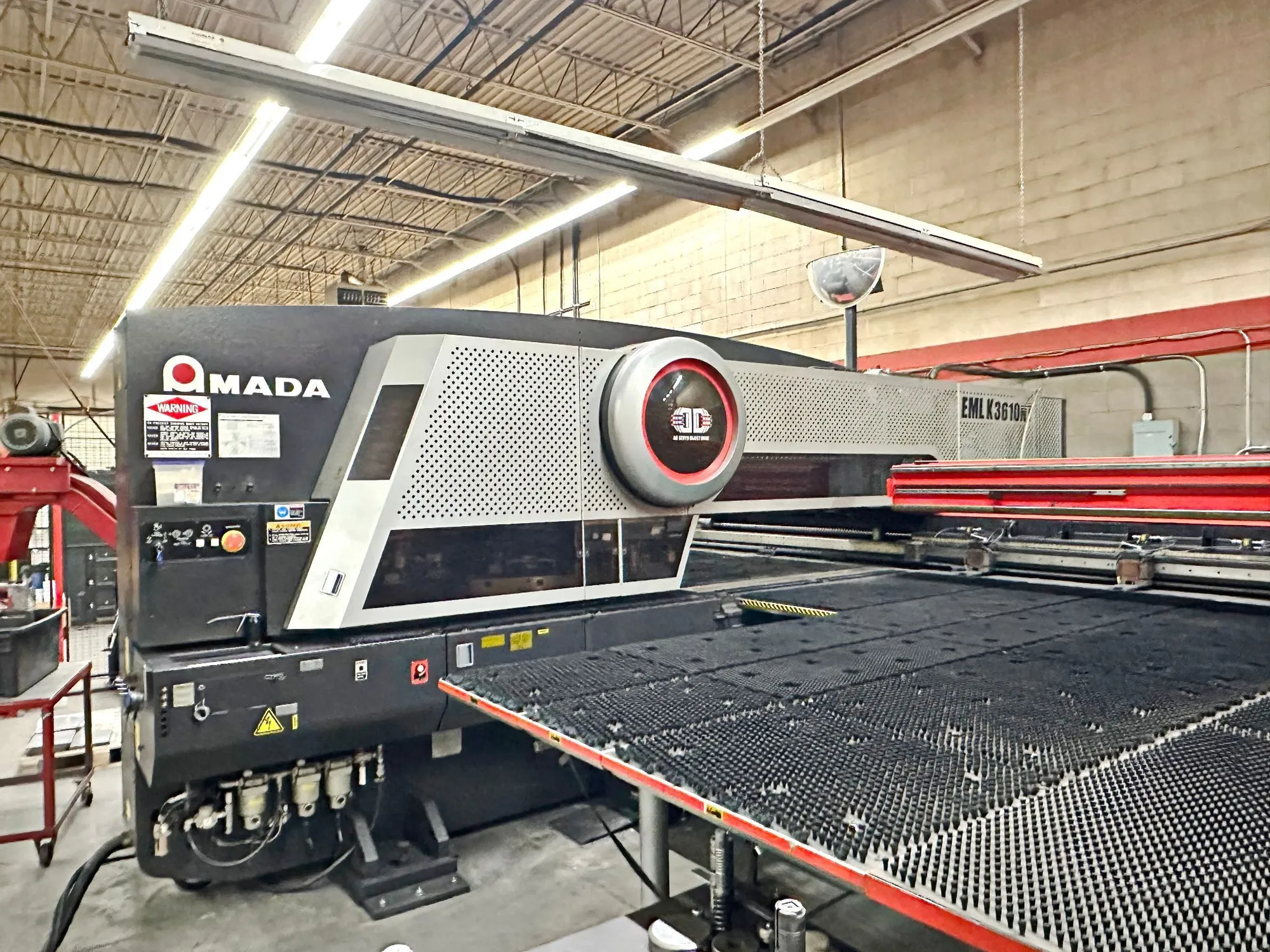

2012 Amada EMLK3610NT CO2 CNC Laser Punch Combo Press, 4 kW, 58-Station King Turret, 4 Auto Index Stations, Amada AS III MP Multi-Shelf Automatic Storage System W/ Load And Unload, Dual Pallet Material Handling, Edge Lifter, Magnetic Separator, Downdraft Dust Collection System, Industrial Water Chiller, Air Knife
| Tonnage | 33 T | 29.937 t |
| # Turret Stations | 58 | 58 |
| Wattage | 4,000 W | 4,000 W |
| X-Axis (Laser/Punch) | 100" / 120" | 100" / 120" |
| Y-Axis (Laser/Punch) | 60" / 72" | 60" / 72" |
| Max Sheet-L | 120" | 3,048 mm |
| Max Sheet-W | 60" | 1,524 mm |
| Max Material Weight | 330 lb | 149.7 kg |
| Max Hit Rate (1” Centers) | 400 hit/min. | 400 hit/min. |
| Stroke Rate (Marking) | 1,800 hit/min. | 1,800 hit/min. |
| X-Axis Speed | 3,937 in/min. | 100 m/min. |
| Y-Axis Speed | 3,149 in/min. | 80 m/min. |
| X/Y Simultaneous | 5,051 in/min. | 128.3 m/min. |
| Punching Accuracy | ±0.004" | ±0.004" |
| Positioning Accuracy | ±0.00012" / 39.37" | ±0.00012" / 39.37" |
| Repeatability | ±0.00027" | ±0.00027" |
| Made In | Japan | Japan |
| Control | CNC (AMNC/PC) | CNC (AMNC/PC) |
| Dimensions | 200" X 160" X 105" (Approx.) | 200" X 160" X 105" (Approx.) |
| Weight | 66,139 lb | 66,139 lb |
4 kW CO₂ laser (AF-4000E)
58-station king turret w/ 4 auto index stations
Amada AS III MP multi-shelf automatic storage system w/ load & unload
Dual pallet material handling system
Edge lifter sheet separation
Magnetic separator
Air knife sheet separation
Downdraft dust collection system
Orion industrial water chiller
Full safety enclosure w/ light curtains
