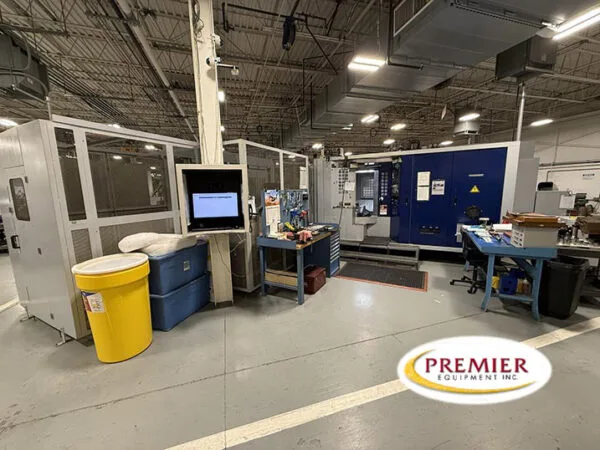

MORI SEIKI MH503 (2-Mach / 18 Pallet System) – 2005

MORI-SEIKI MH-503 (2-Machines) TWO HORIZONTAL MACHINING CENTERS W/18 PALLET SYSTEM

PALLET SIZE ………………….. 19.7″ X 19.7″

MAX WORKPIECE SWING DIA. HEIGHT … 35.4″ X 35.4″

TABLE SURFACE TO SPINDLE CENTER … 2.0″ – 27.6″

TABLE CENTER TO SPINDLE GAGE PLANE 5.9″ – 35.4″

NUMBER OF PALLETS EACH MACHINE …. 2 PALLETS

PALLET SYSTEM ………………… 18 PALLETS

TABLE LOAD CAPACITY …………… 2,200 LBS.

AXIS TRAVEL X – AXIS ………….. 31.5″

Y – AXIS …………………….. 25.6″

Z – AXIS …………………….. 29.5″

TABLE INDEXING ……………….. 001 INDEX

SPINDLE DRIVE MOTOR …………… 25 HP AC (2 GEAR RANGE)

SPINDLE TAPER ………………… #50 CAT

MAX SPINDLE SPEED OF MACHINE ONE .. 15,000 RPM

MAX SPINDLE SPEED OF MACHINE TWO .. 6,000 RPM

AUTO TOOL CHANGE CAPACITY ……… 120 ATC EACH MACHINE

FANUC MSC502 CNC CONTROLS ON EACH MACHINE

RENISHAW PART & TOOL PROBE FOR EACH MACHINE

THRU SPINDLE COOLANT

TWO CHIP BLASTER HIGH PRESSURE COOLANT SYSTEMS

SPINDLE CHILLERS FOR EACH MACHINE

FULL ENCLOSURE

EXTERNAL CHIP CONVEYORS FOR EACH MACHINE

240 OVERALL TOOL CAPACITY BETWEEN THE TWO MACHINES

PREPARATION FOR D’ANDREA ATTACHMENTS ON ONE MACHINE

WITH MULTIPLE D’ANDREA HEADS

18 STATION PALLET POOL MODEL: MH503LPP W/FANUC POWER MATE
