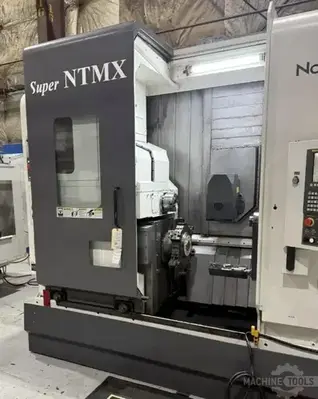

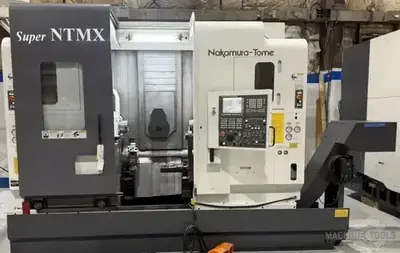

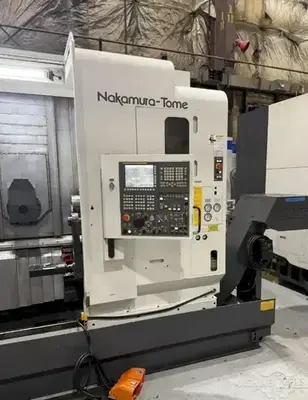

USED 2011 NAKAMURA-TOME NTMX

CNC Lathe

Request a Quote
Add to Cart
Chuck Size: 6"
Bar Capacity: 2"
Turning Diameter: 8.66"
Spindle Speed: 5,000 RPM

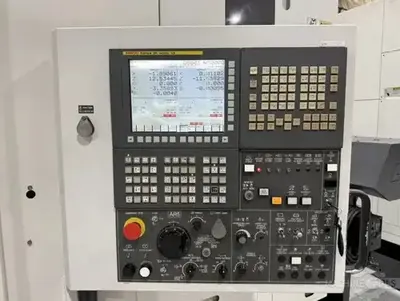

Control: Fanuc 31-A5
Distance Between Centers: 38.58"

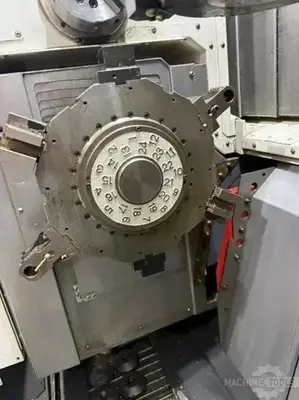

Turret: 24 Station
Live Tooling: C-Axis Live Tooling, Y-Axis

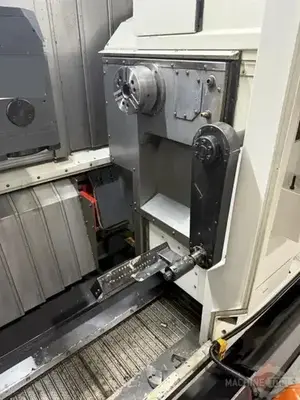

Sub-Spindle: 5,000 RPM, 6" Chuck
Chip Removal: Chip Conveyor
C1/C2 Axis Index: 0.001°
X-Axis Travel: 22.44"
Y-Axis Travel: 7.86" (+/- 3.94")
Z-Axis Travel: 51.06"
Main Motor: 15 HP
Machine Weight: 32000 Lbs
Machine Dimensions: 190" x 165" x 104" with Chip Conveyor
Milling Spindle (CAPTO C4): Coolant Tank & Pump
Sub Spindle: Twin Turret
9-Axis
