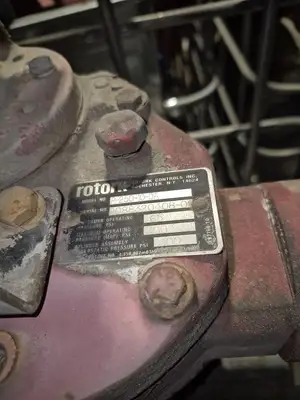

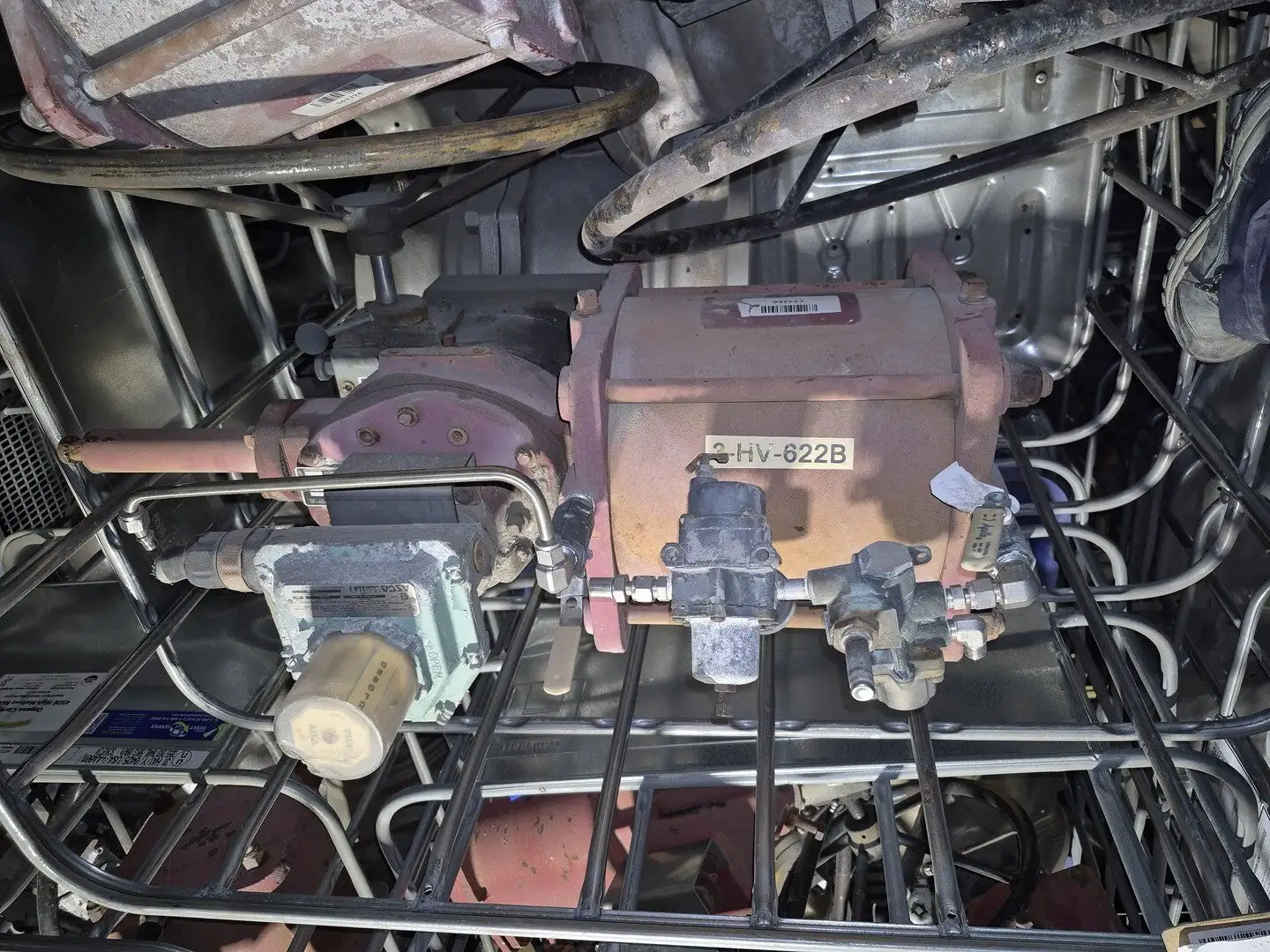

USED ROTORK P-250-10-DA

Diameter: 10"
Class: 150
Valve Style: Ball
Connection Ends: Flange

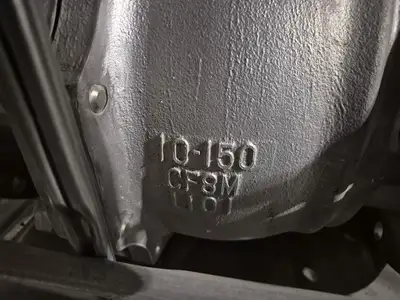

Body: CF8M Stainless Steel
Actuator
Action: Double acting
Operating Air Pressure: 65 PSI
Max. Operating Pressure: 100 PSI
Cylinder Assembly Hydrostatic Pressure: 100 PSI
Swept Volume (Displacement): 6.12 Litres
Air Inlet/Exhaust Ports: 1/2" NPT
End-to-End Length: 34"
Gear Operator
Brand: Alecto (Rotork)
Model No.: ILG/D 1500
Ratio: 57:1
Output Torque: 2485 Nm
Input Torque: 160 Nm
Body: Cast iron

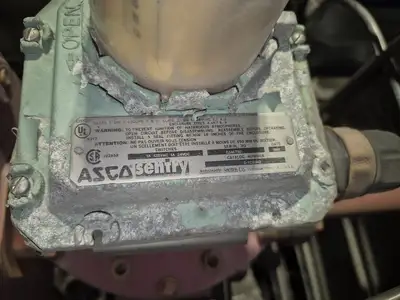

Position Indicator
Brand: ASCO
Catalog No.: S-YDB1H2
Switches: 1 A, 125 VAC / 1 A, 24 VDC
