USED PRISM TSE 24TC

Manufacturer Information
Prism is known for compact extrusion and pelletizing systems used in plastics processing, compounding, and material development. This used Prism pelletizing line includes a Prism parallel twin screw extruder and Prism VARICUT 24 water bath pelletizer, making it suitable for lab, pilot, and small-scale production environments.
Description

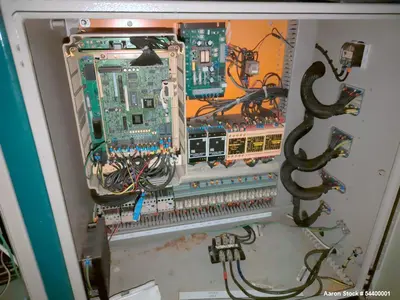

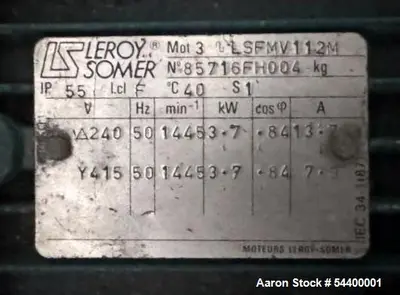

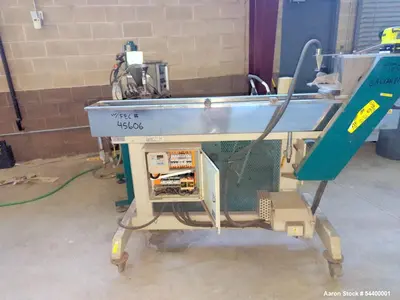

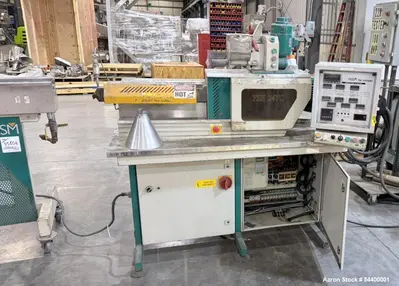

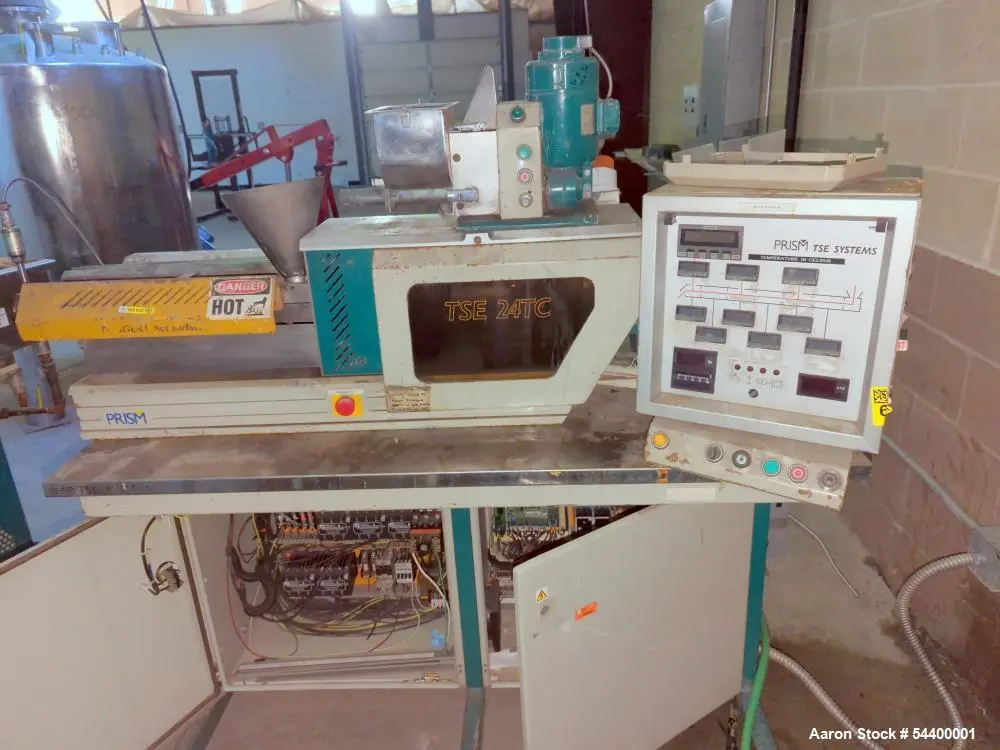

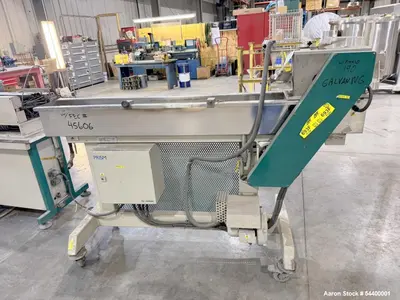

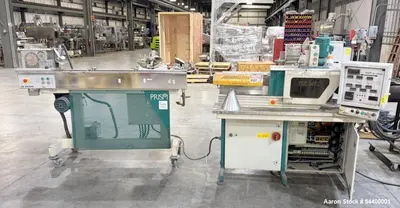

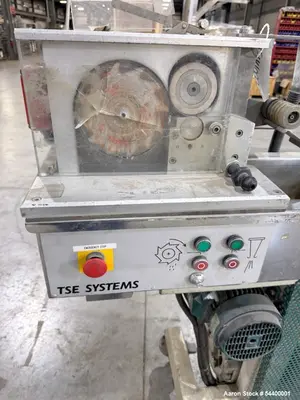

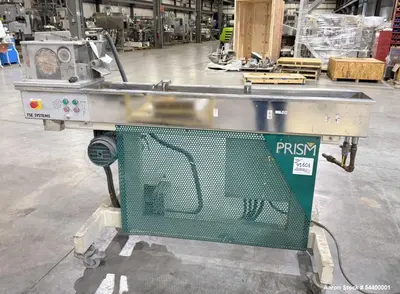

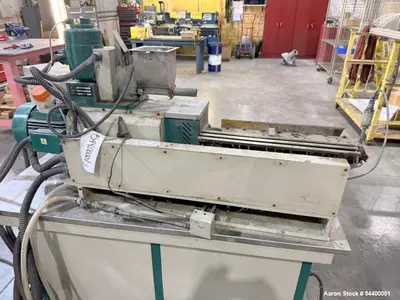

Used Prism pelletizing line consisting of a Prism parallel twin screw extruder, model TSE 24TC, with 24 mm co-rotating screws and 25:1 L/D ratio. Unit features an electrically heated, water-cooled barrel, three top vents with two plugged, six barrel zones with on-board control panel, and 3.7 kW, 230 Volt AC motor drive with VFD controller. Includes two-hole strand die, screw feeder with agitated hopper and .26 kW motor drive, and material hopper. System also includes a Prism VARICUT 24 water bath pelletizer with approximately 8" x 8" x 59" long stainless steel water bath, 2.5" wide air wipe with blower, and 2 5/8" wide strand pelletizer with pull rolls, helical rotor, and 1.1 kW motor drive. Pelletizer serial number 2077, built 1996. Extruder serial number 2078.
Specifications

Manufacturer: Prism

Line Type: Pelletizing line

Extruder Model: TSE 24TC

Extruder Type: Parallel twin screw extruder

Screw Diameter: 24 mm

Screw Configuration: Co-rotating

L/D Ratio: 25:1

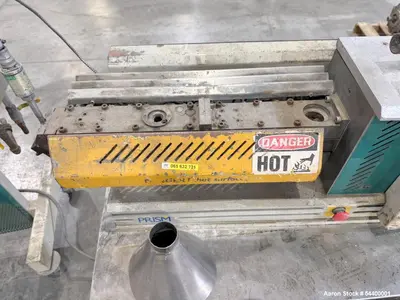

Barrel Construction: Electrically heated, water cooled

Top Vents: 3 total, 2 plugged

Barrel Zones: 6

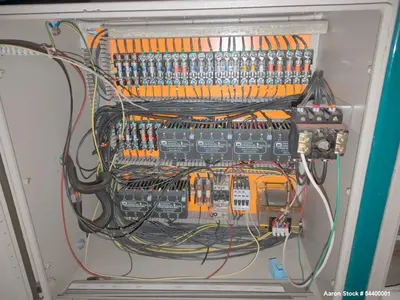

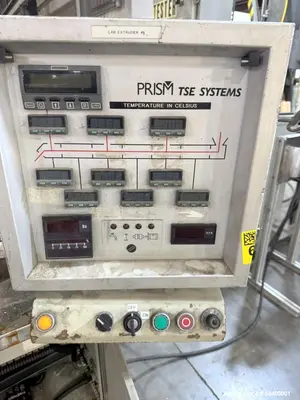

Controls: On-board control panel

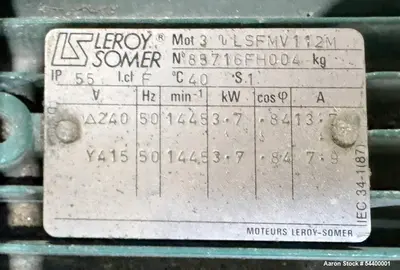

Extruder Drive: 3.7 kW motor

Voltage: 230 Volt AC

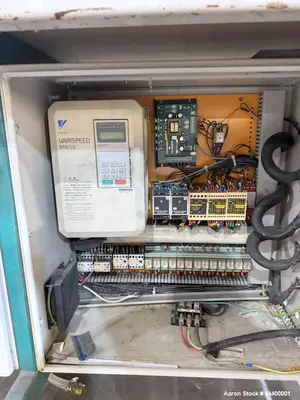

Speed Control: VFD controller

Die: Two-hole strand die

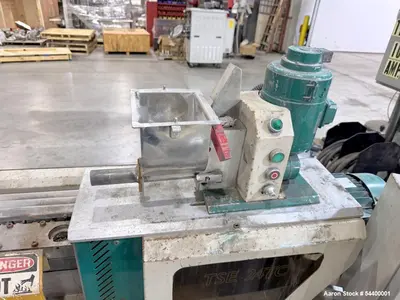

Feeder Included: Yes

Feeder Drive: .26 kW

Feeder Hopper: Agitated hopper

Material Hopper Included: Yes

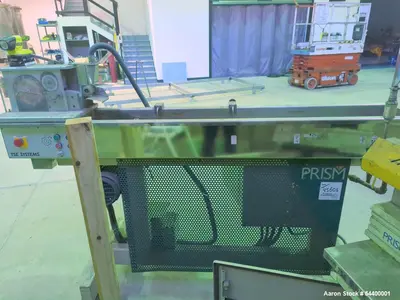

Pelletizer Model: VARICUT 24

Water Bath Size: Approx. 8" x 8" x 59" long

Water Bath Material: Stainless steel

Air Wipe: 2.5" wide with blower

Pelletizer Width: 2 5/8" wide strand pelletizer

Pelletizer Features: Pull rolls, helical rotor

Pelletizer Drive: 1.1 kW motor

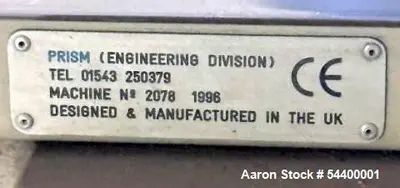

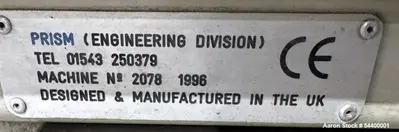

Extruder Serial Number: 2078

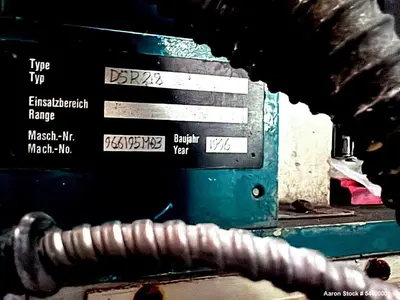

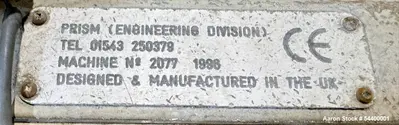

Pelletizer Serial Number: 2077

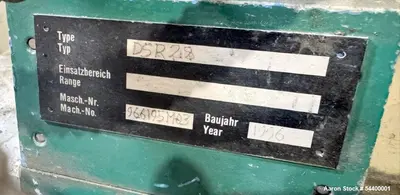

Year Built: 1996

Applications
This used Prism pelletizing line is suitable for:

Plastic compounding

Polymer pelletizing

Strand pelletizing

Color concentrate production

Additive masterbatch processing

Engineering resin development

Lab and pilot extrusion work

Small batch thermoplastic processing

Material testing and development

Regrind and specialty compound pellet production

What Products Would This Be Used For

Plastic pellets

Masterbatch pellets

Filled polymer compounds

Color concentrate pellets

Engineering plastic compounds

Thermoplastic blends

Additive concentrates

Reprocessed plastic pellets

Specialty resin pellets

Development-scale plastic compounds
