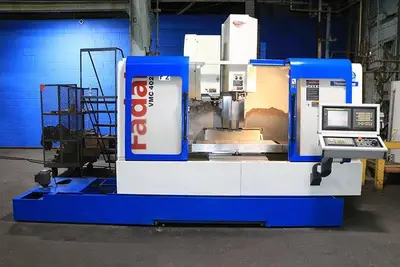

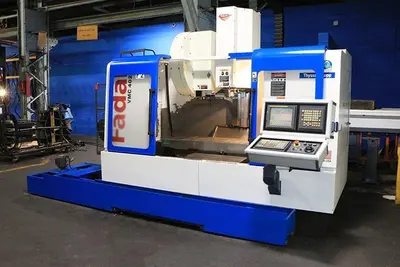

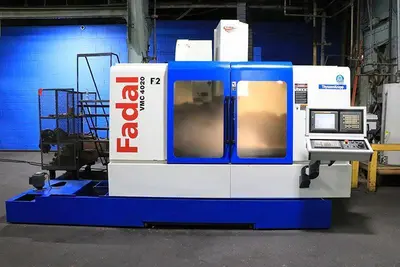

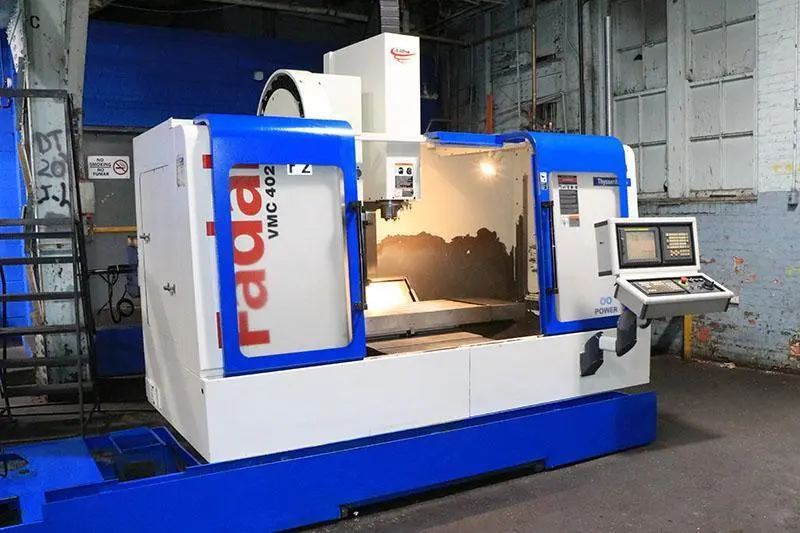

FADAL Vertical Machining Center, New 2004, Model VMC 4020 HT

FADAL VERTICAL MACHINING CENTER
MODEL: VMC 4020 HT
NEW: 2004

SPECIFICATIONS:

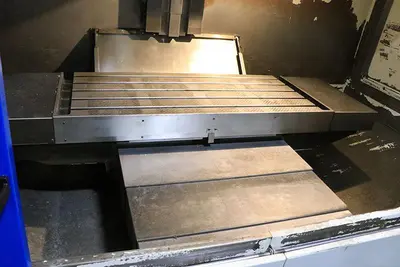

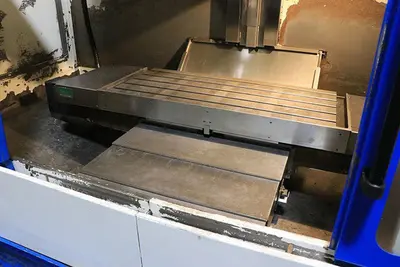

TABLE WORKING SURFACE ................. 20" X 48"
FLOOR TO TABLE SURFACE ................ 32"
T-SLOTS (# X WIDTH X SPAN) ............ 5 X .709" X 3.75"
MAXIMUM WEIGHT ON TABLE ............... 3,641 LBS.
TABLE TRAVEL, X-AXIS (LONGITUDINAL) ... 40"
TABLE TRAVEL, Y-AXIS (CROSS) .......... 20"
VERTICAL COLUMN TRAVEL (Z-AXIS) ....... 20"
MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 4"/24"
SPINDLE TAPER ......................... CAT 40
NUMBER OF TOOLS ....................... 30
SPINDLE SPEEDS, TWO GEARED RANGES ......... 10 TO 10,000 R.P.M.
SPINDLE CENTER TO COLUMN WAYS ......... 20"
SPINDLE TORQUE ........................ 220 FT./LBS.
CUTTING FEED RATES, (X, Y, & Z AXIS) ... 0.01 TO 400 I.P.M.
RAPID FEED RATE, (X & Y AXES) ......... 900 I.P.M.
RAPID FEED RATE (Z-AXIS) .............. 600 I.P.M.
MAXIMUM TOOL DIAMETER ................. 3"
W/O ADJACENT TOOLS ................. 6"
MAXIMUM TOOL LENGTH ................... 15"
MAXIMUM TOOL WEIGHT ................... 15 LBS.
APPROX DIMS ........................... 117" x 94" x 100"
APPROX WEIGHT ......................... 11,000 Lbs.

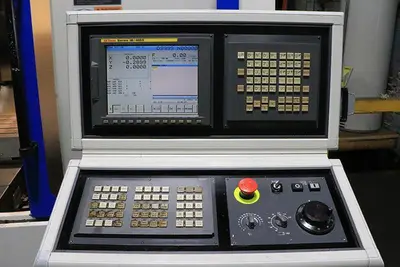

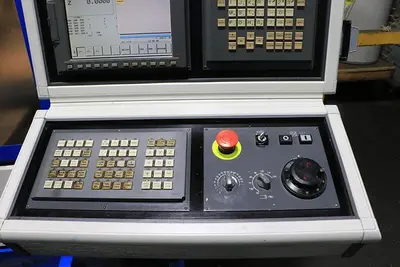

HIGH SPEED CPU
10,000 RPM HIGH TORQUE SPINDLE OPTION
AUTOMATIC TOOL CHANGER (24) STATIONS
RIGID TAPPING
BOX WAYS ON ALL AXES
AC SERVO MOTORS ON ALL AXES

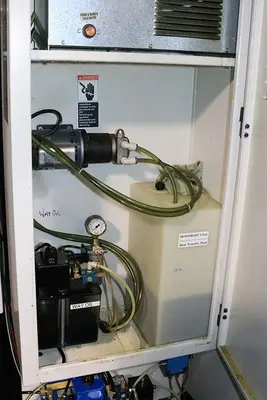

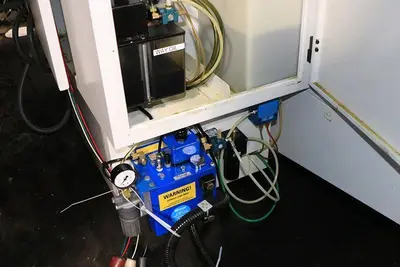

BIJUR AUTOMATIC LUBRICATION SYSTEM

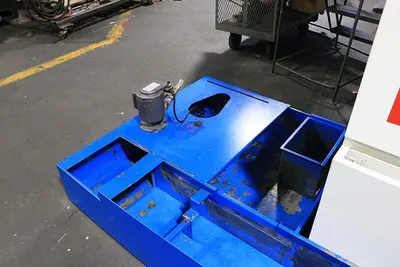

EXTERNAL COOLANT PUMP AND TANK
24 HORSE-POWER AC DRIVE MOTOR

FOB: ORIGIN
