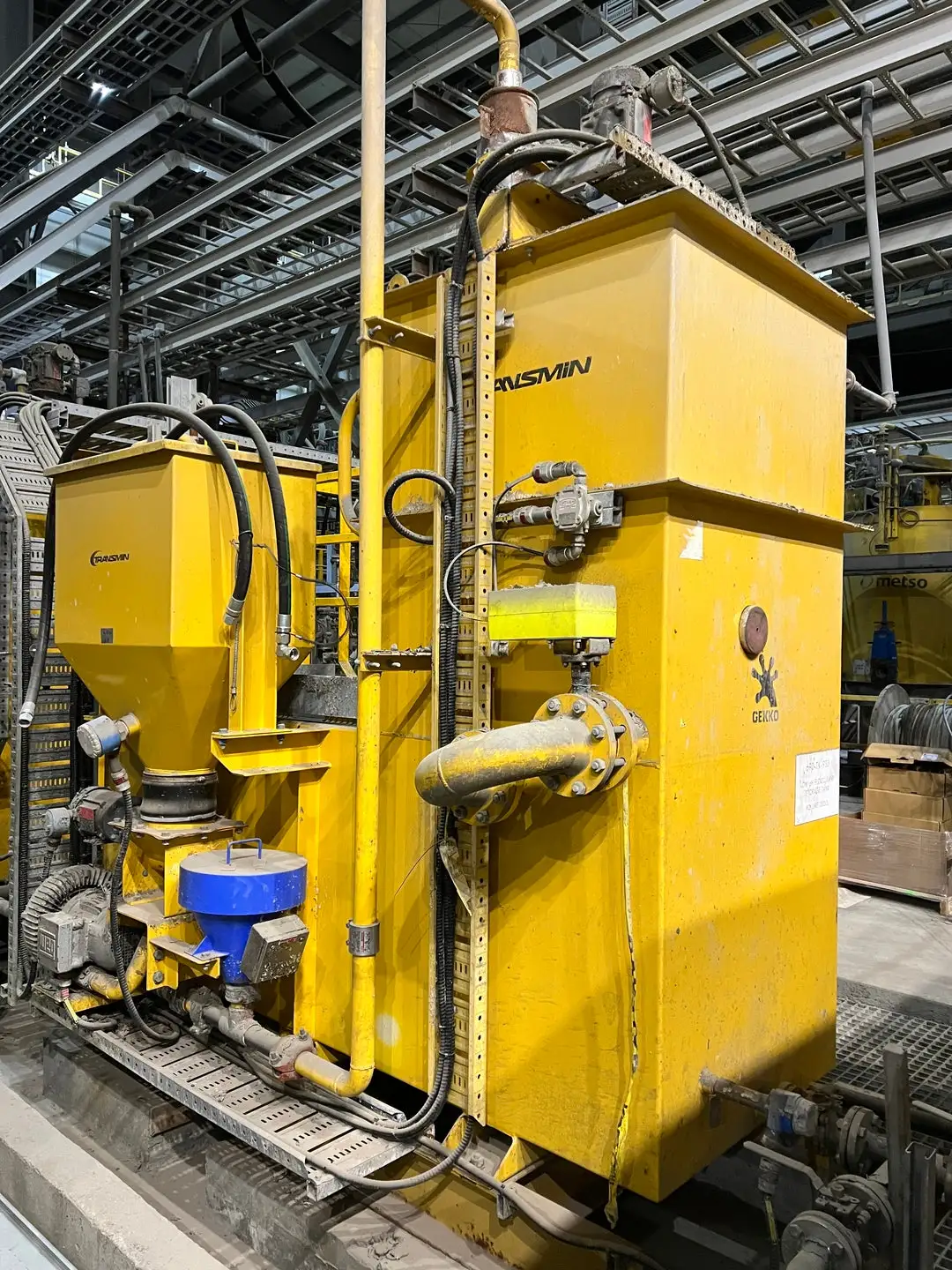

USED TRANSMIN/GEKKO POLYMIX 1000
Overview
Specifications
Low pH System
Flocculant: Magnafloc 5250 or equivalent
Filling Method: 25 kg bag
Material: Bulk Density: 700 kg/m3
Max. Particle Size: 98% < 1 Mm
Dry Polymer Plant Requirement: 3.3 kg/hr
Mix Concentration: 0.25% w/w
Solution Viscosity: 1500 cPs
Plant Demand Rate: 1.32 m3/hr
Plant Production Rate: 1.57 m3/hr
Low pH Flocculant Storage Tank: 2000 L
High pH System
Flocculant: Magnafloc 919 or equivalent
Filling Method: 25 kg bag
Material: Bulk Density: 750 kg/m3
Max. Particle Size: 98% < 1 Mm
Dry Polymer Plant Requirement: 1.35 kg/hr
Mix Concentration: 0.25% w/w
Solution Viscosity: 1500 cPs
Plant Demand Rate: 0.54 m3/hr
Plant Production Rate: 1.57 m3/hr
High pH Flocculant Mix Tank: 1000 L
Additional
Water Feed Rate: 10 m3/hr @ 300 kPa
Eductor Feed Rate: 100 kg/hr
Screw Diameter: 58 mm
Screw Motor: 0.37 kW
Blower Motor: 2.2 kW
Agitator Motor: 0.37 kW
