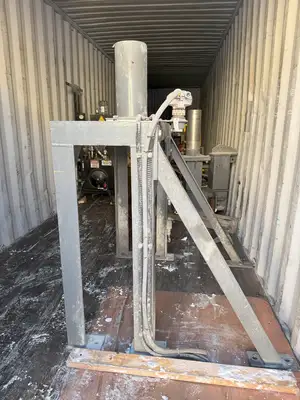

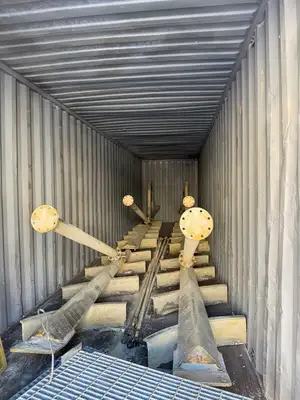

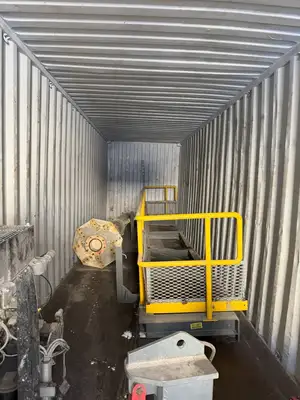

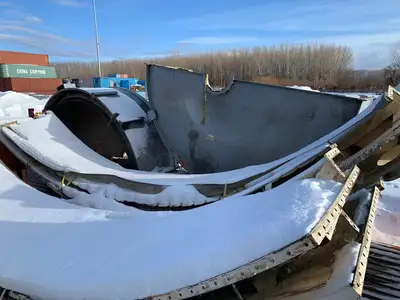

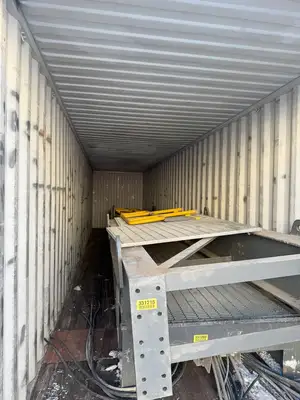

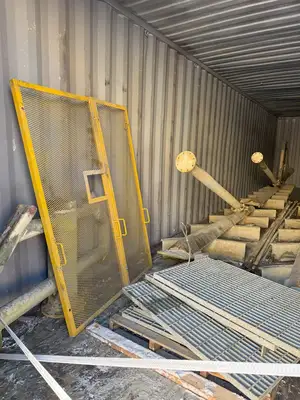

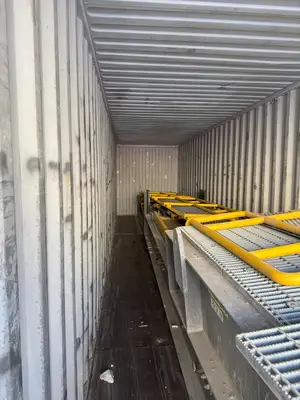

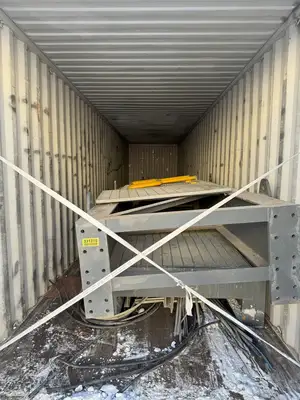

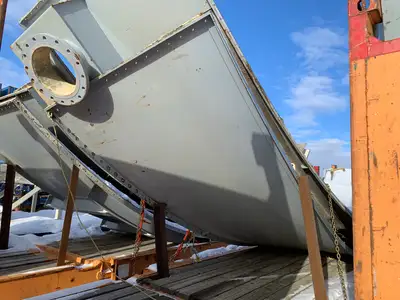

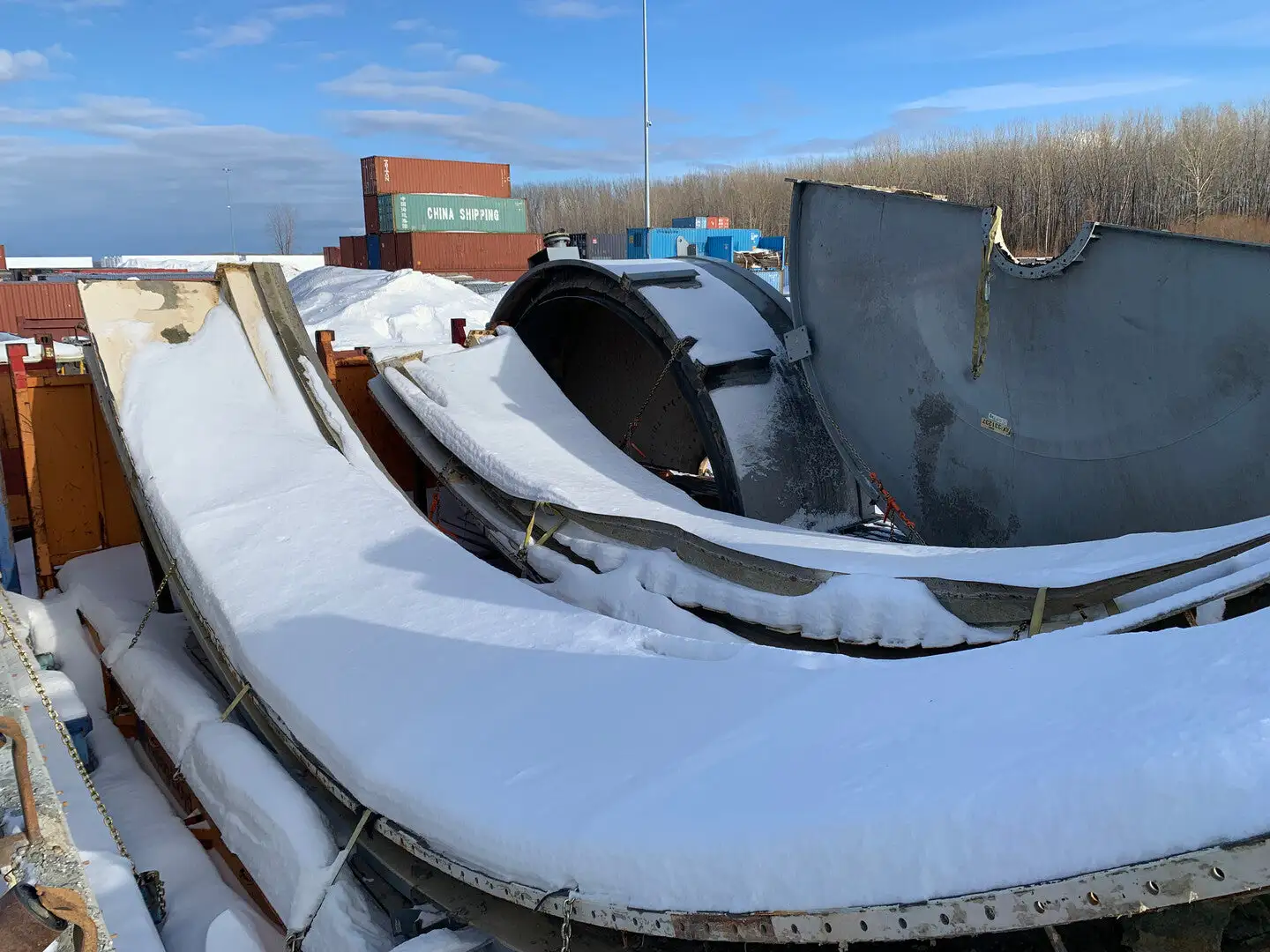

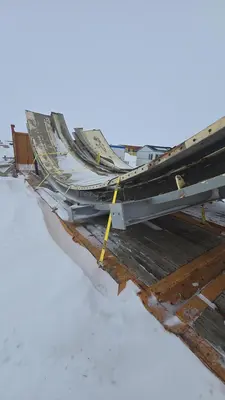

14 m Dia. High Rate Tailing Thickener Tank w/ Rake

Diameter: 14 m
Height: 5.65 m
Application: Slurry Thickening
Dimensions
Diameter (Inside Tank): 14000 mm
Tank Wall Height: 5650 mm
Process & Design Flow Rates
Thickener Feed:
103.4 T/hr dry solids mass flow
238 m3/hr total slurry volumetric flow
201 m3/hr Liquid portion of flow
34.0% w/w solids by weight
Underflow (Total):
103.4 T/hr dry solids mass flow
93 m3/hr total slurry volumetric flow
56 m3/hr Liquid portion of flow
65.0% w/w solids by weight
Overflow (Total):
153 m3/hr total slurry flow
0.0% solids by weight

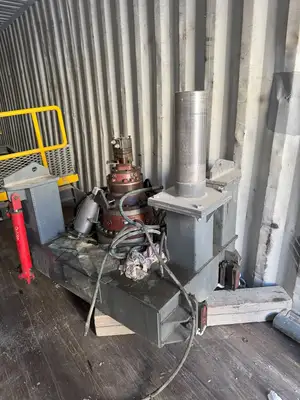

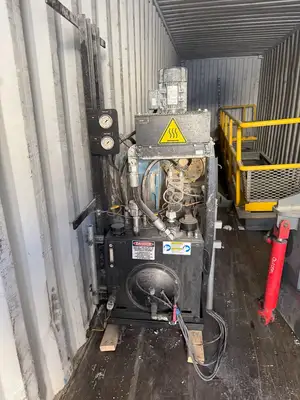

Power Pack Motor: 5.5 kW, 575 V, 3-ph
