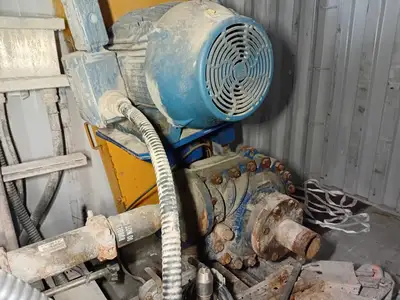

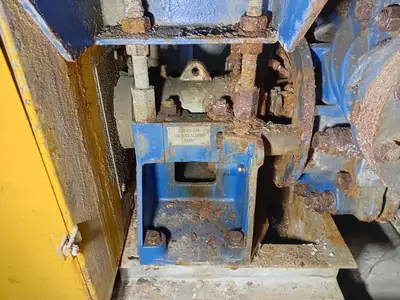

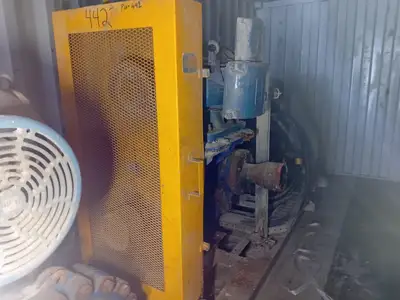

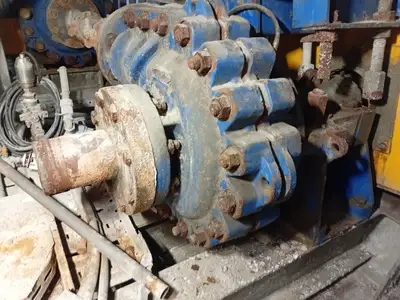

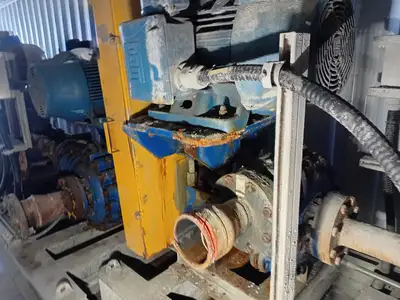

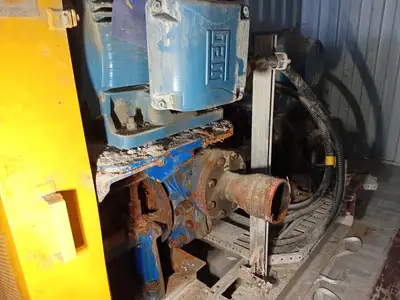

USED WARMAN 4/3 DD-AHP

Horsepower: 100 hp
GPM: 673
PSI: 382
Head: 47.7
RPM: 2163 rpm
Voltage: 575 volts
Phase: 3-phase
PDF Manual
Skid Layout

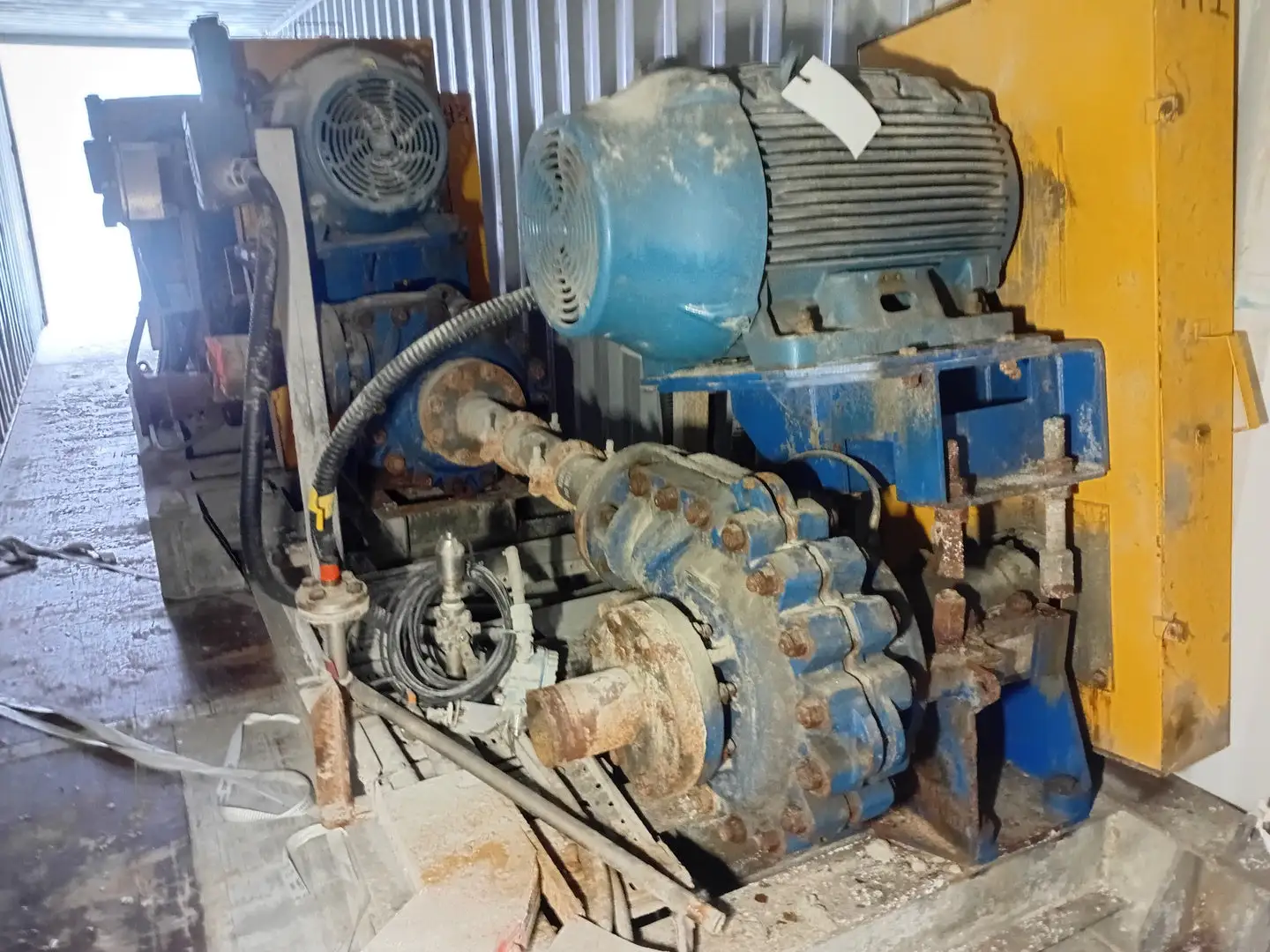

(2) Warman 4/3 DD AHP pumps
(2) 100 HP Motors
Pump Specifications
Total Head (min / design): 38.9 m / 47.7 m Slurry per pump
Number of Stages: 4
Drive Configuration: CV - Belt Drive
Inlet Flange: 100 mm
Nominal Capacity: 153 m3/h (673 US GPM) @ 2150 kPa (311 PSI)
Design Capacity: 152 m3/h (669 US GPM) @ 2640 kPa (382 PSI)
Speed (min / design): 1978 rpm / 2163 rpm

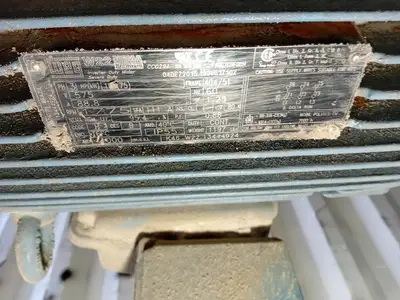

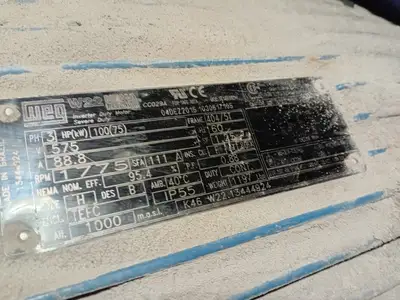

Motor Specifications
Speed: 1775 rpm
Frame: 404/5T
