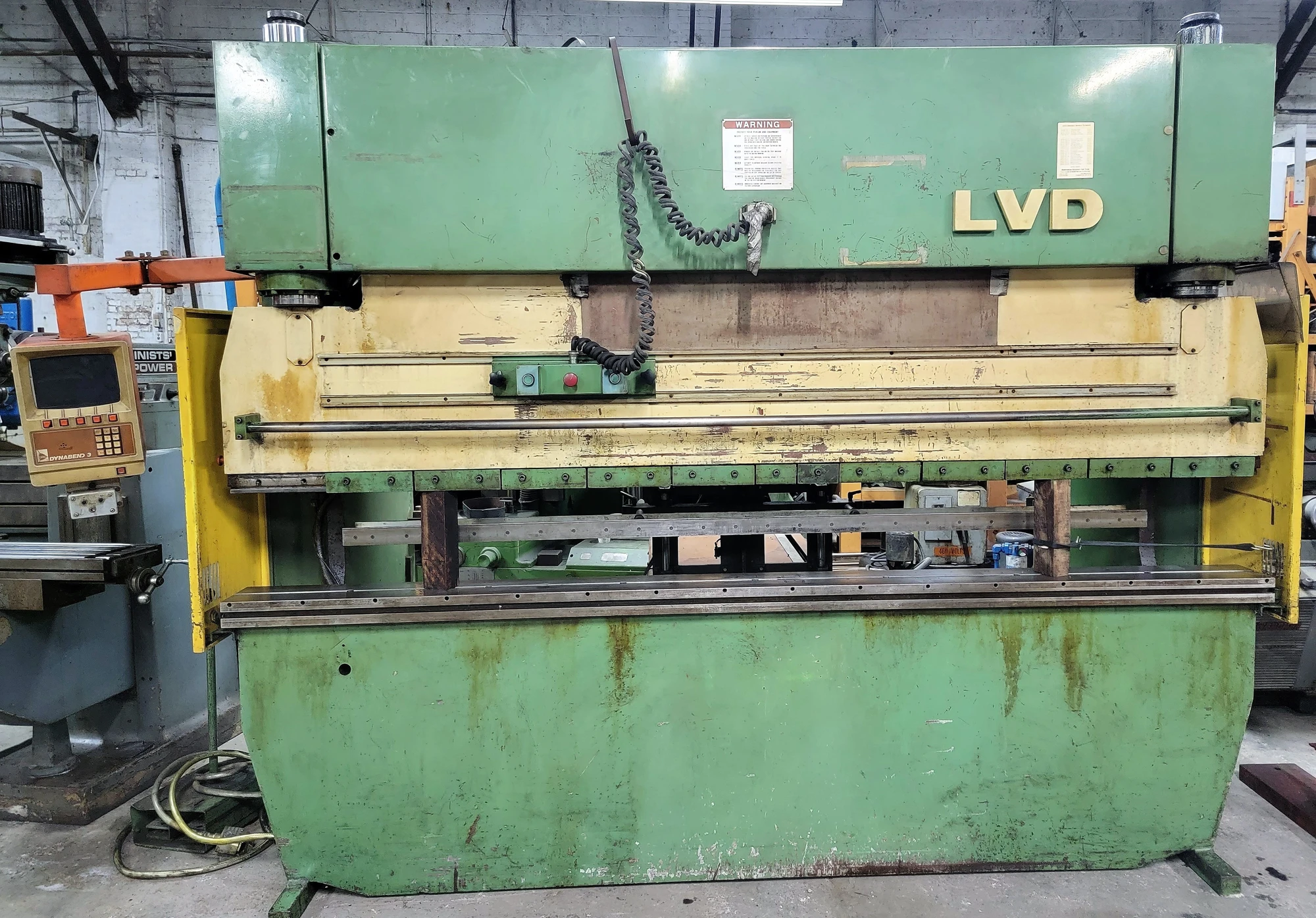

USED 1982 LVD 110BH10 HYDRAULIC PRESS BRAKE

CAPACITY ..................... 110 TON
OVERALL LENGTH OF BED ........ 120"
DISTANCE BETWEEN HOUSING ..... 100"
DEPTH OF THROAT .............. 8"
FLOOR TO TOP OF BED .......... 36"
WIDTH OF BED ................. 7"
DUAL PALM BUTTONS ............ YES
BACK GAUGE CNC ............... DRC - DYNABEND 3, CNC CONTROL
1986, Made in USA, S/N 862004, back gauge has 36" stroke w/
vertical adjustment approx 8"
FOOT PEDAL & PALM BUTTONS .... YES
MOTOR ........................ 12 HORSEPOWER

10' OVERALL BED LENGTH
100" DISTANCE BETWEEN HOUSINGS
7" BED WIDTH,
8" THROAT
MACHINE WIRED 460V/3 PHASE
OVERALL 11'L x 60"F-B x 91"H
APPROX WEIGHT: 16,000 LBS
