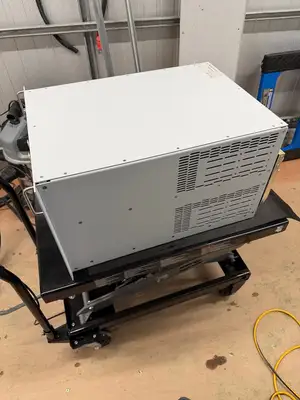

USED 2019 MAGNA-POWER TSD250-200/480+LXI

USD $24,620.98
1 available
Overview
Manufacturer:
MAGNA-POWER
Year:
2019
Stock #:
152404
Specifications

Type: DC
Output Capacity: 0-250 Volts
Voltage: 480 volts
Frequency: 50-400 Hz

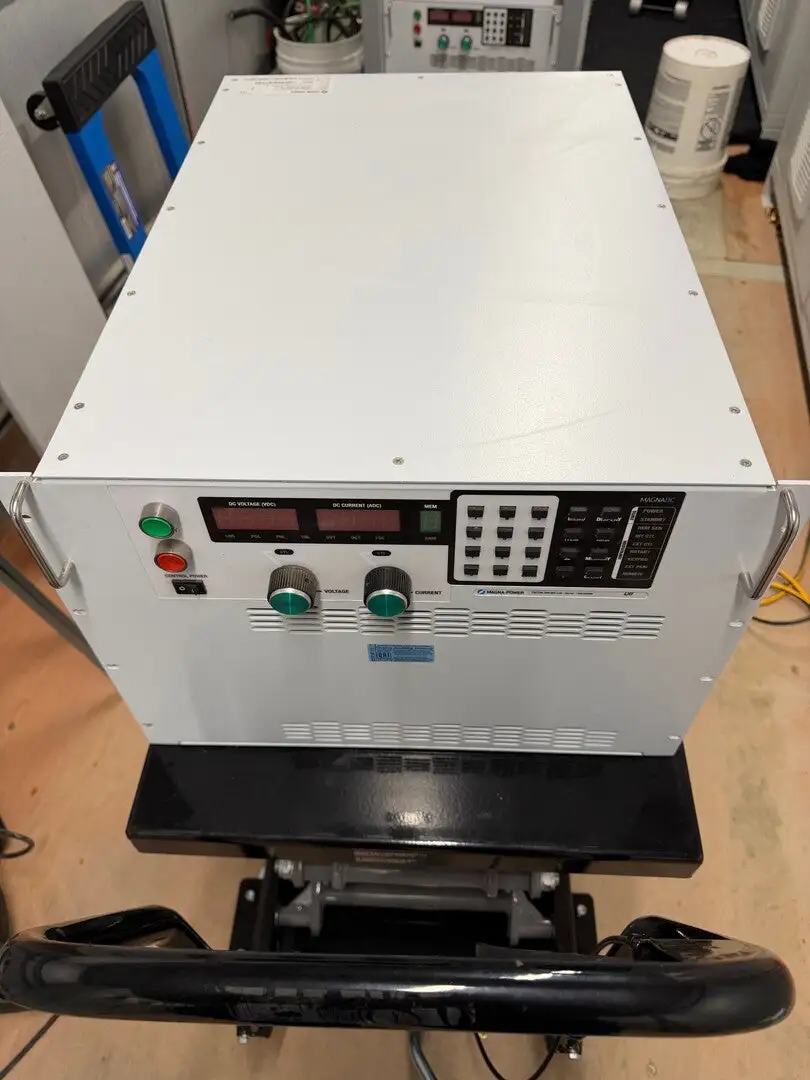

Note: Black rack pictured is not included with individual purchase.
Key Features
SCPI Remote Programming API
High Accuracy Measurements
Master-Slave Functionality
Remote Sensing
37-Pin External User I/O
RS232 Interface
Ethernet and GPIB Available
0-10V External Analog Inputs
Programmable Protection Limits
Fast Transient Response
Remote Interface Software
NI LabVIEW and IVI Driver
Interlock Shutdown Input
Output: 0-250 VDC, 0-200 A, 0-50 kW
Input: 480 VAC +/- 10%, 82 A, 50-400 Hz, 3-ph
Rack Units: 8U
Option: With TCP/IP ethernet communications
Size (With Casters Removed): 14" H x 19" W x 24" D
Weight: 355 lbs
