MCC Metering Bucket - PowerMonitor 5000, Littelfuse SE-330, PanelView, 480V
Overview
Specifications
Service Voltage: 480V AC
Phase: 3-Phase
Frequency: 60 Hz
Control Voltage: 120V AC CPT source
Control power supply output: 24VDC

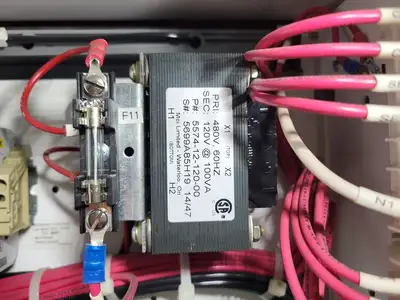

CPT Transformer:
Primary: 480V
Secondary: 120V
Rating: 100 VA

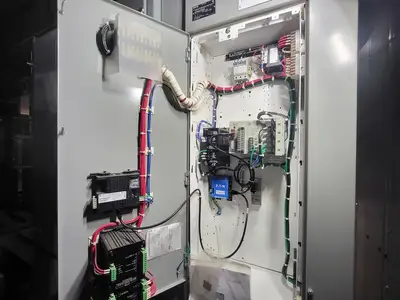

Major components included:

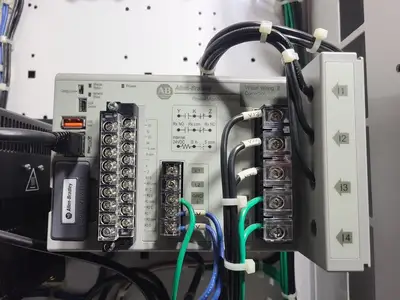

Allen-Bradley PowerMonitor 5000
Littelfuse Startco SE-330 Neutral Grounding Resistor Monitor
Littelfuse EB-600VC sensing resistor

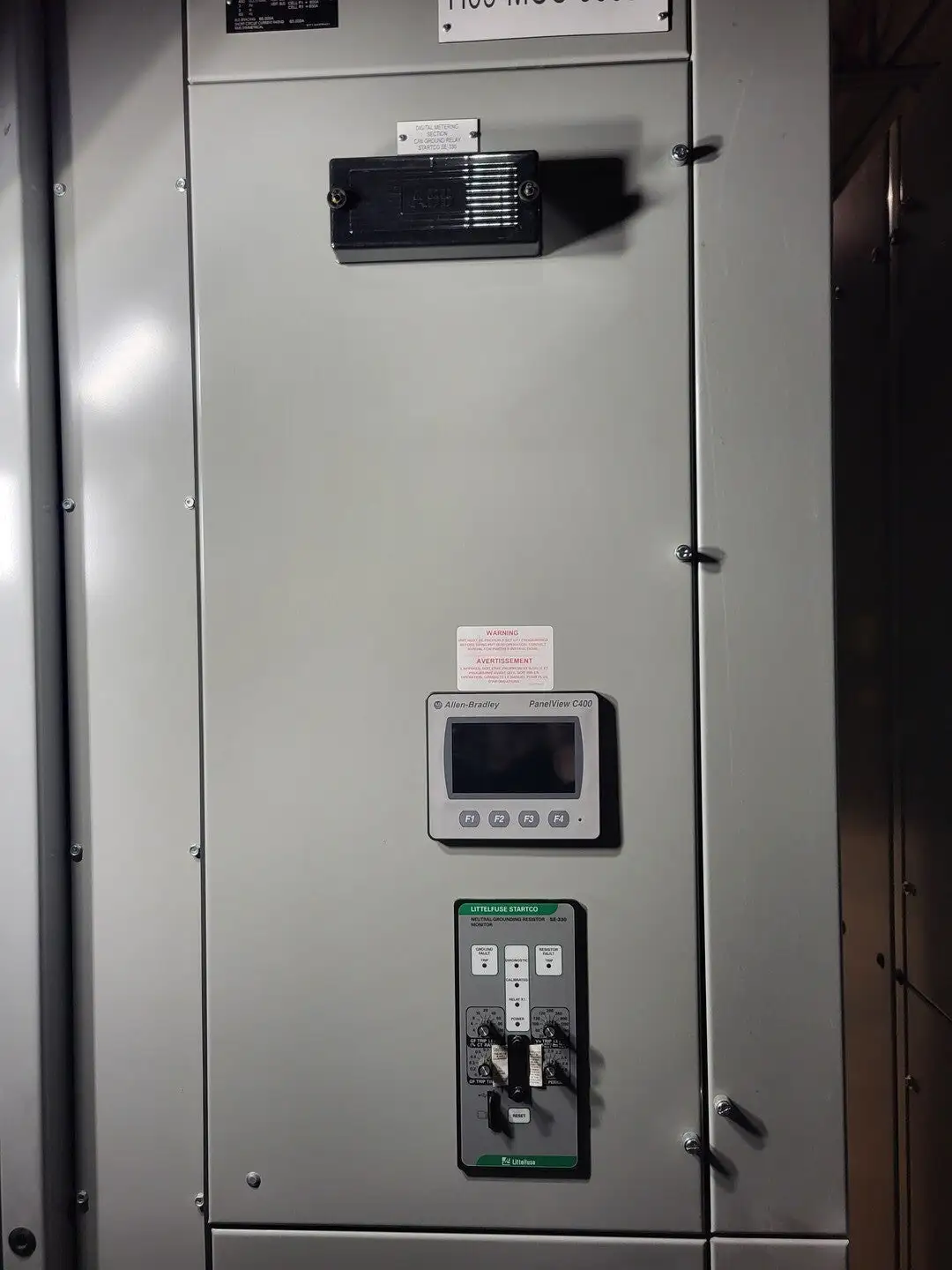

HMI Interface:

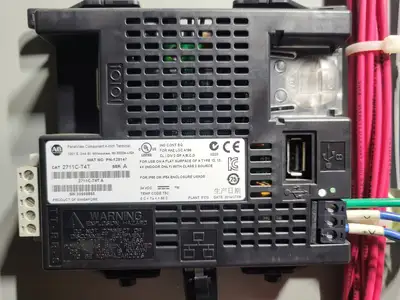

Allen-Bradley PanelView Component // Model: 2711C-T4T
Power Supply:

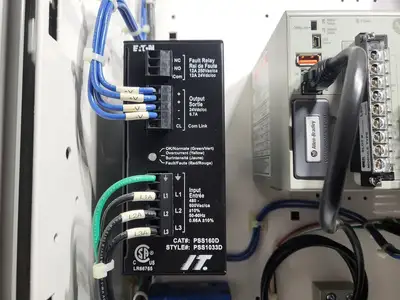

IT Eaton PSS160D
Input: 480-600 VAC
Output: 24VDC
Communications
Eaton Power Xpert Ethernet Switch PXES6P Series
Allen-Bradley Ethernet communication module
Industrial network integration ready
Protection / Control Components

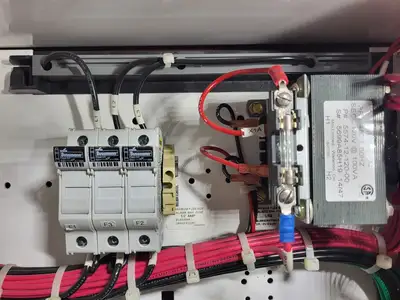

Bussmann Class CC fuses
Control transformer
Fault relay output terminals
Industrial terminal blocks
