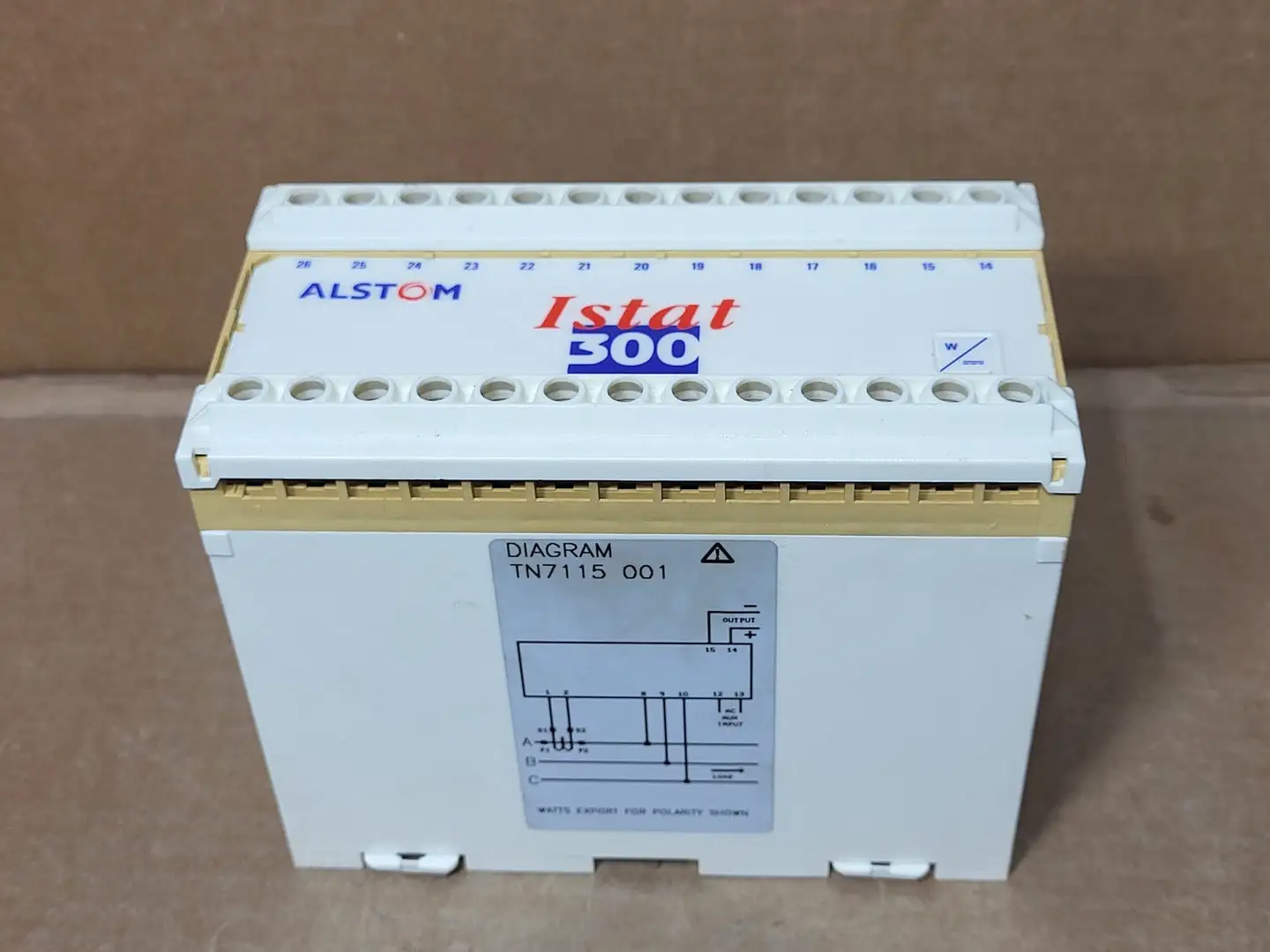

USED ALSTOM 3WBFG6010A

System Type: 3-phase, 1-element (3-1E), 60Hz
Input Range: 0 to 30 MW (Megawatts)
Input Transformers:
Voltage Transformer (VT): 14.4kV / 120V L-L (Line-to-Line)
Current Transformer (CT): 2000A / 5A
Output Signal: 4 to 20 mA DC into a load of 0 to 750
Accuracy (Class Index): 0.2
Auxiliary Power: 120V (+/- 20%), 60 Hz
Operating Temperature: 0 to 50° C
Wiring Diagram Reference: TN7115-001
