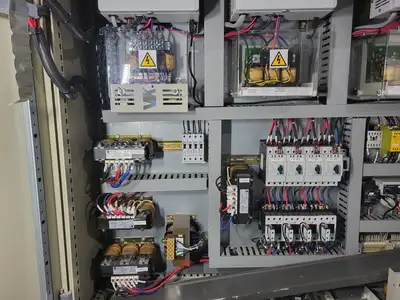

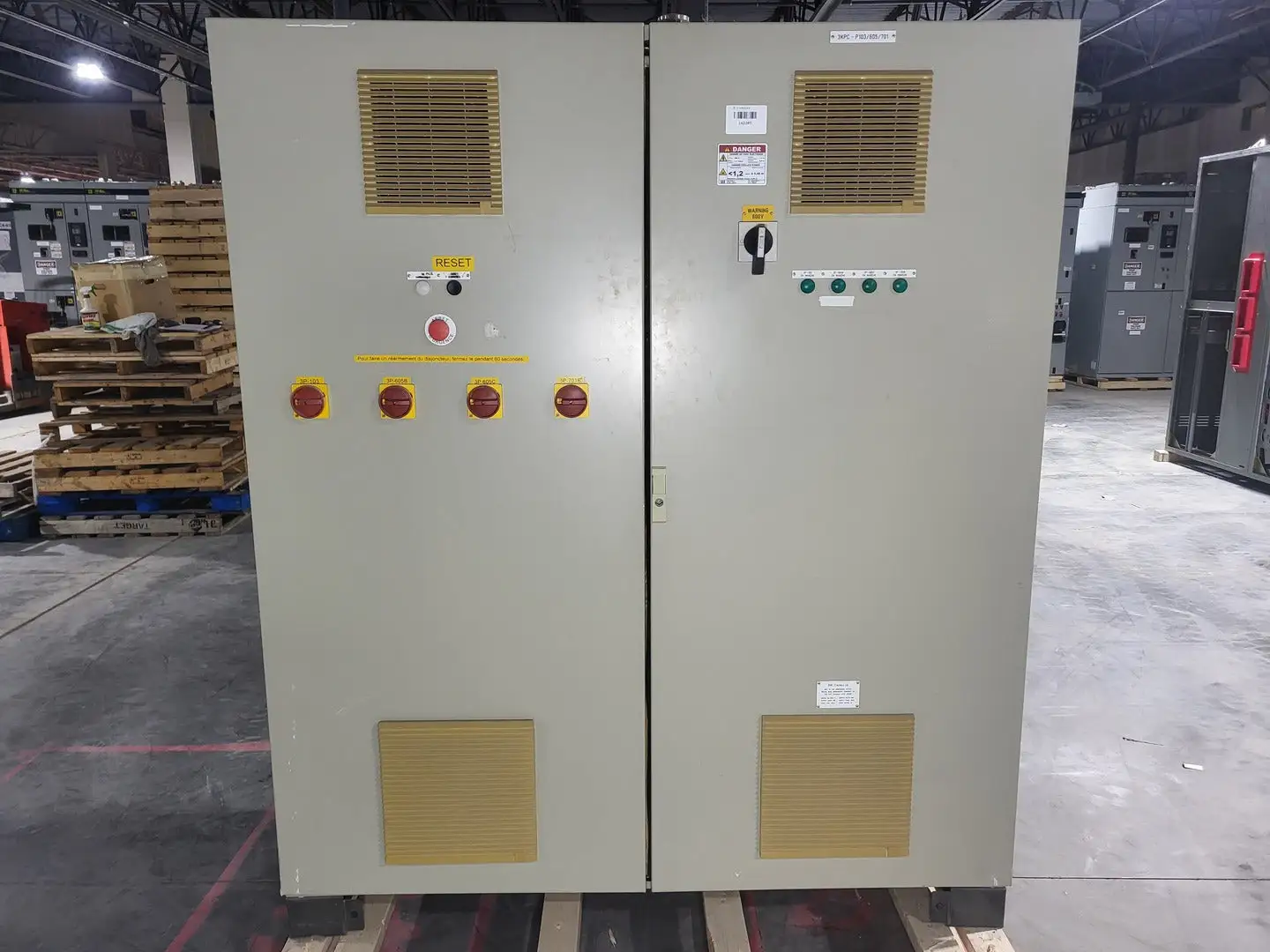

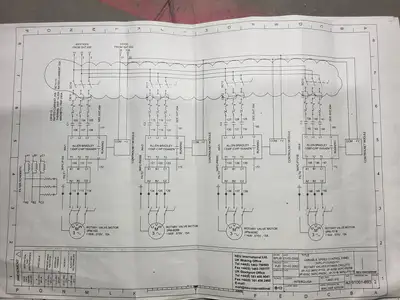

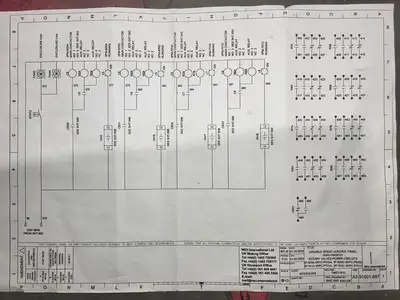

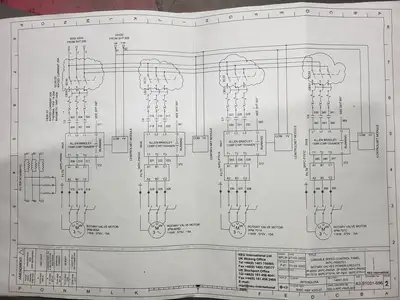

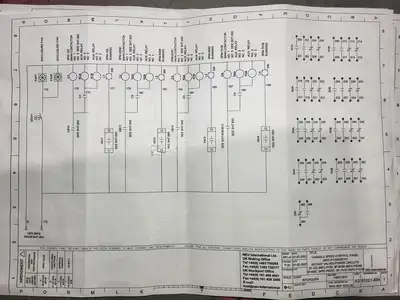

Variable Speed Drive Control Panel - Allen Bradley 1336 Plus II - 600V - Rotary Valve System - NEMA 12

Supply Voltage 600 V AC, 3-phase
Frequency 50 / 60 Hz
Main Breaker Siemens 100 A
Fault Capacity 25 kA
Control Voltage 24 VDC
Enclosure NEMA 12
Panel Type Industrial VFD control cabinet
Panel Width 3200 mm total (2 sections)
Panel Height 1900 mm
Panel Depth 400 mm
Motor
Power 11 kW
Voltage 575 V
Current 15 A
Total motors controlled:
4 motors
Allen-Bradley 1336 Plus II
Drive type Adjustable Frequency AC Drive (VFD)
Voltage class 500-600 V
Power rating 11 kW (15 HP)
Input current 19 A
Frequency 48-62 Hz
Motor control Sensorless vector control

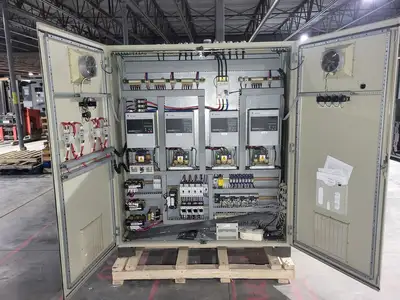

Drives

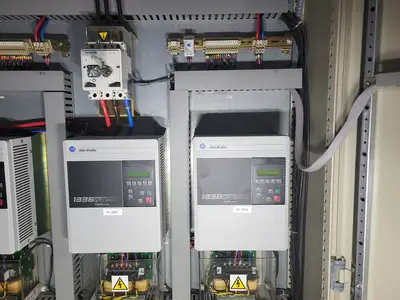

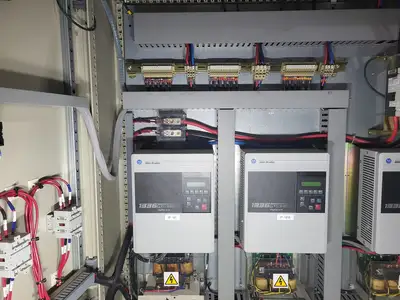

4 x Allen-Bradley 1336 Plus II VFD

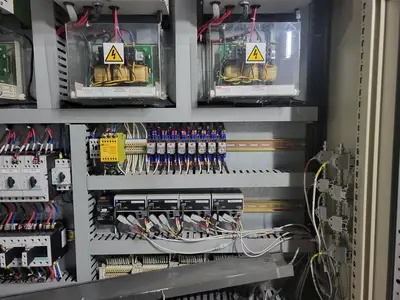

Output filters

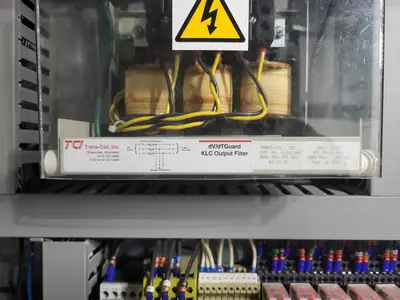

4 x TCI dV/dt Guard KLC Output Filters
Purpose:
protect motors from VFD voltage spikes
allow longer motor cable runs
Main breaker
Siemens 3VF3131
Safety

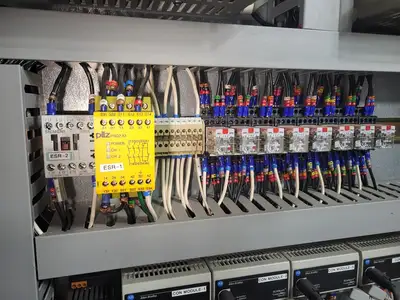

Pilz PNOZ X3 safety relay

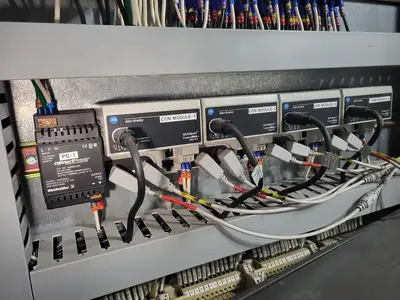

Communications
Allen-Bradley SCANport ControlNet modules
Power supply
Weidmüller 24VDC control power supply

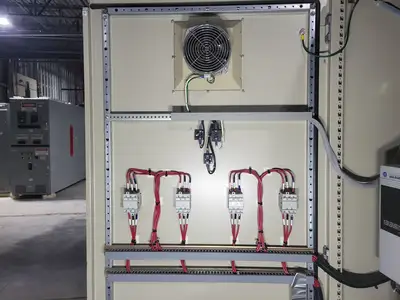

Protection

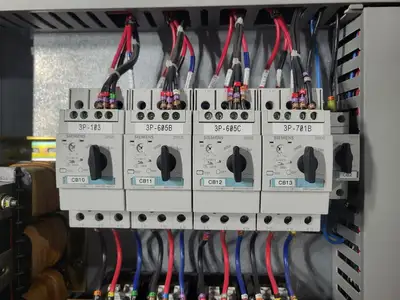

Siemens motor protection breakers

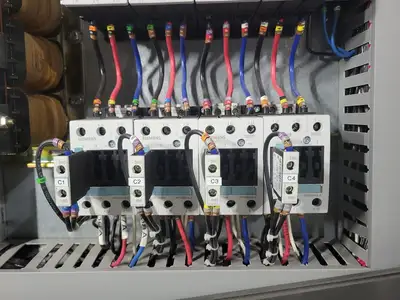

Siemens contactors
