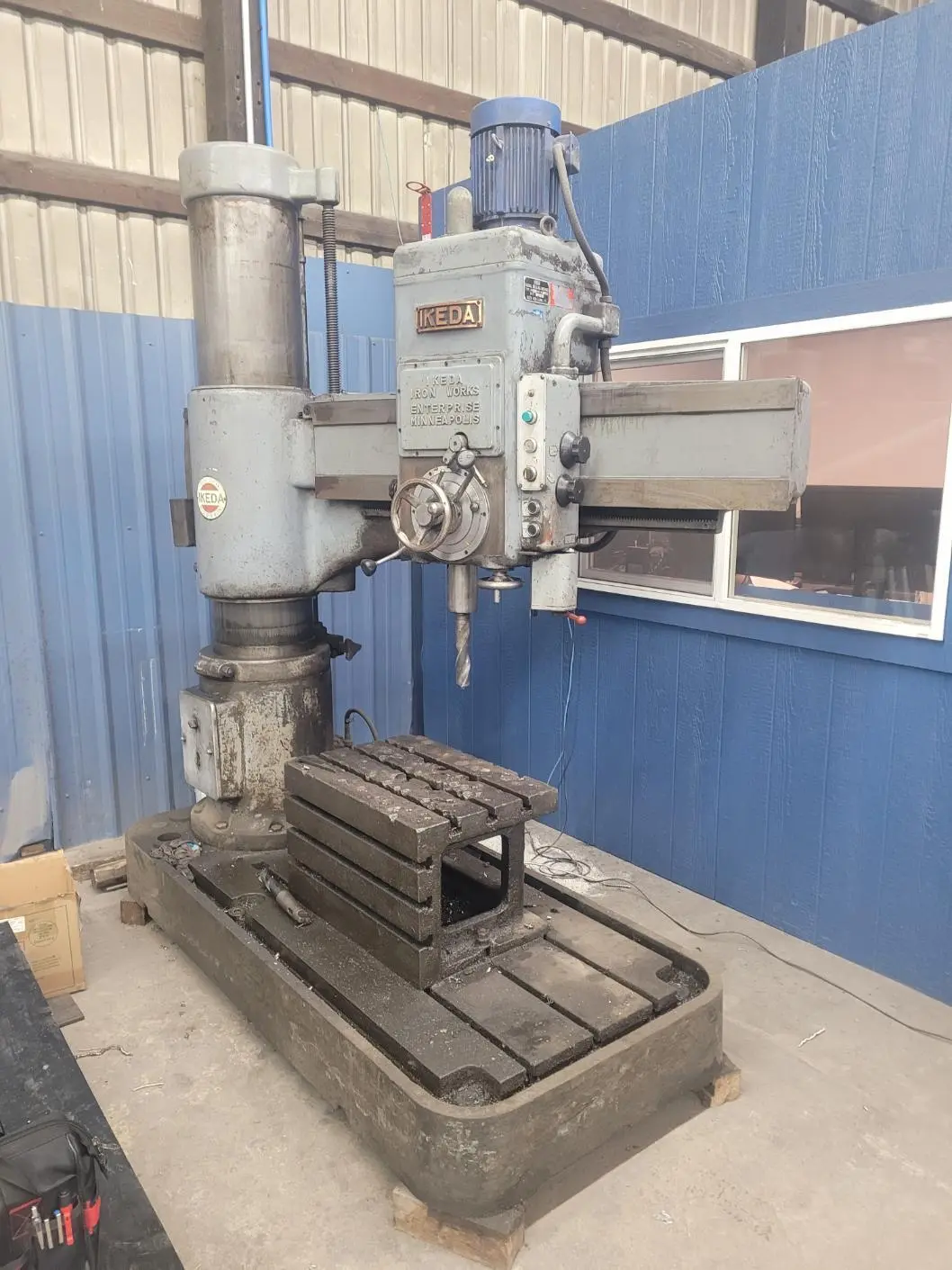

USED 1975 IKEDA IRON WORKS RM1300

Radial Drilling Machine
OEM: Ikeda Iron Works, Ltd. (Japan)
Model: RM1300
Manufacturing No.: 75033
DOM: 1975
Electrics: 220-440 Volt, 3 phase, 60 cycle, 13-6.5 Amps
Main Motor: 10 HP

Features & Specifications:
...Arm Length: 5’ Nominal (54-1/2”)
...Column: 14” Nominal (13-5/8”)
...Spindle Speeds (12): 30-1,440 RPM
...Spindle Taper: #5 MT
...Spindle Travel: 12"
...Spindle Feeds (4): .004 - 0.021 IPR
...Capacities:
...Drilling Capacity: 2.25” / 2.625”
...Tapping Capacity: 1.75” / 2”
...Distance Spindle Nose to Base:
......Min.: 15" / Max.: 56"
...Power Elevation of Arm
...Power Clamping
...Base Dimensions: 36” x 57”
...Box Table: 27” x 18”
...Extra Drill Bits

Unit O/A Dimensions (approx.): 88” x 38” x 100” Tall
Unit Weight (approx.): 7,700 lbs.

Approximate specifications taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Price, location, and specifications are subject to change.

Functionality Notes & History:

Machine is a good runner. Owner wants to sell because no longer using in production. Part of regular manufacturing equipment turnover based on production need and product mix. Under power, available for inspection.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is under power; available for inspection.
Seller agrees to load onto Buyer's transportation.
Buyer is responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote freight.

Contact MD Equipment Services LLC to schedule an inspection or arrange purchase details.
