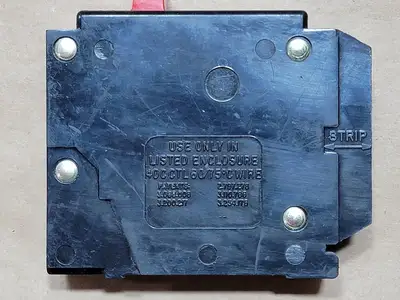

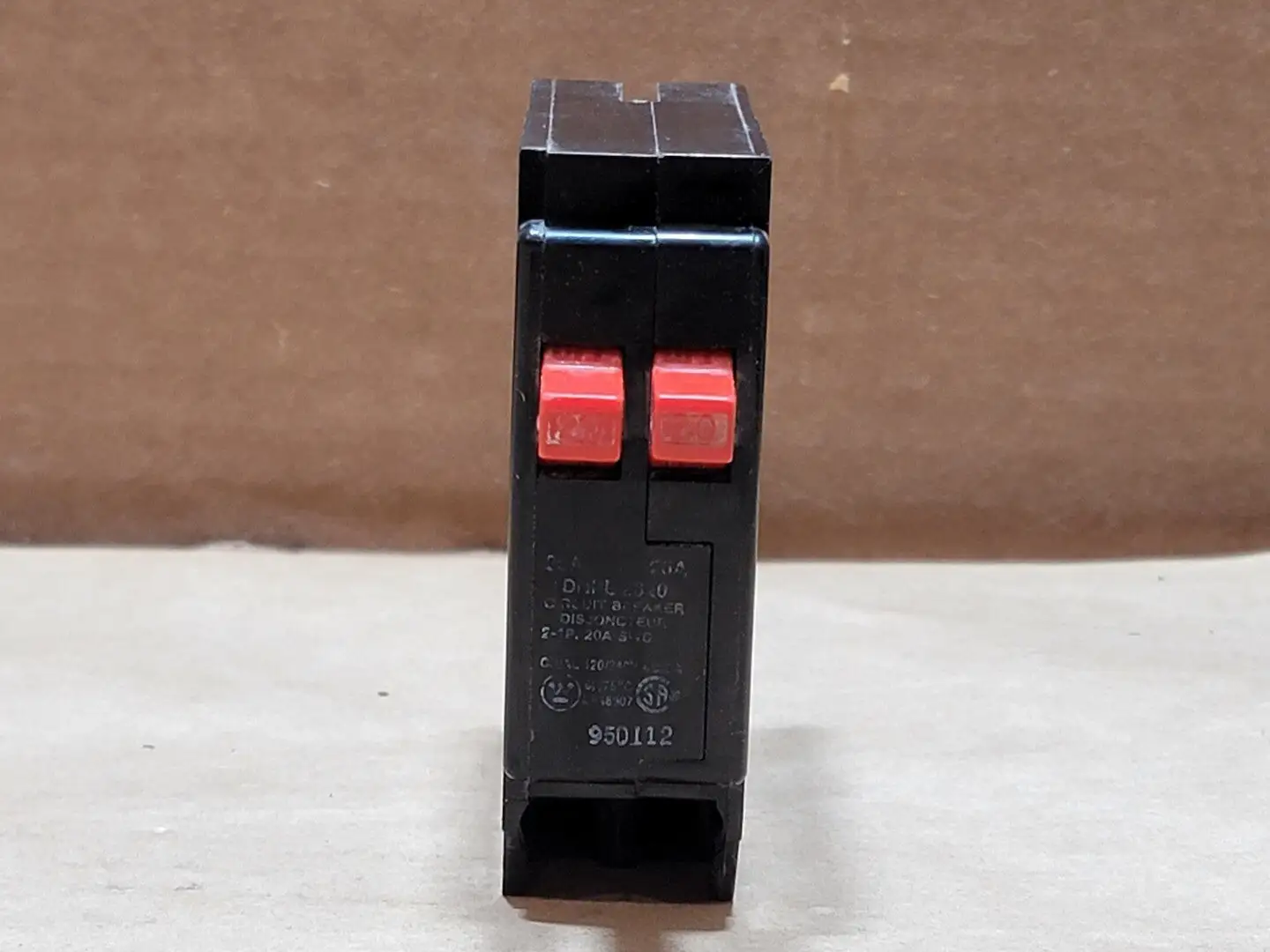

USED CUTLER-HAMMER DNPL2020

Amps: 20 amps
# of Poles: 2
Mounting Style: Plug-In
Voltage: 120/240 volts
Interrupting Rating (AIC): 10,000 A at 120/240 V AC
Trip Type: Thermal-magnetic (standard molded-case style)
Wire Size Range: 14-10 AWG, 8 AWG, 6-4 AWG (see torque specs)

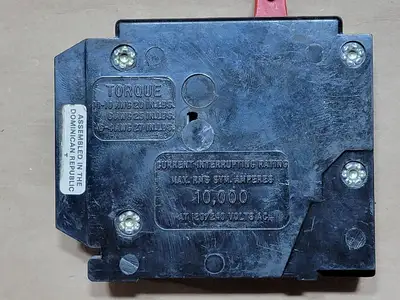

Terminal Torque 14-10 AWG: 20 in-lb
Terminal Torque 8 AWG: 25 in-lb
Terminal Torque 6-4 AWG: 27 in-lb
Wire Temperature Rating: 60/75 C (marked 60/75C wire)
Mounting Style: Plug-in for listed loadcenter enclosure
Application: Branch circuit protection, residential or light commercial panels
