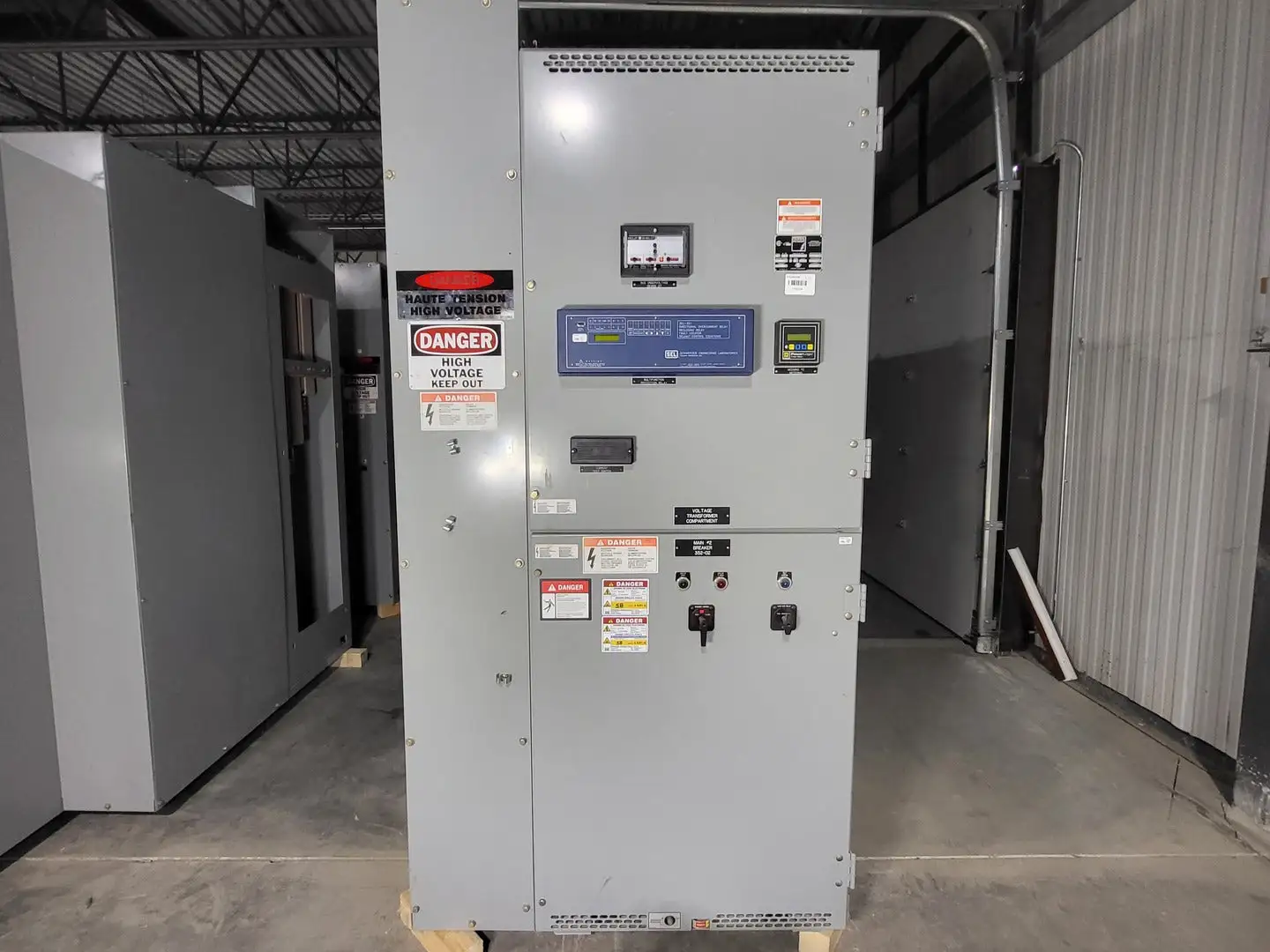

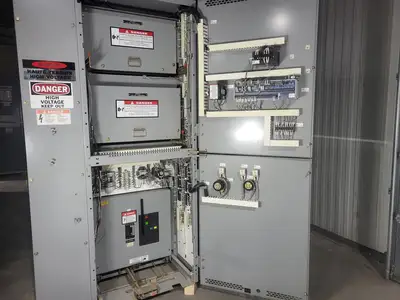

4.76kV 2000A Medium Voltage Switchgear | 36kA | Drawout Vacuum Breaker SEL Relay

Amps: 2000 amps
Voltage: 4160 volts
Phase: 3-phase
General
Manufacturer: Federal Pioneer (Groupe Schneider)
Equipment Type: Medium Voltage Metal-Clad Switchgear
Installation Type: Indoor
Phase: 3 Phase
Frequency: 60 Hz
Year: 2002
Electrical Ratings
Rated Maximum Voltage: 4,760 V (4.16 kV Class)
Continuous Bus Rating: 2000 A
Interrupting Capacity: 36 kAIC
Bus Bracing: 36 kA
Insulation Level (BIL): 60 kV
System Amps (Nominal): 2000 A
Circuit Breaker
Manufacturer: Square D / Schneider
Type: Vacuum Drawout Circuit Breaker
Rated Voltage: 4.76 kV
Continuous Current: 2000 A
Short Circuit Current: 29 kA Symmetrical
MVA Class: 250 MVA
Closing Coil Voltage: 100-140 VDC
Tripping Coil Voltage: 70-140 VDC
Protection & Controls
Protection Relay: SEL (Schweitzer Engineering Laboratories)
Metering: Schneider PowerLogic
Voltage Transformer: Drawout Type Compartment
Certifications
Standard: CSA C22.2 No.31
Serial Number: 14005564-001
