Amps: 360 amps
Voltage: 5000 volts
Phase: 3-phase
General
Manufacturer: Square D / Schneider Electric
Product Line: ISO-Flex Model 4

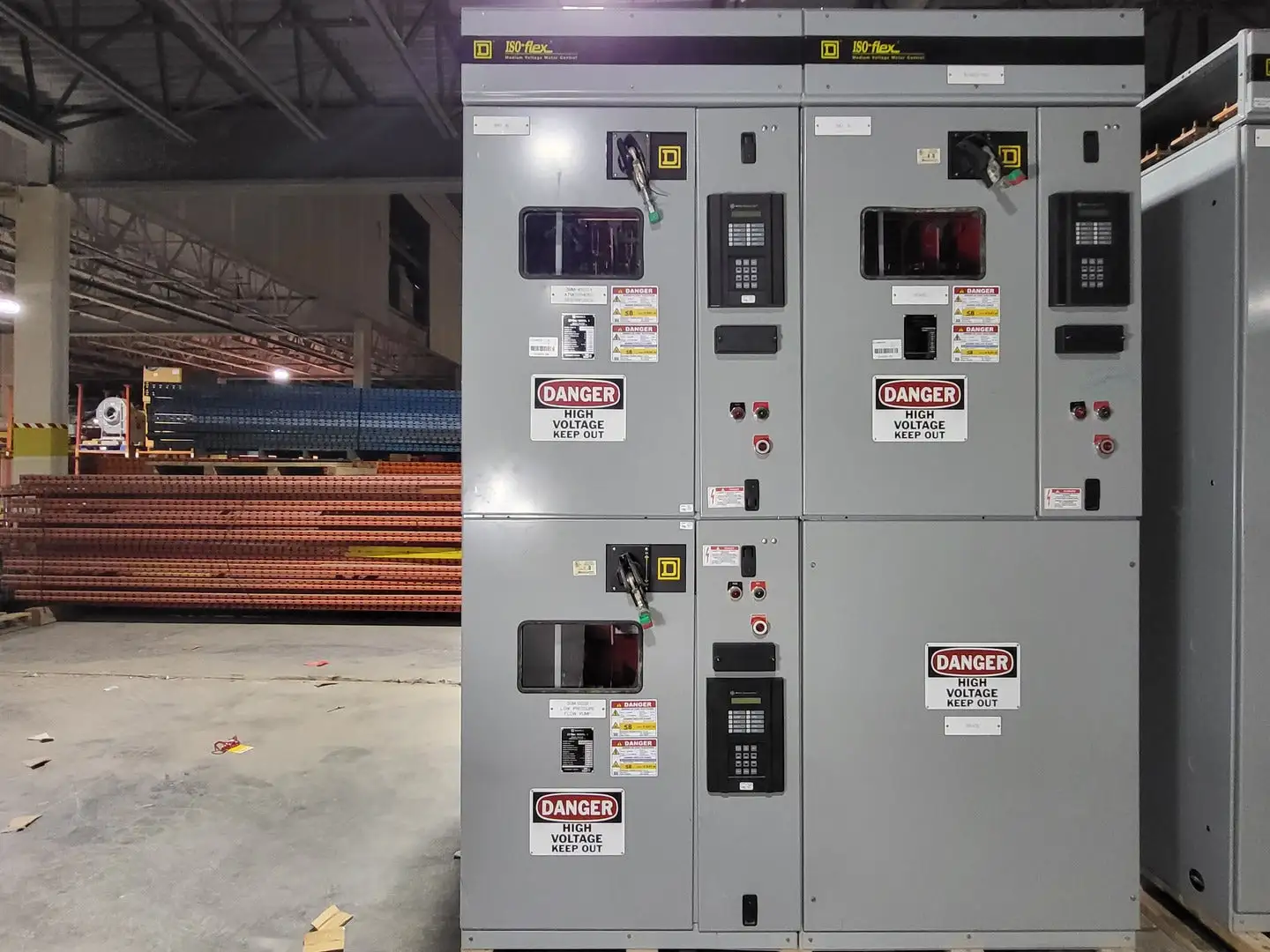

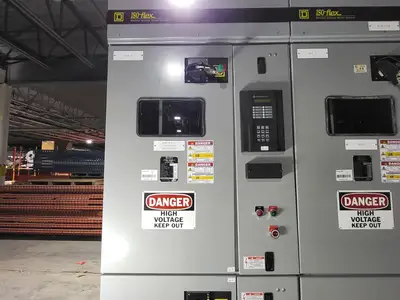

Equipment Type: Medium Voltage Motor Control Center (MV MCC)
Installation: Indoor
Year: 2002
Phase: 3
Frequency: 60 Hz
Electrical Ratings
System Voltage: 4.16 kV (5 kV Class)
Horizontal Bus Rating: 2000 A
Interrupting Rating: 50 kA Symmetrical
Insulation Level (BIL): 60 kV
Configuration
Number of Vertical Sections: 2
Number of Motor Starters: 3

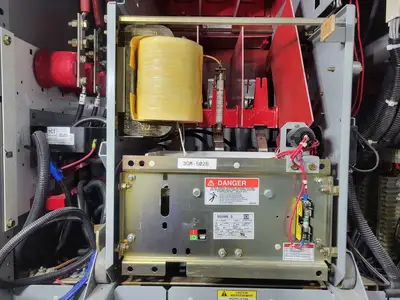

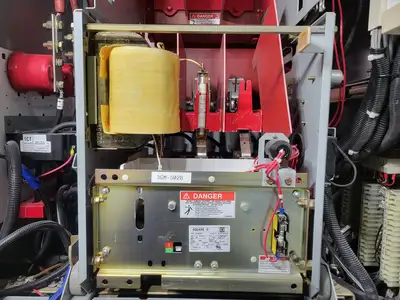

Starter Type: Fused Vacuum Contactor
Controller Class: E2
Protection Relays: SEL
Control Voltage: 120V
Construction
Metal-Clad Enclosure
Front Access

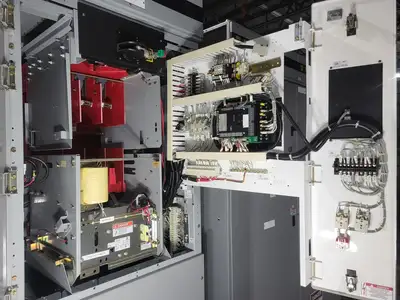

Drawout Starter Cells

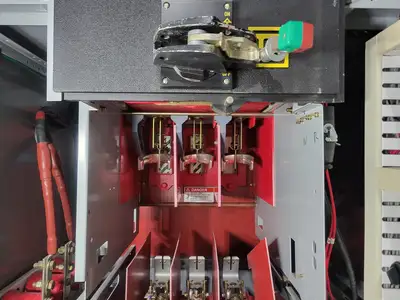

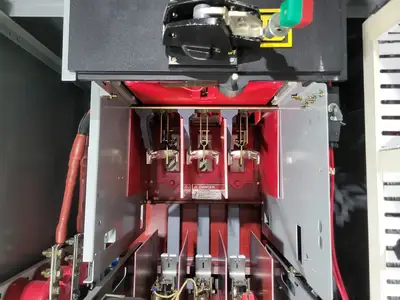

Primary Current Limiting Fuses
