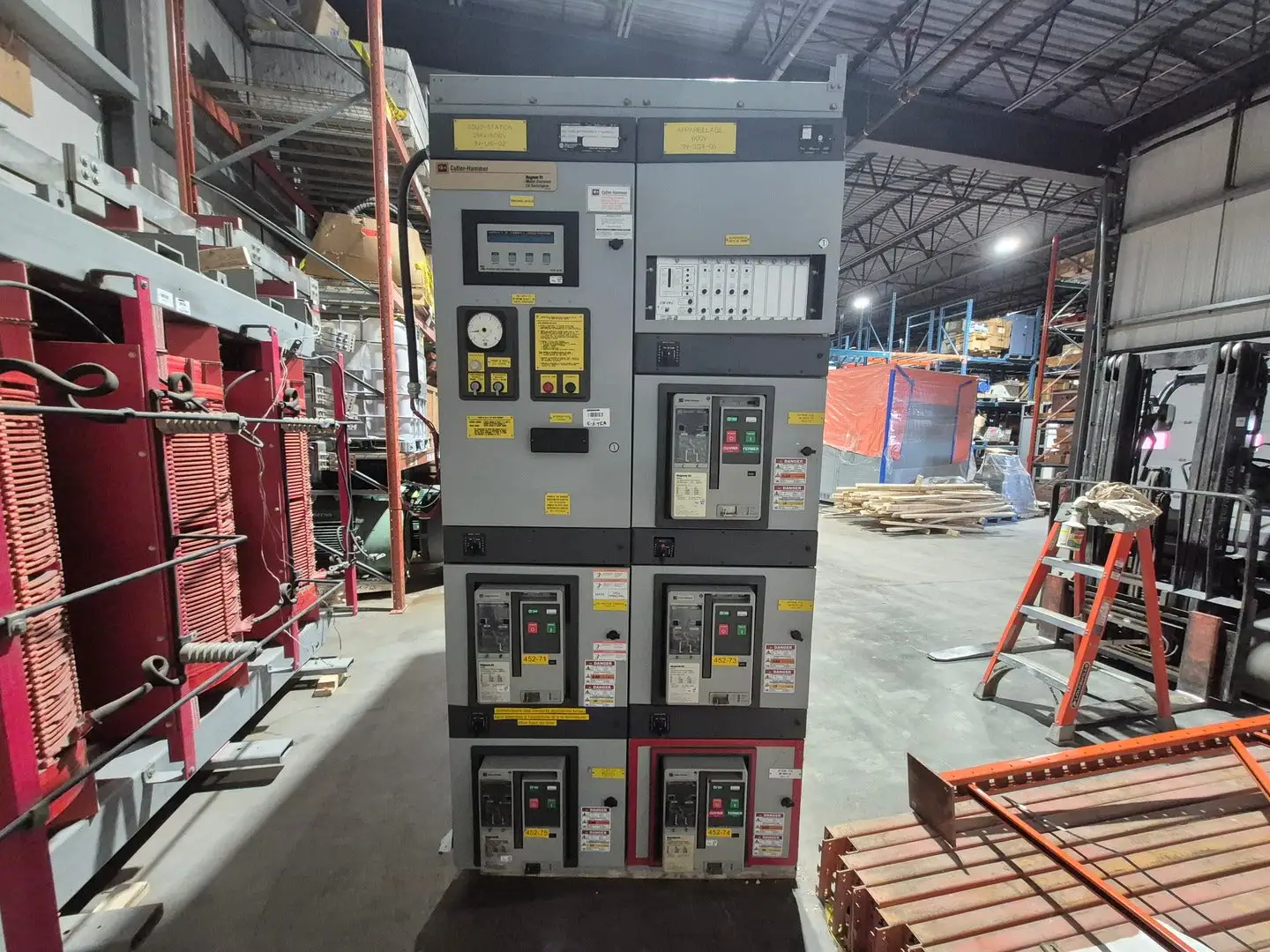

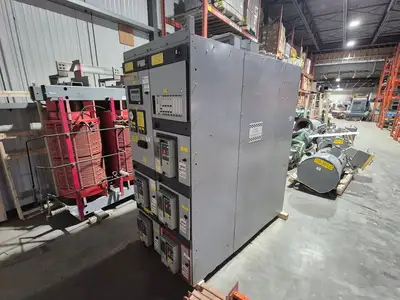

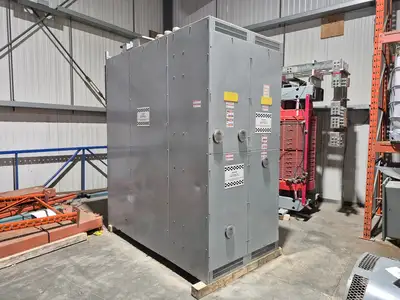

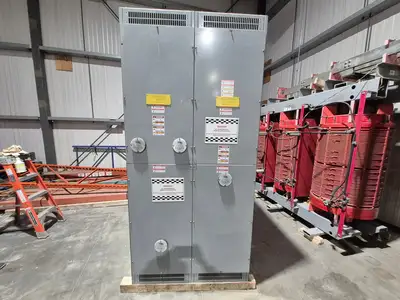

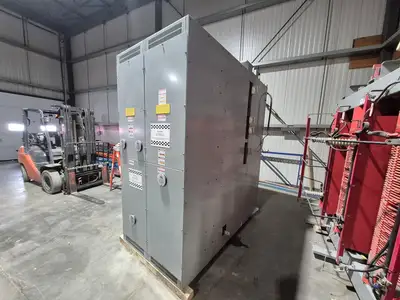

Magnum DS 600V 3200A 65kA Switchgear Lineup w/ MDS616 & MDS632 Breakers

System Voltage: 600V
Phase: 3 Phase
Frequency: 60 Hz
Maximum Bus Rating: 3200 Amps
Short Circuit Rating: 65kA
Short Time Rating: 65kA
Insulation Level (BIL): 2.2 kV
CSA Standard: CSA C22.2 No. 31

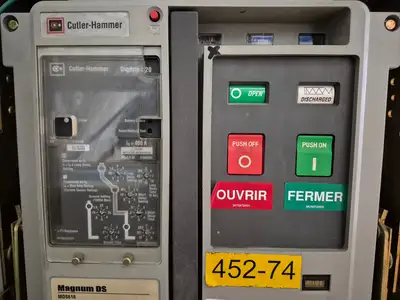

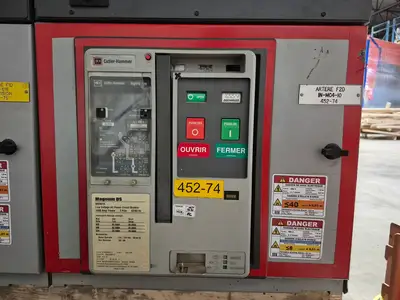

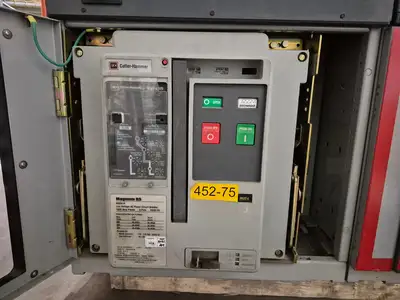

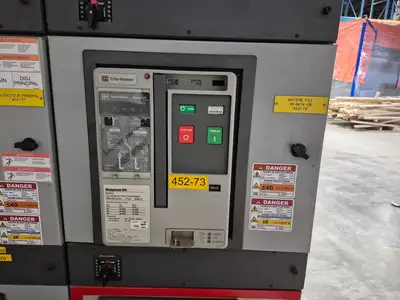

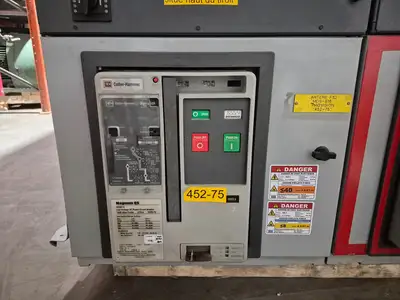

Main Breakers Included:
Breaker 1 - 3 qty
Model: MDS616
Frame Size: 1600 Amp
Poles: 3
Interrupting Rating: 65kA @ 600V

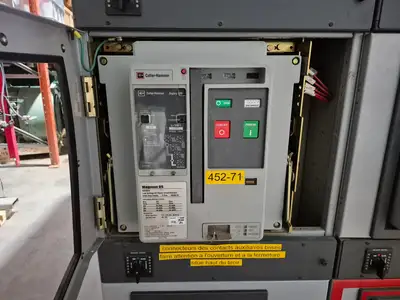

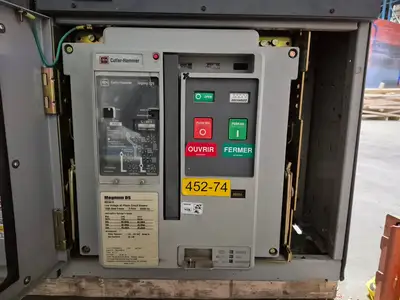

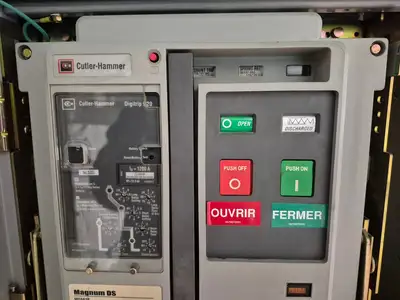

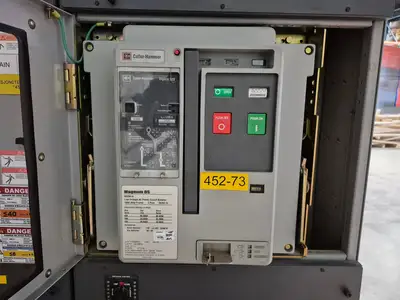

Type: Draw-Out Air Circuit Breaker
Motor Operator: 110-125 VAC
Auxiliary Switches: 4A / 4B
Breaker 2 - 1 qty
Model: MDS632
Frame Size: 3200 Amp
Poles: 3
Interrupting Rating: 65kA @ 600V
Type: Draw-Out Air Circuit Breaker
Motor Operator: 110-125 VAC
Auxiliary Switches: 4A / 4B
Features:
Draw-out breaker design

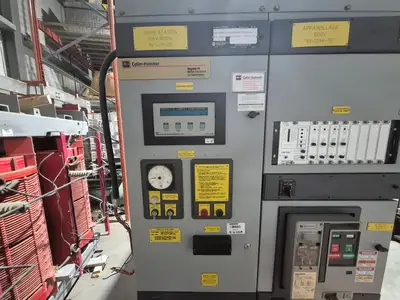

Ground fault monitoring section

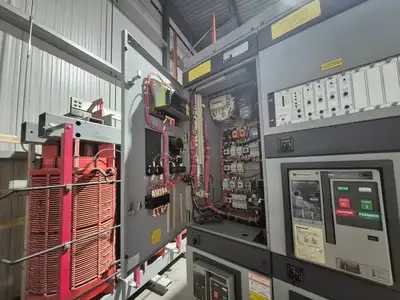

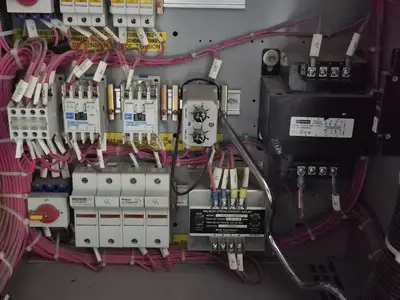

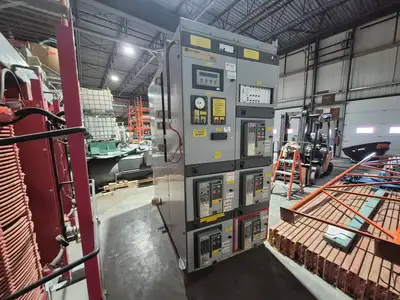

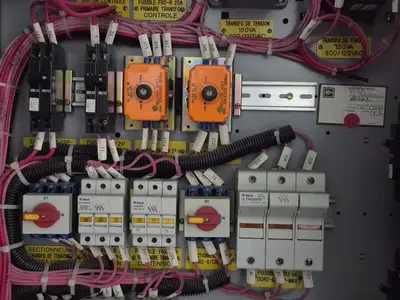

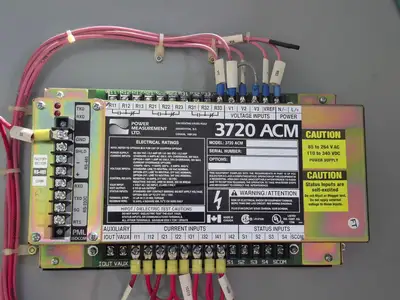

Metering and control section
Breaker control selector switch

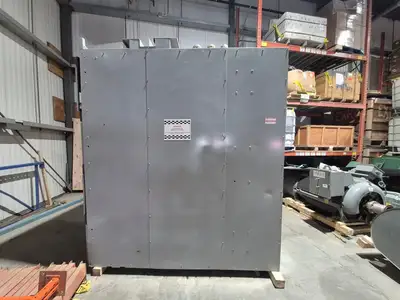

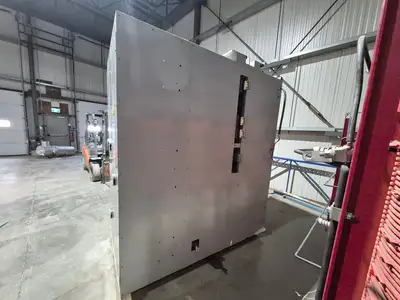

Industrial enclosure construction
Front-access configuration
Application:
Industrial plants
Mining facilities
Substations
Commercial buildings
Heavy manufacturing
