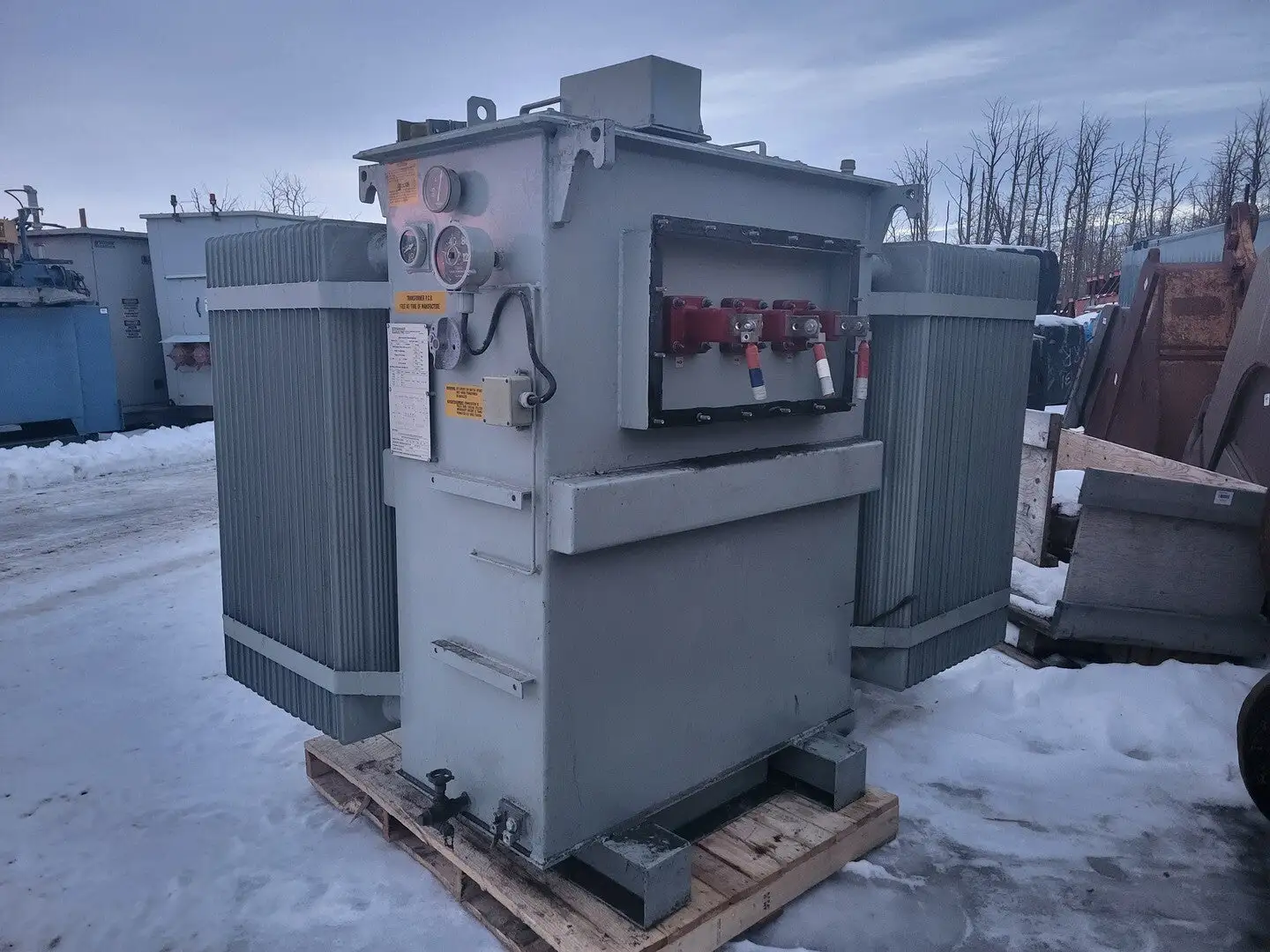

1500/2000 kVA Silicone Filled Transformer, 13800V Pri., 600V Sec.

kVA: 1500 kVA
Primary Voltage: 13800 volts
Secondary Voltage: 600 volts
Phase: 3-phase
Transformer Type: Pad Mounted Transformer
Auto VS Isolation: Isolation
Oil vs Dry: Oil
LNAN Cooling kVA Rating: 1500
LNAF Cooling kVA Rating: 2000
Impedance at 85 deg C: 4.9%
Oil: Silicone
Volume: 810 L
Tank Pressure: +8 PSI / -14.7 PSI
Insulation Level: HV 110 kV // LV 45 kV
Max. Temperature Rise: 55 / 65 deg C
Winding Material: Copper
Note: This transformer was P.C.B Free at time of manufacture
