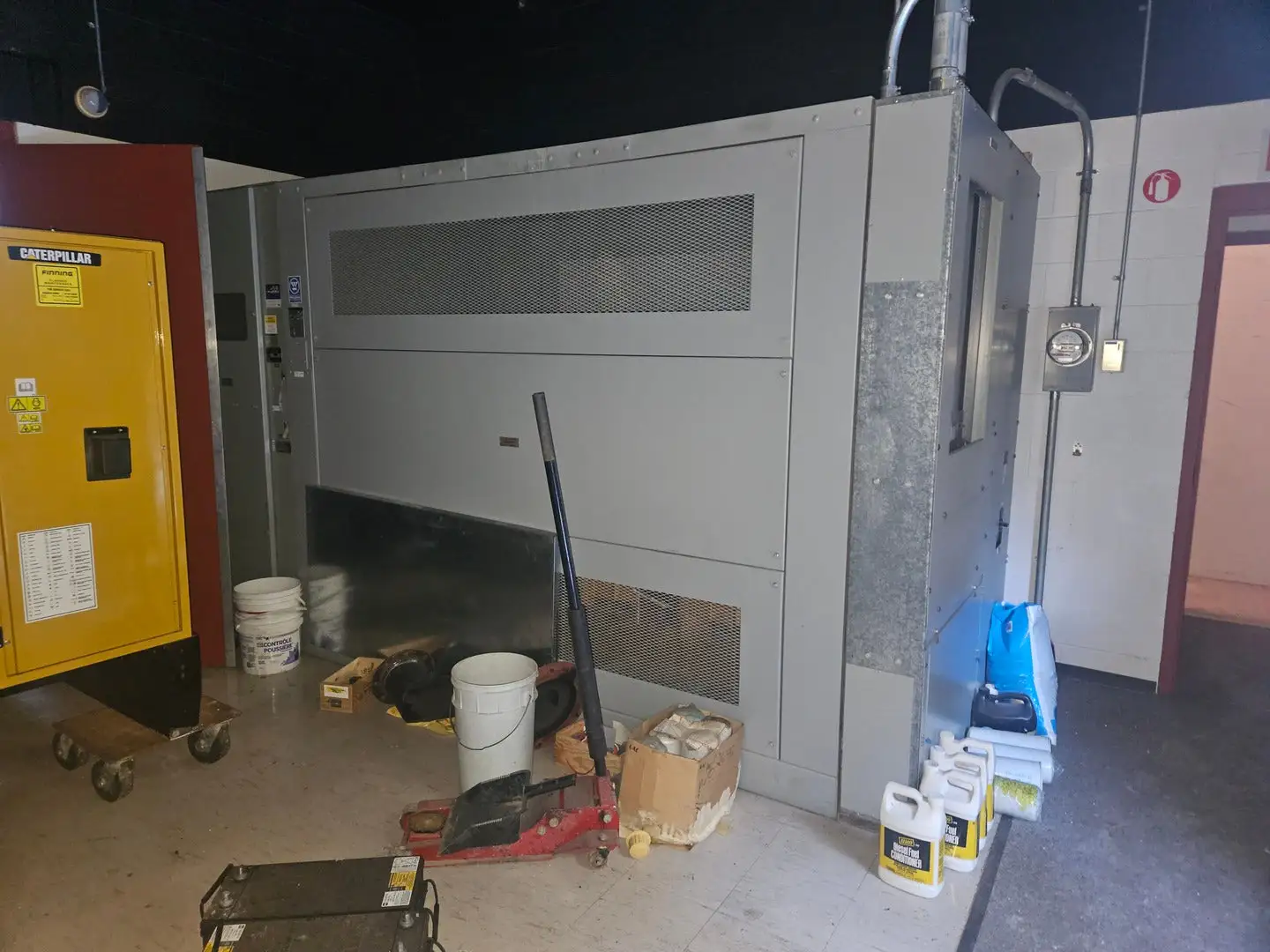

1000 kVA Substation Transformer, 12470 Volt Pri., 600Y/346 Volt Sec.

kVA: 1000 kVA
Primary Voltage: 12470 volts
Secondary Voltage: 600/347 volts
Phase: 3-phase
Transformer Type: Substation Transformer
Auto VS Isolation: Isolation
Oil vs Dry: Dry
Main Bus Amps: 1200 A
Transformer
Serial: 82TSE997
Cooling: ANN
Temp. Rise: 150 deg C
Weight: 7625 lbs
Load Interrupter Switch
Rated Volts: 13.8 kV
Max Design: 15 kV
Fault Close: 61 kA
Impulse Withstand: 95 kV
Momentary: 80 kA
Interrupt Current: 600 A
