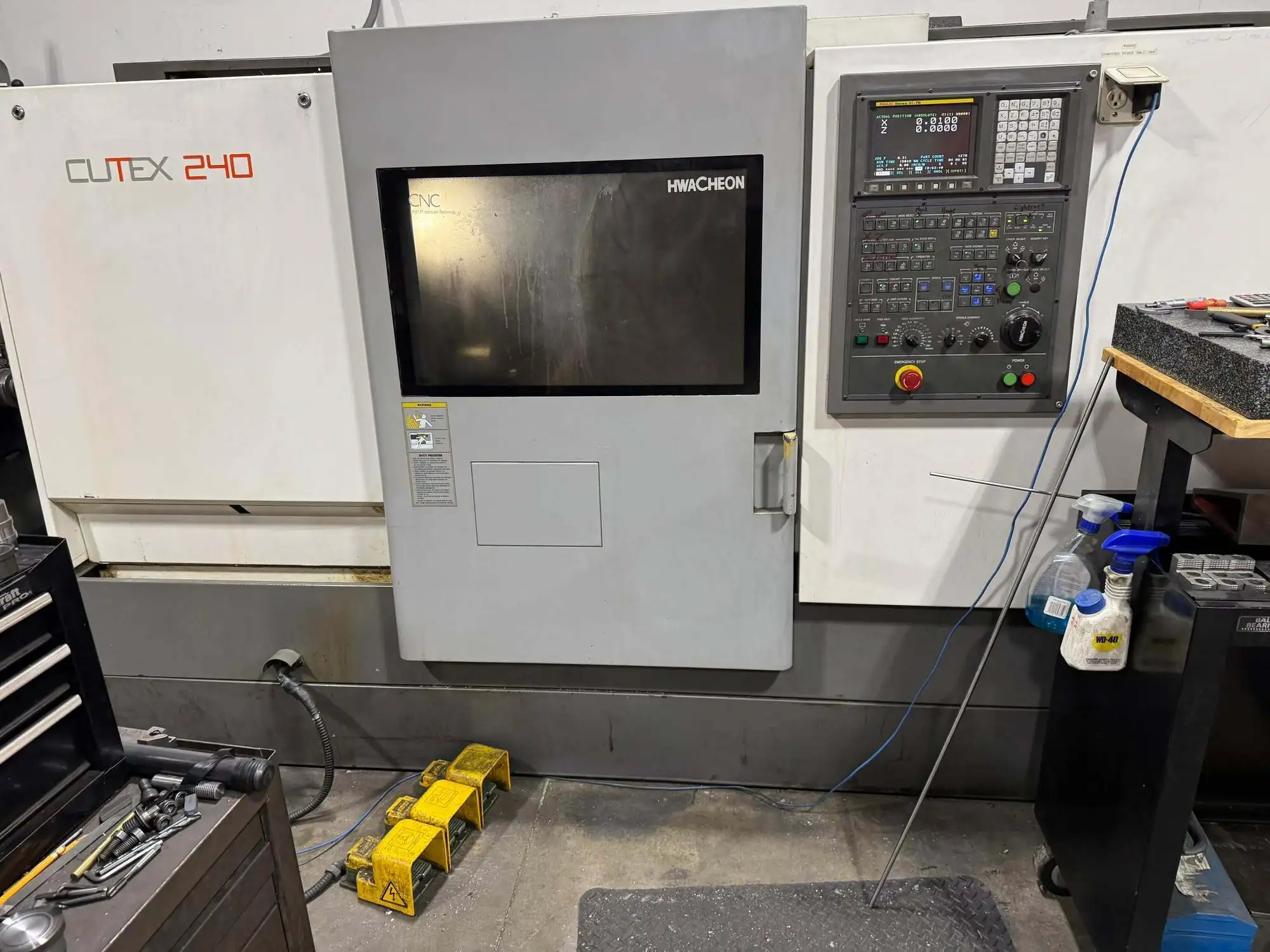

CUTEX-240 maintains high precision even during long-term processing by minimizing thermal displacement based on a rigid construction and compact structure.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
| size | 8" Chuck | 8" Chuck |
| Swing | 19.7" | 500.38 mm |
| Machining Length | 15.7" | 398.78 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 13.8" | 350.52 mm |
| Dimensions | 128″ x 72″ x 93″ | 128″ x 72″ x 93″ |
| Weight | 9,300 lbs | 9,300 lbs |
Spindle Bore: 2.95″
Bar Capacity: 2.56″
Max Swing: 22.84″
Machining Length: 26.14″
Turning Diameter: 13.98″
Turret Tools: 10 Stations
Fanuc Series Oi-TB CNC Control
Tooling Included
