USED HYDMECH H-28A-120

Brand – HYDMECH Model – H-28A-120 Type – Horizontal Band Saws Year – 2017 Condition – Used – Excellent

Rect-Cap (H): 24″
Rect-Cap (W): 28″
Rounds-Cap: 28″
Power: 10 hp
Type (Auto, Manual, Semi): Auto
Blade Width: 2″
Dimensions: 127” x 192” x 92”
Weight: 16,000 lbs.
Rectangular (h x w): 24″ x 28″ Round: 25″ Square: 24″

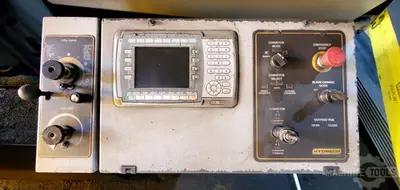

6° canted head Split front vise (retractable datum vise available on request at no charge) Shuttle with automatic multi-indexing up to 120″ in a single stroke with automatic kerf compensation, powered by a rack and pinion servo drive Steel guide arms, with idler side guide arm mechanically linked to front vise movable jaw for proper spacing Full capacity hydraulic overhead bundling 10 HP VFD, true direct blade drive (no belts/pulleys) Robust steel base Full capacity, full stroking hydraulic vises with hydraulic positive down feed High resolution feed rate valve for constant feed rate when cutting special alloys Blade chamber separates material from cut part Cast iron band wheels 7″ color touch screen HMI with Mitsubishi FX5U PLC, interactive control with operator messages, programmable head up position, built-in diagnostics, simple software updates, 999 jobs, 10 jobs in queue Replaceable blade brush Automatic chip removal auger Out of stock switch Easy access electrical panel and hydraulics Blade breakage switch Hydraulic band tensioning with digital readout 5 HP hydraulic pump provides system pressure Hydraulic carbide guide tensioning Hardened, replaceable wear plates Safety door interlocks Flood coolant with wash down hose Work light Laser light Variable vise pressure
